Service Point Locations

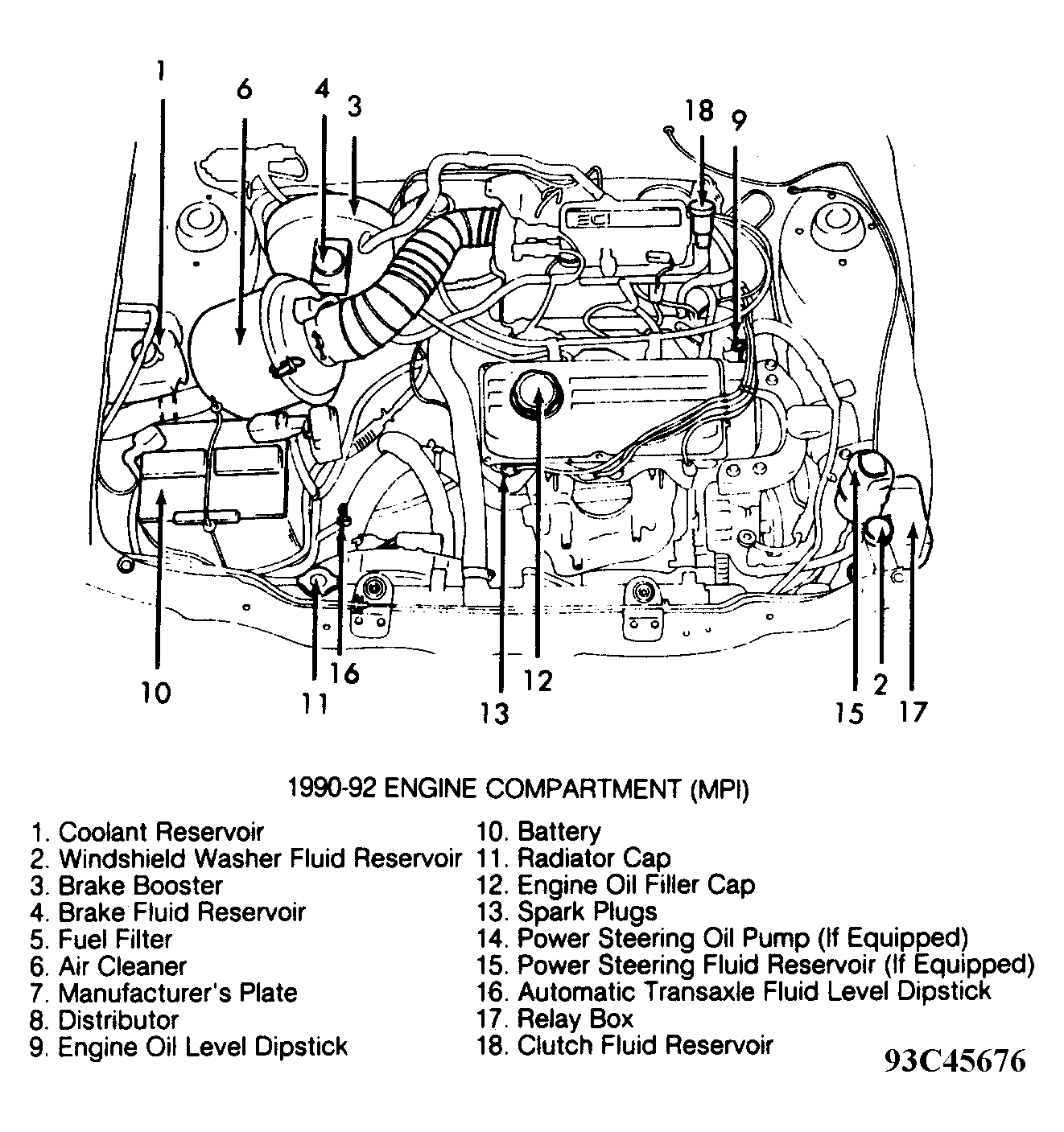

Fig 1: Service Point Locations (1990-92 MPI Engine)

Courtesy of HYUNDAI MOTOR CO.

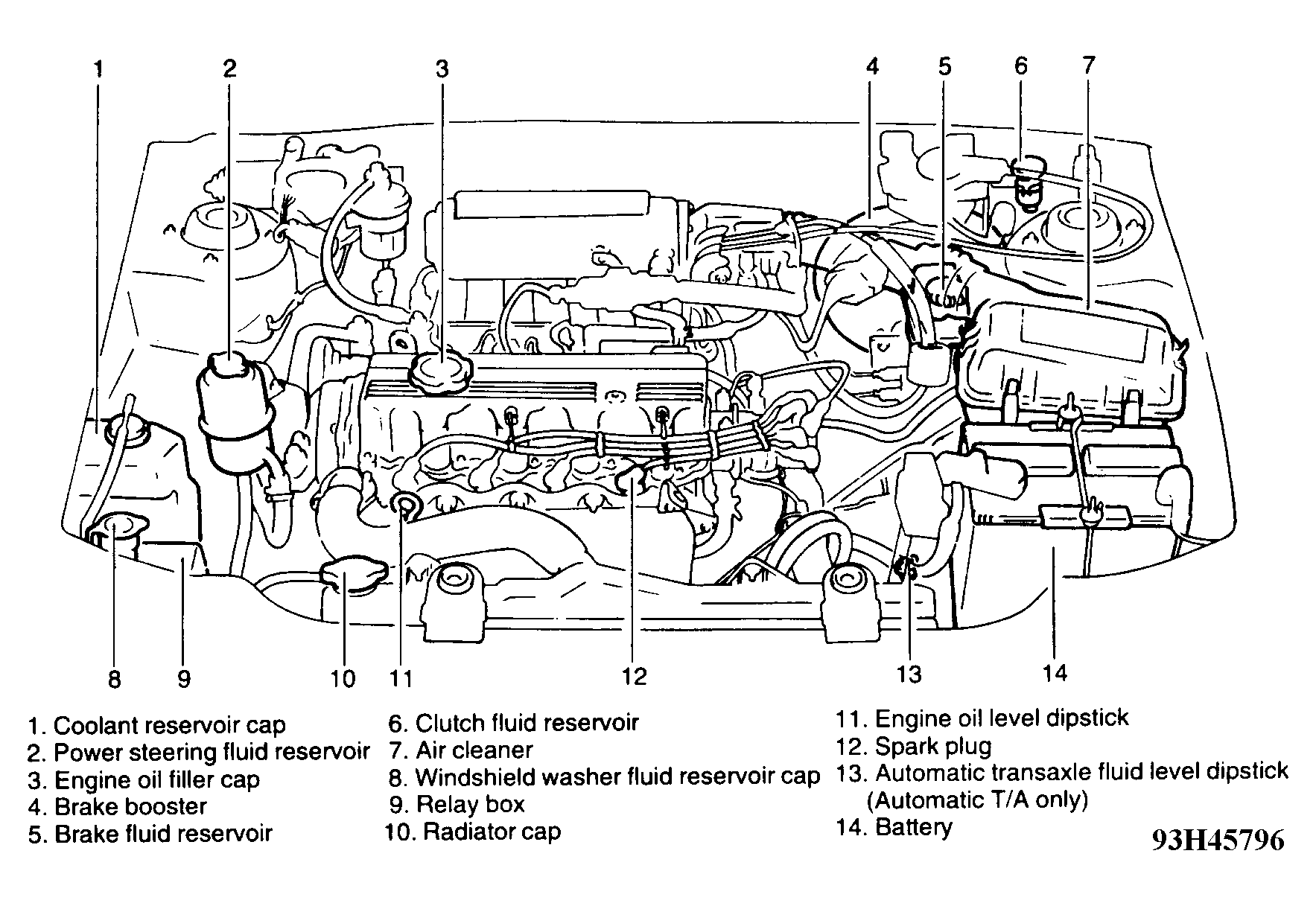

Fig 2: Service Point Locations (1993-95 Scoupe Turbo)

Courtesy of HYUNDAI MOTOR CO.

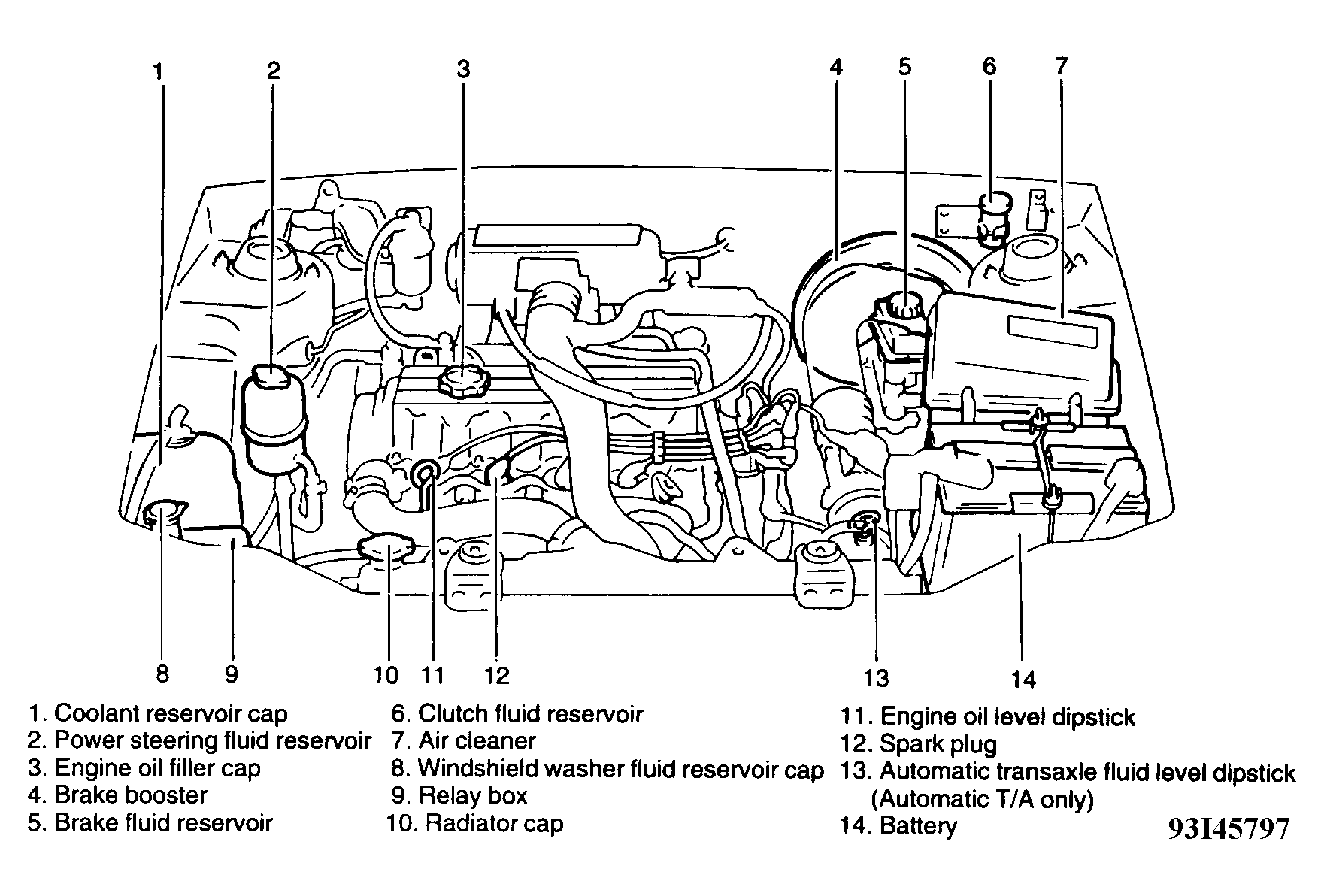

Fig 3: Service Point Locations (1993-95 Scoupe Non-Turbo)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Service Point Locations (1993-94 Excel)

Courtesy of HYUNDAI MOTOR CO.

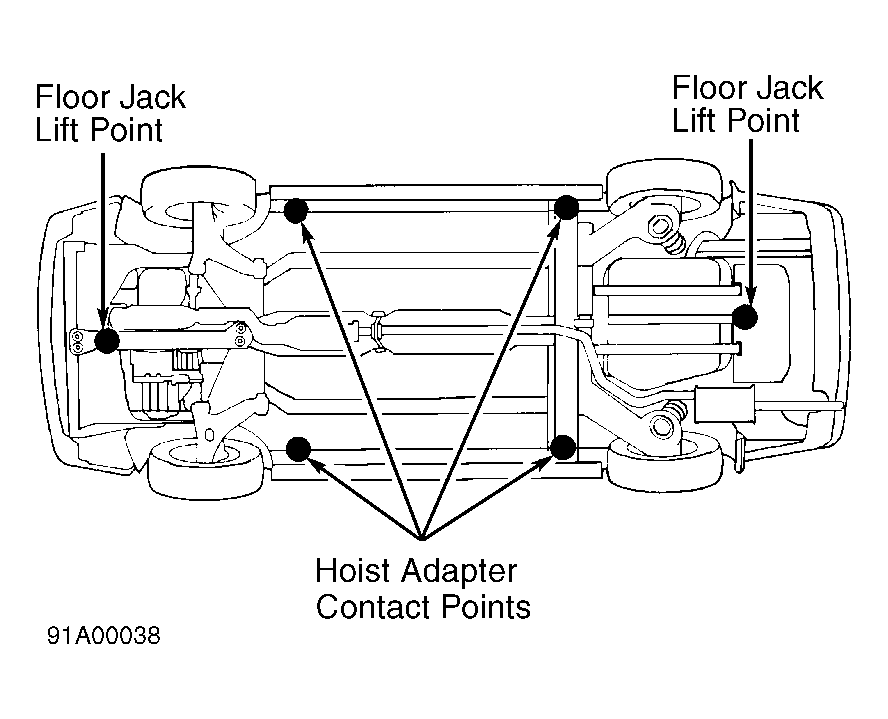

Fig 5: Lift Point Locations

Courtesy of HYUNDAI MOTOR CO.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the STEERING AND SUSPENSION section.
