Vehicle Speed Sensor

Vehicle speed sensor testing requires use of multi-use tester. See TESTS W/CODES article.

OXYGEN SENSOR (O2S) TEST

Condition

Specification

Race Engine

⁽¹⁾

Sensor At 752°F (400°C)

⁽²⁾ 30 Or More Ohms

⁽¹⁾	No information available on Scoupe model.

⁽²⁾	On Scoupe, measure between terminals No. 1 and 2.

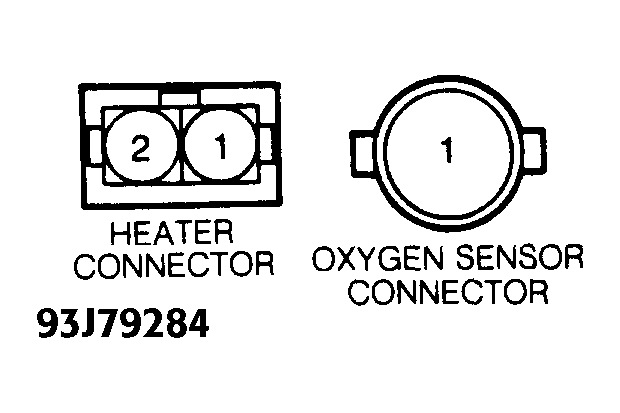

Fig 1: Identifying Oxygen Sensor Connectors

Courtesy of HYUNDAI MOTOR CO.
