Engine Code Location

ENGINE IDENTIFICATION NUMBER ⁽¹⁾

Application

Engine ID

Accent

K

Elantra

1.6L

R

1.8L

N

Scoupe

E

Sonata

2.0L

P

3.0L

T

⁽¹⁾	Fourth digit of engine identification number

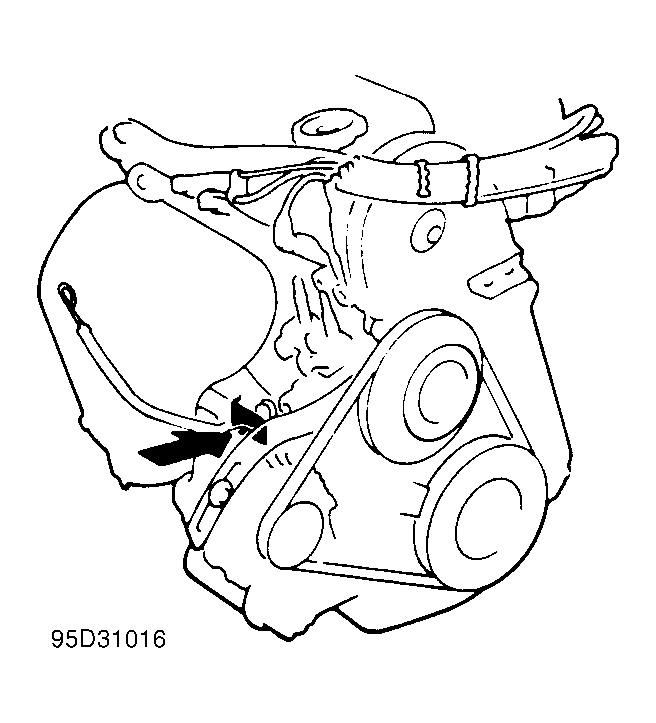

Fig 1: 4-Cylinder Engine (Sonata & Elantra)

G95D31016

Courtesy of HYUNDAI MOTOR CO.

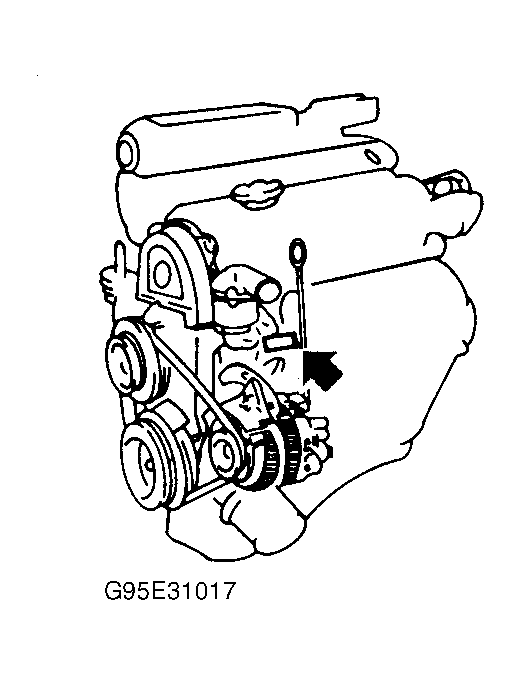

Fig 2: 4-Cylinder Engine (Accent & Scoupe)

G95E31017

Courtesy of HYUNDAI MOTOR CO.

Fig 3: V6 Engine (Sonata)

G90F04816

Courtesy of HYUNDAI MOTOR CO.
