Fuel Pump Test

Turn ignition off. Apply battery voltage to fuel pump drive terminal (White/Black wire on Accent; Yellow wire on Scoupe). See Fig 1 , Figure , Figure or Figure . Remove fuel tank cap and listen for fuel pump operation. Pinch fuel hoses by hand and ensure fuel pressure can be felt.

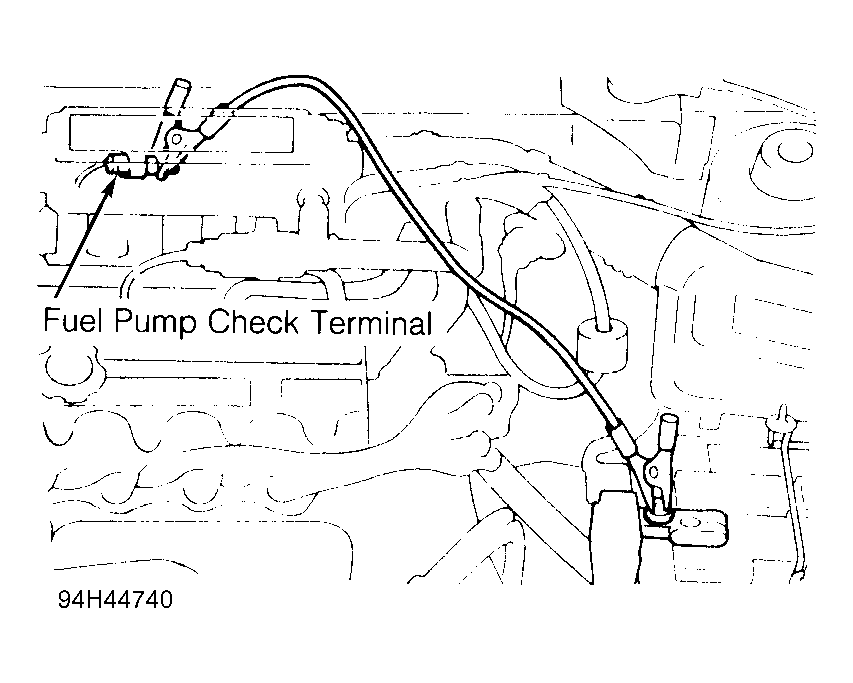

Fig 1: Jumping Fuel Pump Drive Connector (Accent & Scoupe)

Courtesy of HYUNDAI MOTOR CO.
