SFI Control Relay Test
CAUTION:
When applying direct battery voltage, ensure voltage is applied to correct terminal; otherwise, relay damage could result.

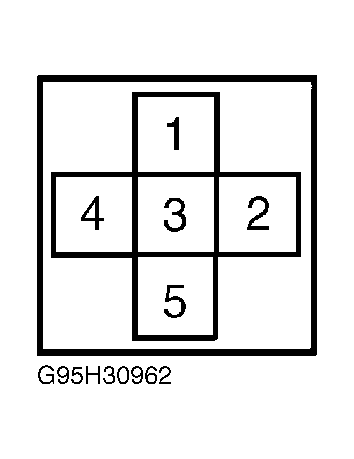

- Remove control relay, located under left side of dashboard, near instrument cluster. Connect 12-volt battery across relay terminal No. 2 (negative) and terminal No. 4 (positive). See Fig 1 . Using ohmmeter, check continuity between terminals No. 1 and 5. Continuity should exist until voltage is disconnected.
- Reconnect battery voltage between terminals No. 2 and 4. Check continuity between terminals No. 3 and 5. Continuity should exist until voltage is disconnected. Replace relay if it fails any test.
