Power Circuits

Turn ignition on. Check for battery voltage at ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of SFI control relay. See RELAYS  .

GROUND TERMINAL IDENTIFICATION

Application (1) ECM Terminal No.
Accent & Scoupe 19

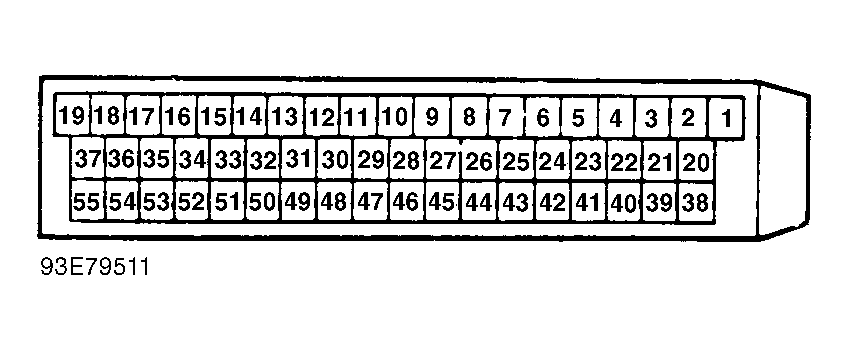

(1) See Figure .
POWER TERMINAL IDENTIFICATION

Application (1) ECM Terminal No.
Accent & Scoupe 18 & (2) 42
(1) See Figure .
(2) Manual transmission only.
