Connector Identification

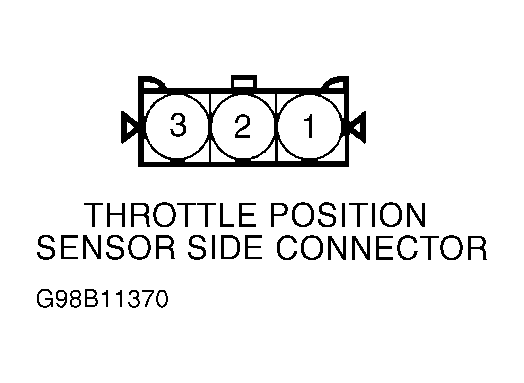

Fig 1: TP Sensor Connector Terminals (Accent, Elantra & Tiburon)
G98B11370Courtesy of HYUNDAI MOTOR CO.

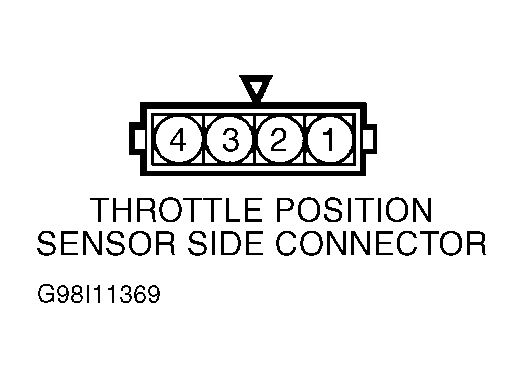

Fig 2: TP Sensor Connector Terminals (Sonata 2.0L & 3.0L)
G98I11369Courtesy of HYUNDAI MOTOR CO.
