Fuel Pump Test

Turn ignition off. Apply battery voltage to fuel pump check terminal connector. See FUEL PUMP CHECK TERMINAL WIRE IDENTIFICATION table. See Fig 1, Fig 2 or Fig 3 . Remove fuel tank cap and listen for fuel pump operation. Pinch fuel hoses by hand and ensure fuel pressure can be felt.

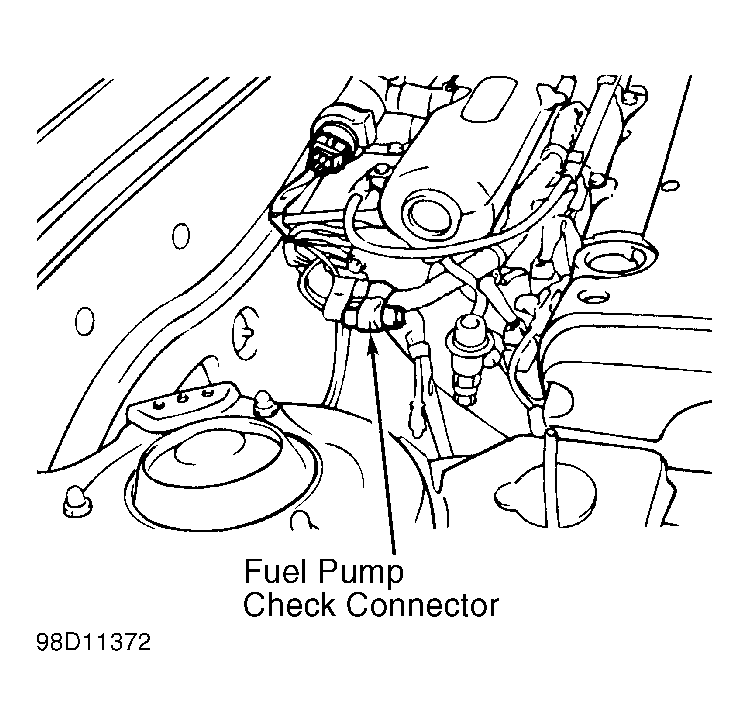

Fig 1: Locating Fuel Pump Check Terminal (Accent)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Locating Fuel Pump Check Terminal (Elantra & Tiburon)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Locating Fuel Pump Check Terminal (Sonata)

Courtesy of HYUNDAI MOTOR CO.
