Connector Identification: Overview

Fig 1: Identifying 2-Pin Female Connector Terminals
G98H11376Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying 3-Pin Inline Female Connector Terminals
G98E11381Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying 3-Pin Inline Male Connector Terminals
G98J11386Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying 3-Pin Female Connector Terminals
G98D11380Courtesy of HYUNDAI MOTOR CO.
Fig 5: Identifying 3-Pin CKP Female Connector Terminals
G98J11378Courtesy of HYUNDAI MOTOR CO.
Fig 6: Identifying 4-Pin Inline Female Connector Terminals
G98I11385Courtesy of HYUNDAI MOTOR CO.
Fig 7: Identifying 4-Pin Square Female Connector Terminals
G98F11382Courtesy of HYUNDAI MOTOR CO.
Fig 8: Identifying 4-Pin Square Male Connector Terminals
G98G11383Courtesy of HYUNDAI MOTOR CO.

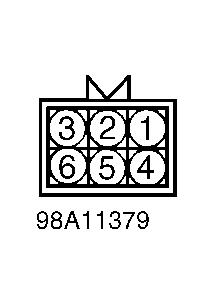

Fig 9: Identifying 6-Pin Square Female Connector Terminals
G98A11379Courtesy of HYUNDAI MOTOR CO.

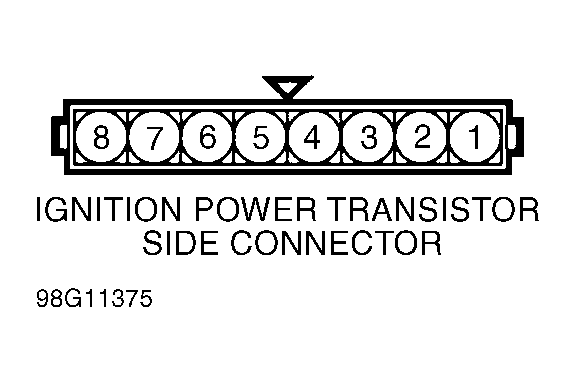

Fig 10: Identifying 8-Pin Inline Female Connector Terminals
G98G11375Courtesy of HYUNDAI MOTOR CO.
Fig 11: Identifying 12-Pin Square Female Connector Terminals
G98B11388Courtesy of HYUNDAI MOTOR CO.
Fig 12: Identifying 12-Pin Female Connector Terminals
G95F31166Courtesy of HYUNDAI MOTOR CO.
Fig 13: Identifying Vehicle Speed Sensor Male Connector Terminals
G98C11389Courtesy of HYUNDAI MOTOR CO.

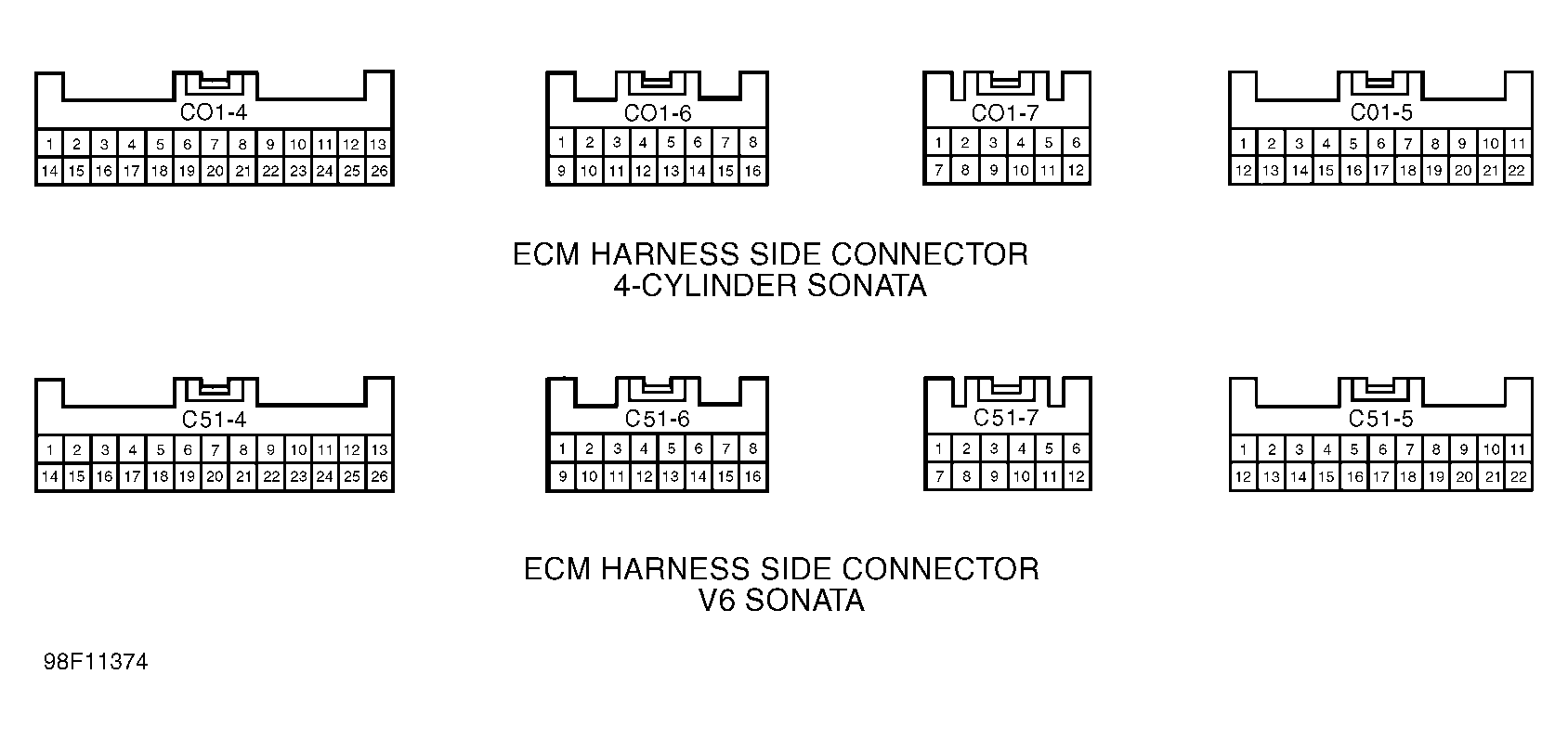

Fig 14: Identifying ECM Male Connector Terminals
G98F11374Courtesy of HYUNDAI MOTOR CO.
Fig 15: Identifying ECM Female Connector Terminals
G98A11387Courtesy of HYUNDAI MOTOR CO.
