Power Window Main Switch: Tiburon

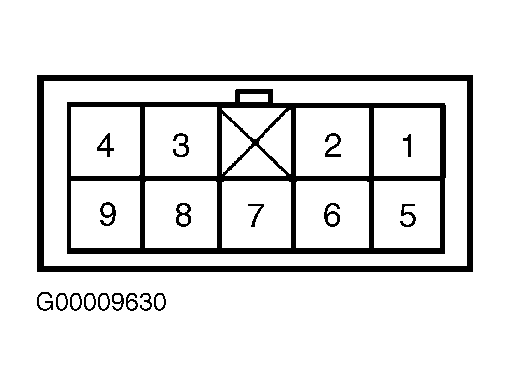

Remove main switch. Check continuity between specified terminals with switch in specified position. See MAIN SWITCH CONTINUITY (TIBURON) table. See Figure. If continuity is not as specified, replace main switch.
MAIN SWITCH CONTINUITY (TIBURON)
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Window | ||
| Up | 2 & 8; 4 & 9 | |
| Neutral | 2, 8 & 9 | |
| Down | 2 & 9; 4 & 8 | |
| Right Window | ||
| Up | 2 & 6; 4 & 7 | |
| Neutral | 2, 6 & 7 | |
| Down | 2 & 7; 4 & 6 | |
