Diode Test

Using ohmmeter, check continuity of each diode, in both directions. See STEP 3 in illustration. See Fig 1-Fig 3 . Continuity should exist in only one direction. If continuity of any diode is not as specified, replace rectifier assembly.

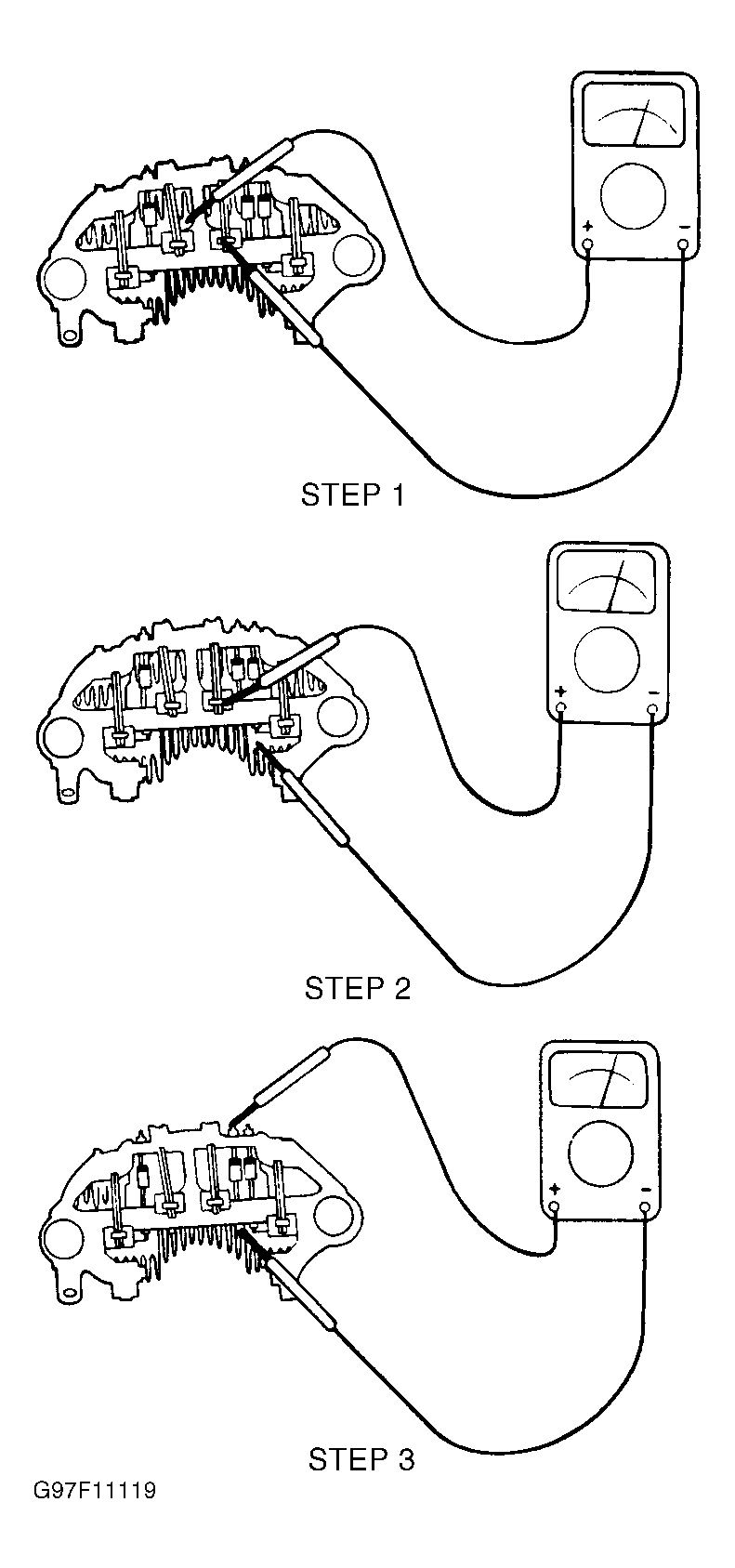

Fig 1: Testing Rectifier (Accent)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Testing Rectifier (Elantra & Tiburon)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Testing Rectifier (Sonata)

Courtesy of HYUNDAI MOTOR CO.
