Connector Identification

Harness connector terminal identification illustrations are generic and categorized by the number of terminals. All connector views are from the component side unless otherwise specified. For harness connector terminal identification, see appropriate HARNESS CONNECTOR IDENTIFICATION DIRECTORY table.

HARNESS CONNECTOR IDENTIFICATION DIRECTORY (ACCENT)

Component Harness Side Component Side
Acceleration Sensor N/A See Fig 1
Camshaft Position (CMP) Sensor See Fig 3 See Fig 2
Crankshaft Position (CKP) Sensor N/A See Fig 1
Diagnosis Module For Tank Leakage (DM-TL) N/A N/A
ECM Connector See Fig 14 See Fig 14
Engine Coolant Temperature (ECT) Sensor See Fig 3 See Fig 2
EVAP Purge Control Solenoid N/A See Fig 1
Fuel Injector N/A See Fig 1
Fuel Tank Pressure (FTP) Sensor See Fig 3 See Fig 2
Heated Oxygen Sensor (HO2S) See Fig 7 See Fig 8
Idle Speed Control (ISC) Actuator See Fig 3 See Fig 2
Ignition Coil N/A See Fig 1
Intake Air Temperature (IAT) Sensor See Fig 9 N/A
Knock Sensor (KS) N/A See Fig 1
Mass Airflow (MAF) Sensor See Fig 9 N/A
Throttle Position (TP) Sensor See Fig 3 See Fig 2
Transaxle Range Switch N/A See Fig 11
Vehicle Speed Sensor (VSS) See Fig 12 See Fig 12
HARNESS CONNECTOR IDENTIFICATION DIRECTORY (ELANTRA & TIBURON)

Component Harness Side Component Side
Acceleration Sensor See Fig 3 See Fig 2
Camshaft Position (CMP) Sensor See Fig 3 See Fig 2
Canister Close (CC) Valve N/A See Fig 1
Crankshaft Position (CKP) Sensor See Fig 3 See Fig 2
ECM Connector See Fig 15 N/A
Engine Coolant Temperature (ECT) Sensor N/A See Fig 1
EVAP Purge Control Solenoid N/A See Fig 1
Fuel Injector N/A See Fig 1
Fuel Tank Pressure (FTP) Sensor See Fig 3 See Fig 2
Heated Oxygen Sensor (HO2S) See Fig 7 See Fig 8
Idle Speed Control (ISC) Actuator See Fig 3 See Fig 2
Ignition Coil See Fig 3 See Fig 2
Intake Air Temperature (IAT) Sensor N/A See Fig 1
Knock Sensor (KS) See Fig 3 See Fig 2
Mass Airflow (MAF) Sensor N/A See Fig 6
Throttle Position (TP) Sensor See Fig 3 See Fig 2
Transaxle Range Switch (A/T) N/A See Fig 11
Vehicle Speed Sensor (VSS) See Fig 13 N/A
HARNESS CONNECTOR IDENTIFICATION DIRECTORY (SONATA)

Component Harness Side Component Side
Camshaft Position (CMP) Sensor See Fig 2 See Fig 3
Canister Close (CC) Valve N/A See Fig 1
Crankshaft Position (CKP) Sensor
2.4L
See Fig 5		 See Fig 4
2.5L See Fig 2 See Fig 3
ECM Connector
2.4L A/T See Fig 16 N/A
2.4L M/T See Fig 17 N/A
2.5L See Fig 18 N/A
EGR Solenoid Valve
2.4L N/A See Fig 1
Engine Coolant Temperature (ECT) Sensor N/A See Fig 1
EVAP Purge Control Solenoid N/A See Fig 1
Fuel Injector N/A See Fig 1
Fuel Tank Pressure (FTP) Sensor See Fig 2 See Fig 3
Heated Oxygen Sensor (HO2S)
2.4L
California (Front & Rear) See Fig 7 See Fig 8
Federal (Front & Rear) See Fig 8 See Fig 7
2.5L (Front & Rear) See Fig 8 See Fig 7
Idle Speed Control (ISC) Actuator See Fig 3 See Fig 2
Ignition Coil
2.4L See Fig 3 See Fig 2
2.5L See Fig 8 See Fig 7
Intake Air Temperature (IAT) Sensor
2.4L See Fig 9 N/A
2.5L N/A See Fig 1
Knock Sensor (KS)
2.4L N/A See Fig 1
2.5L See Fig 3 See Fig 2
Mass Airflow (MAF) Sensor
2.4L See Fig 9 N/A
2.5L See Fig 3 See Fig 2
Manifold Absolute Pressure (MAP) Sensor N/A See Fig 6
Throttle Position (TP) Sensor
2.4L N/A (1) See Fig 6
2.5L See Fig 3 See Fig 2
Transaxle Range Switch (2.4L A/T) See Fig 10 N/A
Vehicle Speed Sensor (VSS) See Fig 3 See Fig 2
(1) Includes Idle Position Switch.
Fig 1: Identifying 2-Pin Connector Male Terminals
G98H11376Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying 3-Pin Connector Male Terminals
G98E11381Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying 3-Pin Connector Female Terminals
G98J11386Courtesy of HYUNDAI MOTOR CO.

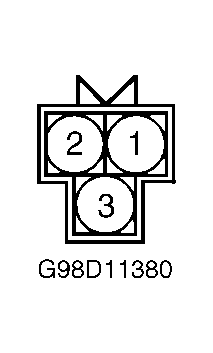

Fig 4: Identifying 3-Pin Connector Male Terminals
G98D11380Courtesy of HYUNDAI MOTOR CO.

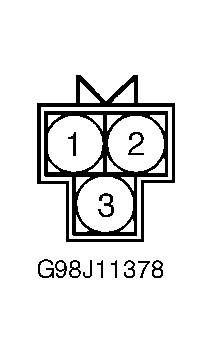

Fig 5: Identifying 3-Pin Connector Female Terminals
G98J11378Courtesy of HYUNDAI MOTOR CO.

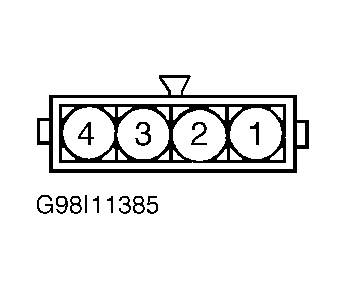

Fig 6: Identifying 4-Pin Connector Male Terminals
G98I11385Courtesy of HYUNDAI MOTOR CO.

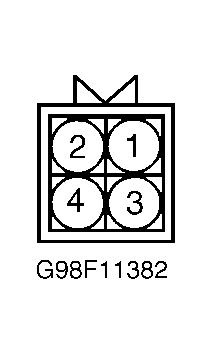

Fig 7: Identifying 4-Pin Connector Male Terminals
G98F11382Courtesy of HYUNDAI MOTOR CO.

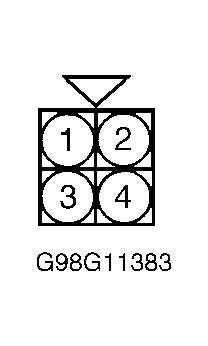

Fig 8: Identifying 4-Pin Connector Female Terminals
G98G11383Courtesy of HYUNDAI MOTOR CO.

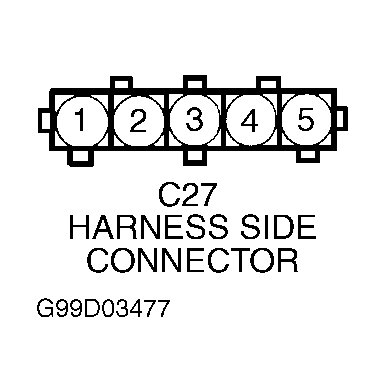

Fig 9: Identifying 5-Pin Harness Side Connector Terminals
G99D03477Courtesy of HYUNDAI MOTOR CO.

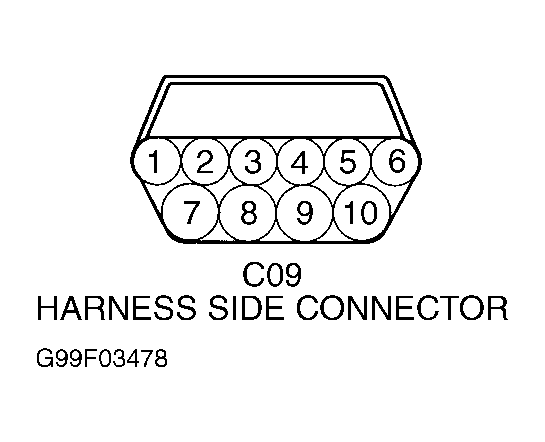

Fig 10: Identifying 10-Pin Transaxle Range Switch Connector Female Terminals
G99F03478Courtesy of HYUNDAI MOTOR CO.

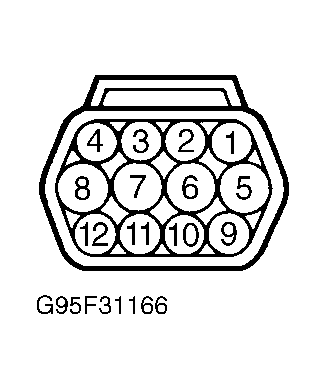

Fig 11: Identifying 12-Pin Connector Terminals
G95F31166Courtesy of HYUNDAI MOTOR CO.

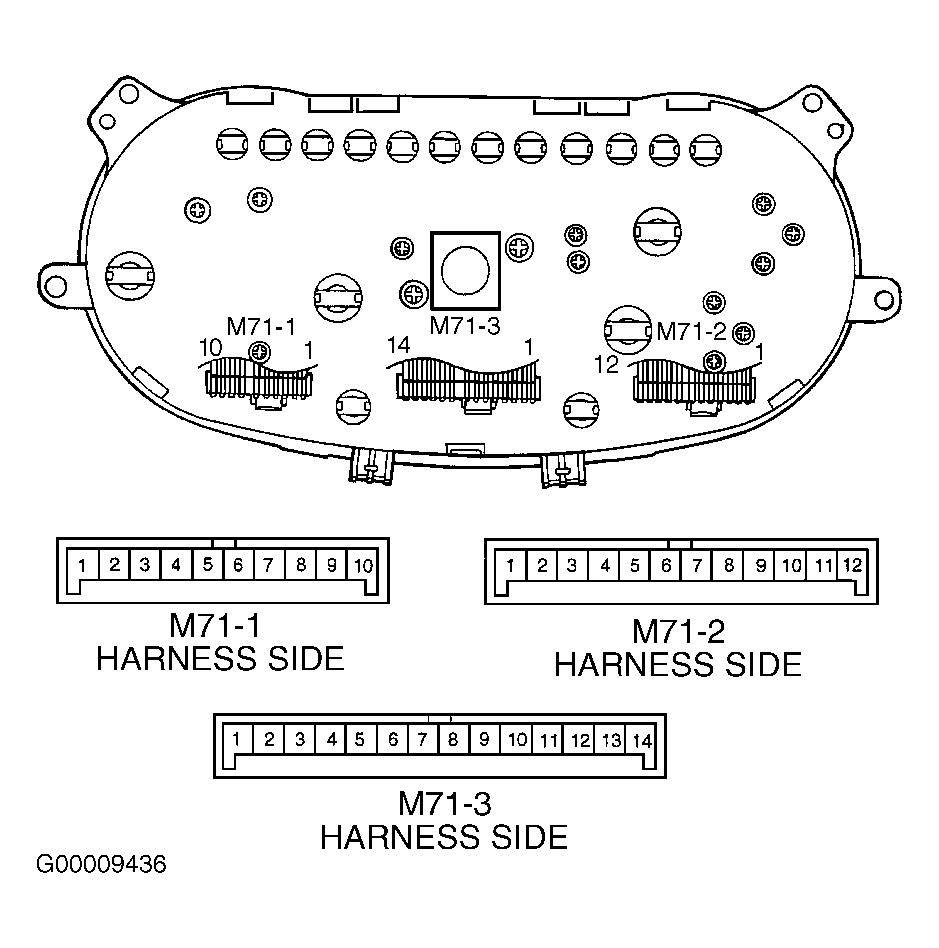

Fig 12: Identifying Instrument Cluster Connector Terminals (Accent)
G00009436Courtesy of HYUNDAI MOTOR CO.

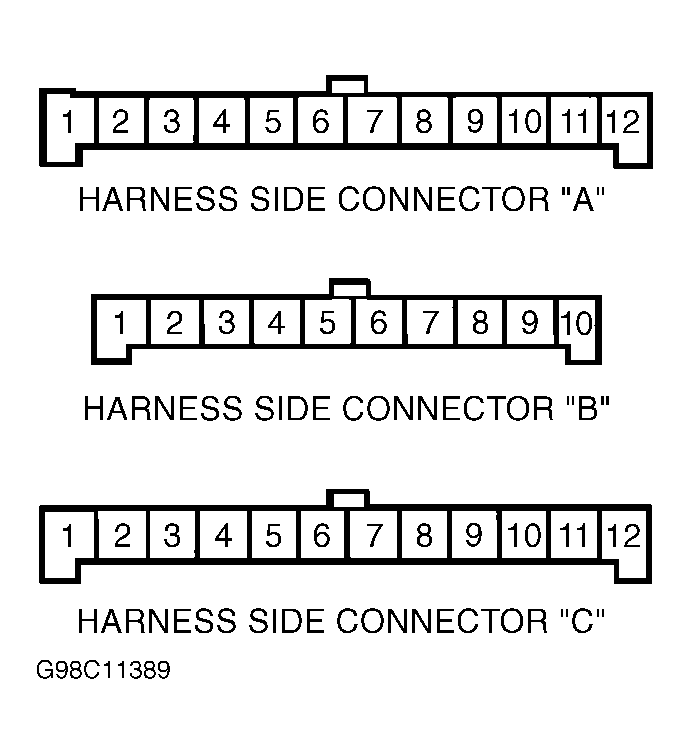

Fig 13: Identifying Terminals Of Instrument Panel Connectors (Elantra & Tiburon)
G98C11389Courtesy of HYUNDAI MOTOR CO.
Fig 14: Identifying ECM Harness Side Connector Terminals (Accent)
G00009435Courtesy of HYUNDAI MOTOR CO.

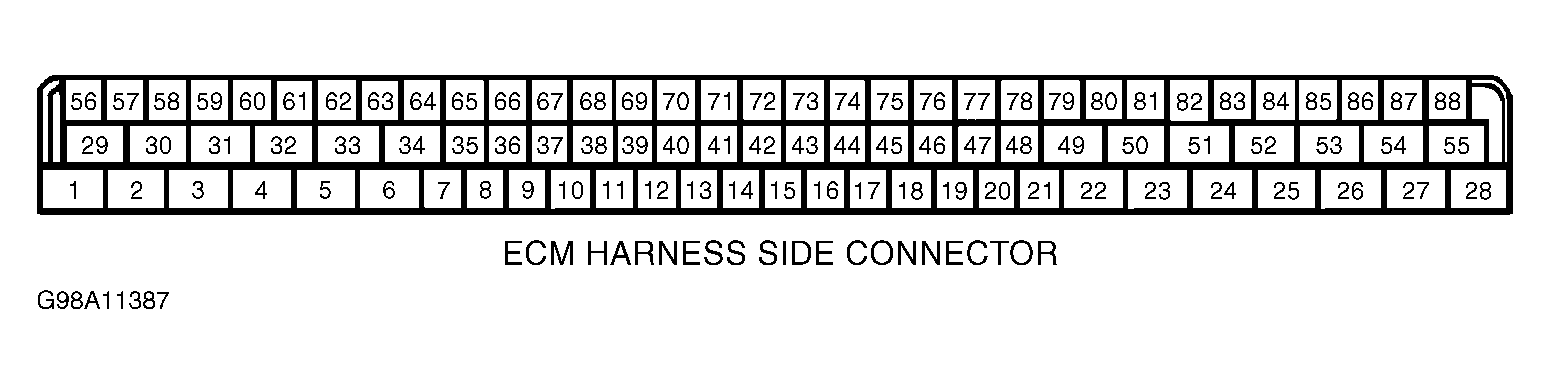

Fig 15: Identifying ECM Harness Side Connector Terminals (Elantra & Tiburon)
G98A11387Courtesy of HYUNDAI MOTOR CO.
Fig 16: Identifying ECM Harness Side Connector Terminals (Sonata 2.4L A/T)
G00009437Courtesy of HYUNDAI MOTOR CO.
Fig 17: Identifying ECM Harness Side Connector Terminals (Sonata 2.4L M/T)
G00009438Courtesy of HYUNDAI MOTOR CO.
Fig 18: Identifying ECM Harness Side Connector Terminals (Sonata 2.5L)
G99G03474Courtesy of HYUNDAI MOTOR CO.
