Timer/Control Unit, Accessory Control

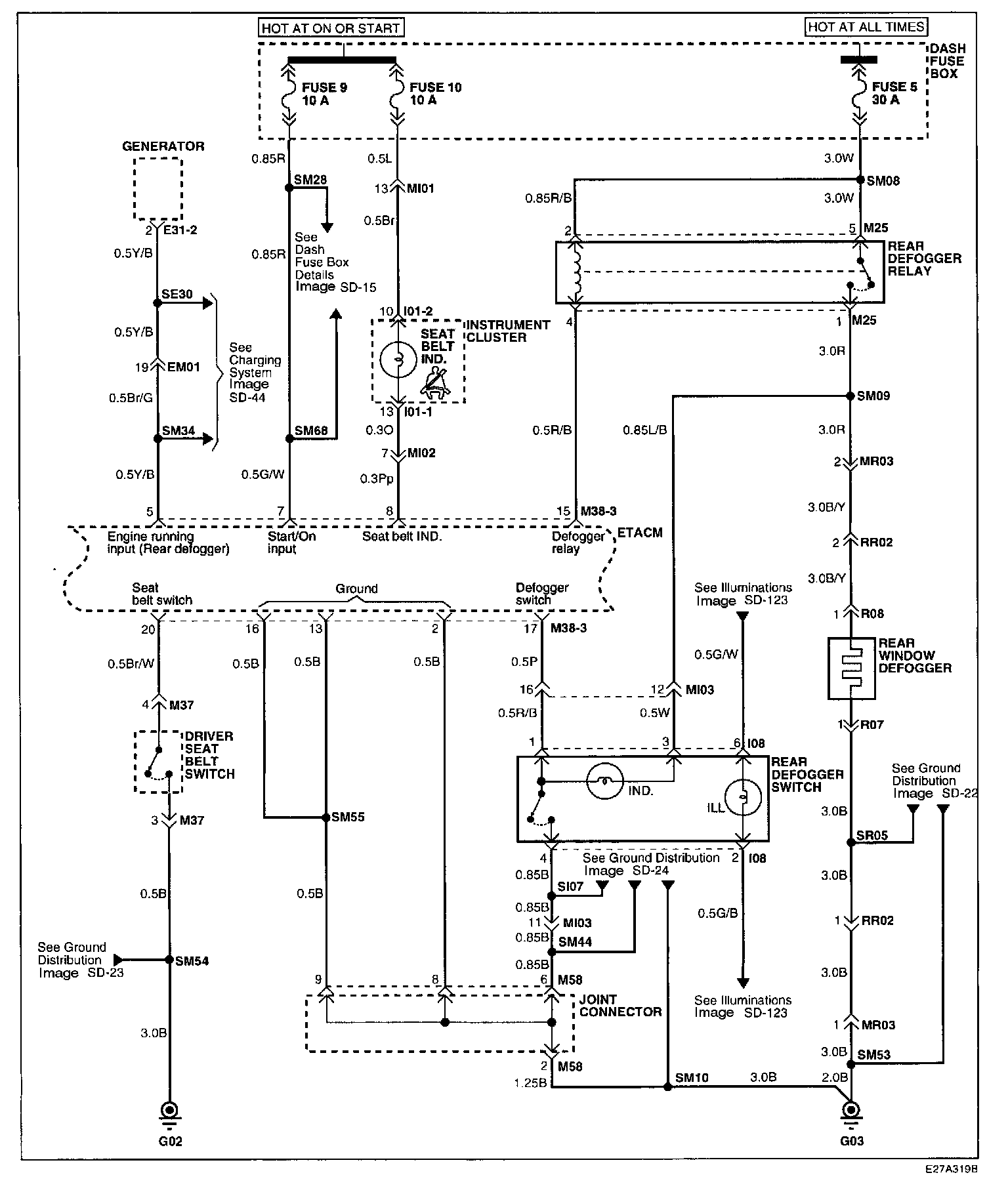

Image SD - 76:

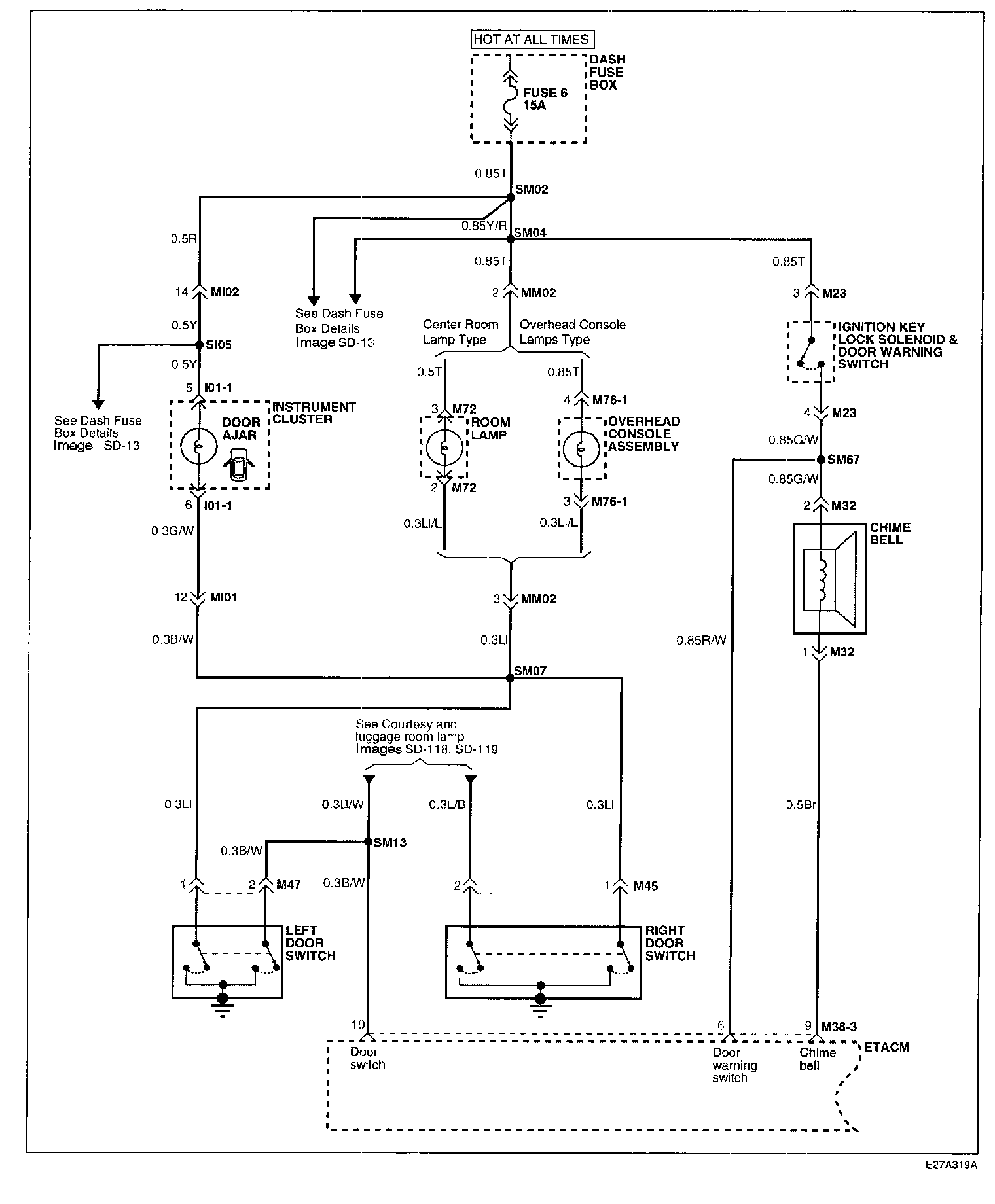

Image SD - 77:

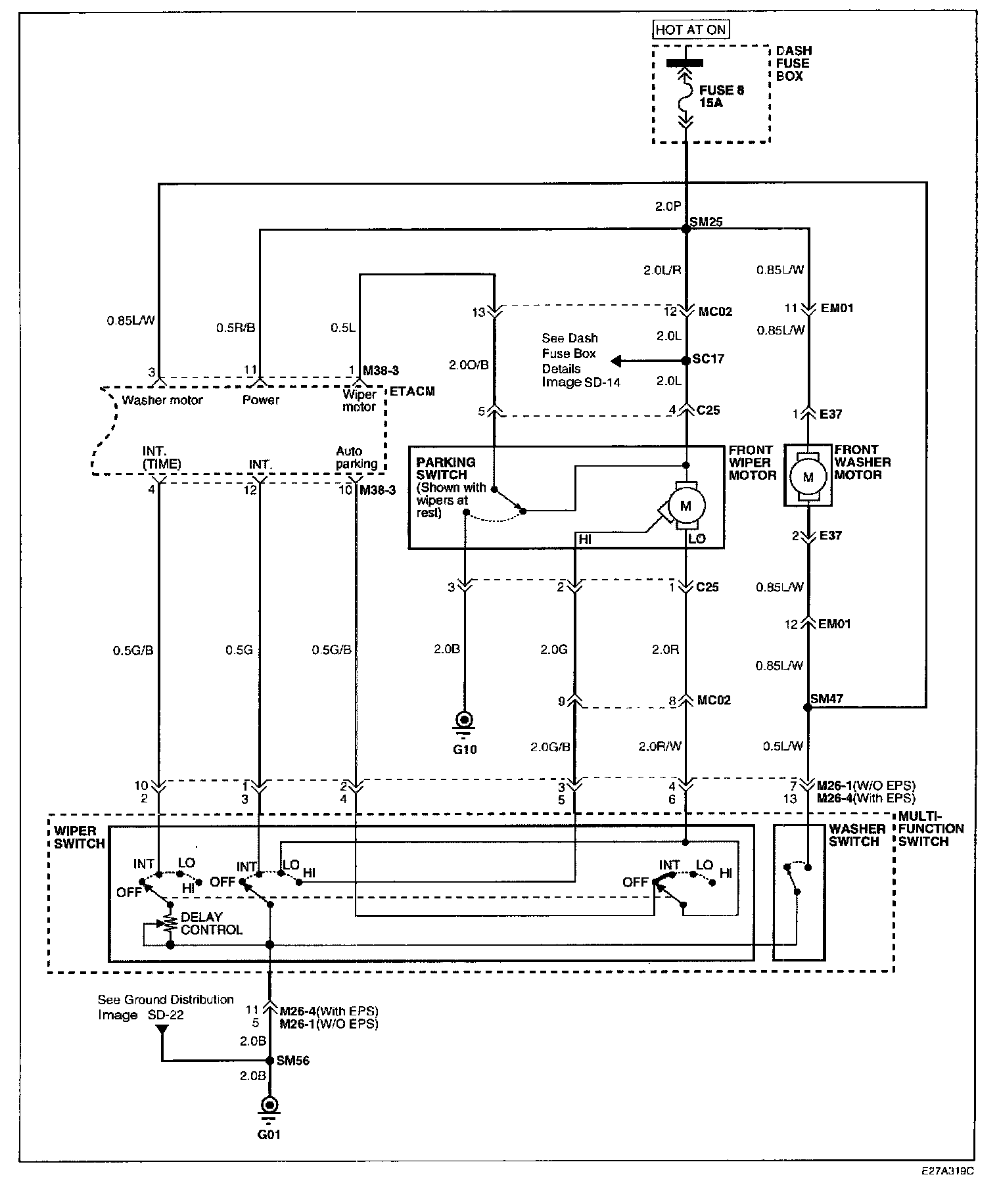

Image SD - 78:

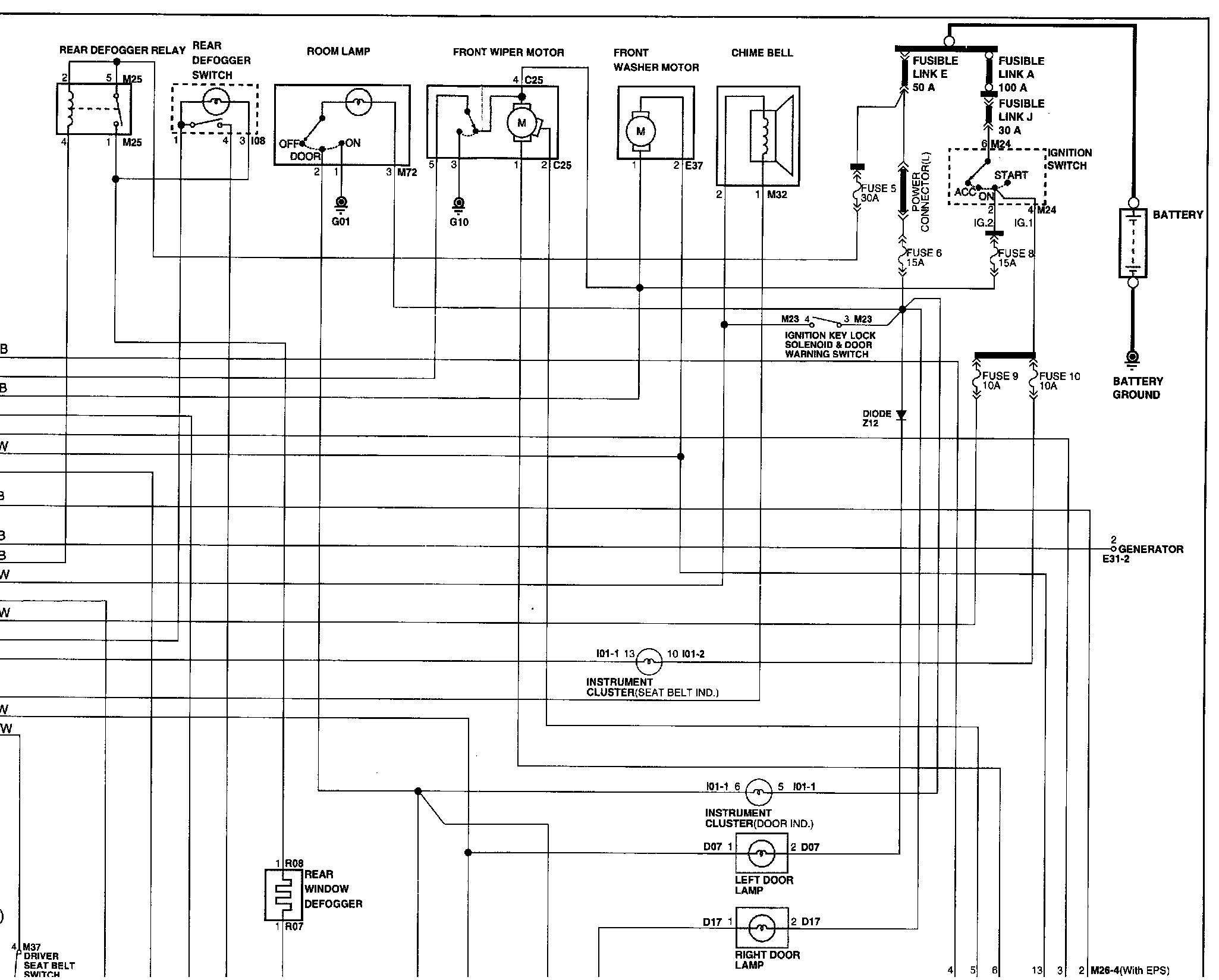

�(�S�I�S\�SImage SD - 78-1:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section (Tiburon) Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Tiburon) Of Vehicle.
Locations
