Rear Wheel Alignment

REAR WHEEL ALIGNMENT INSPECTION
Toe-in
Standard value: 4 [+3/ -1] mm(0.16 [+0.12/ -0.04] inch)

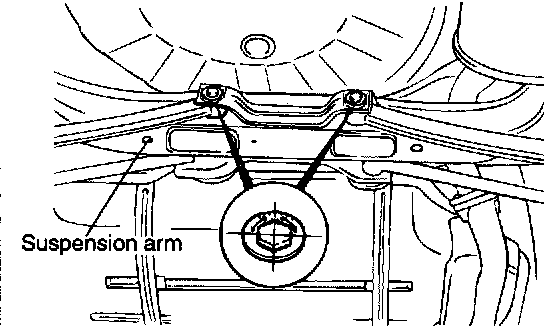

NOTE: The rear suspension (T) mounting bolt should be turned an equal amount on both sides when adjusting. Loosen the rear-side nut prior to adjust the eccentric bolt.

Left wheel: Clockwise direction toe-in
Right wheel: Clockwise direction toe-out

The scale has gradations of approximately 2.4 mm (0.09 inch) (signal side to angle equivalent to 14')

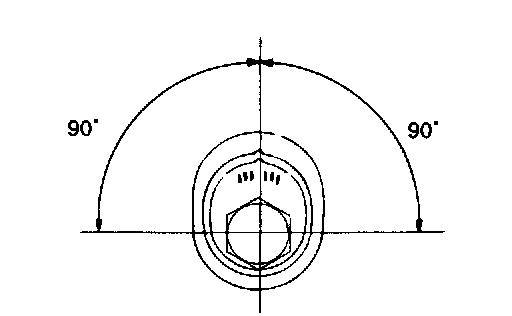

CAUTION: The eccentric bolt should be adjusted within a 90° range left and right from the center position.
