Steering Angle

CHECKING STEERING ANGLE

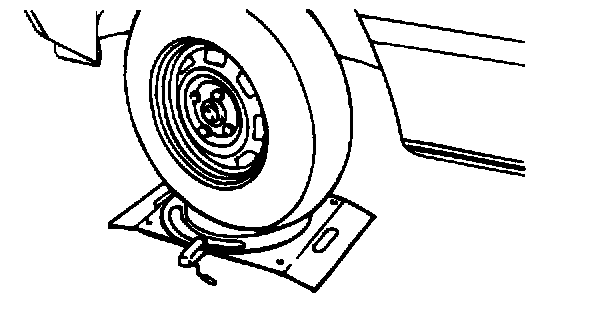

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Wheel angle [Standard value]
ELANTRA
Inner wheel 39° 27'
Outer wheel 33° 27'
TIBURON
Inner wheel 35° 37' ± 1° 30'
Outer wheel 33° 76'
2. If the measured value is not within the standard value, adjust the linkage.
