Main Relay (Computer/Fuel System): Testing and Inspection

MFI CONTROL RELAY




When the ignition switch is on, battery power is supplied to the ECM, the injector, the mass air flow sensor, etc. When the ignition switch is turned on, current flows from the ignition switch through the current relay coil to ground.

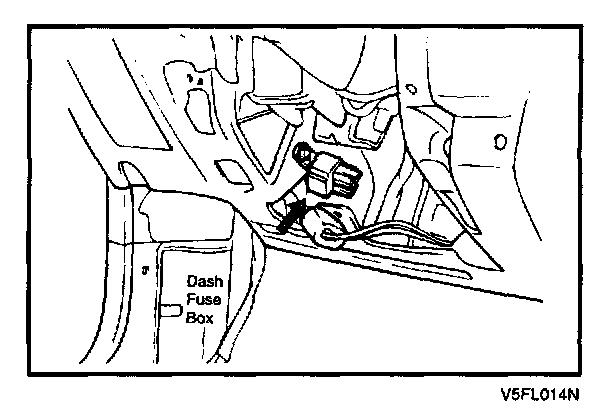

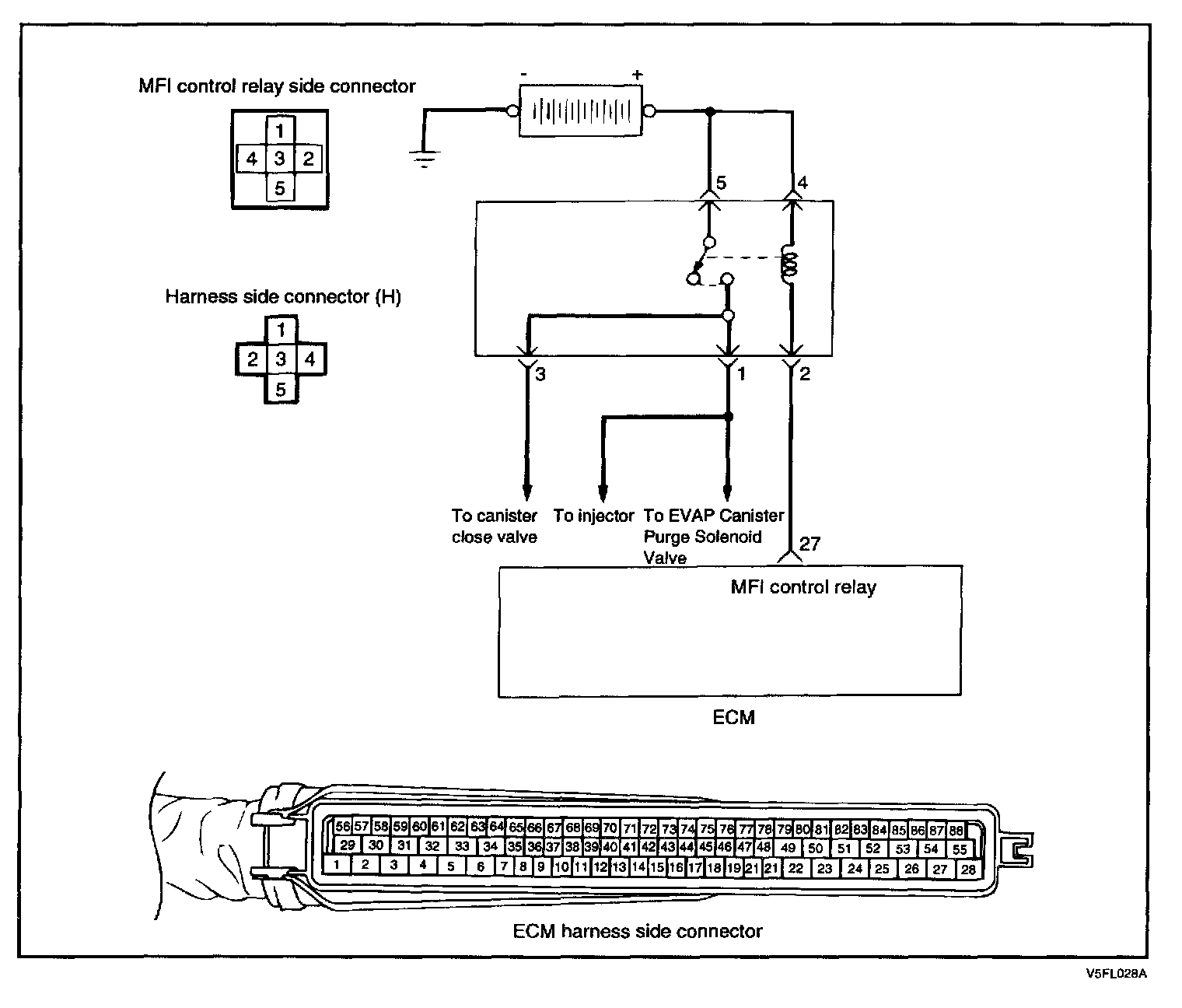

Circuit Diagram:

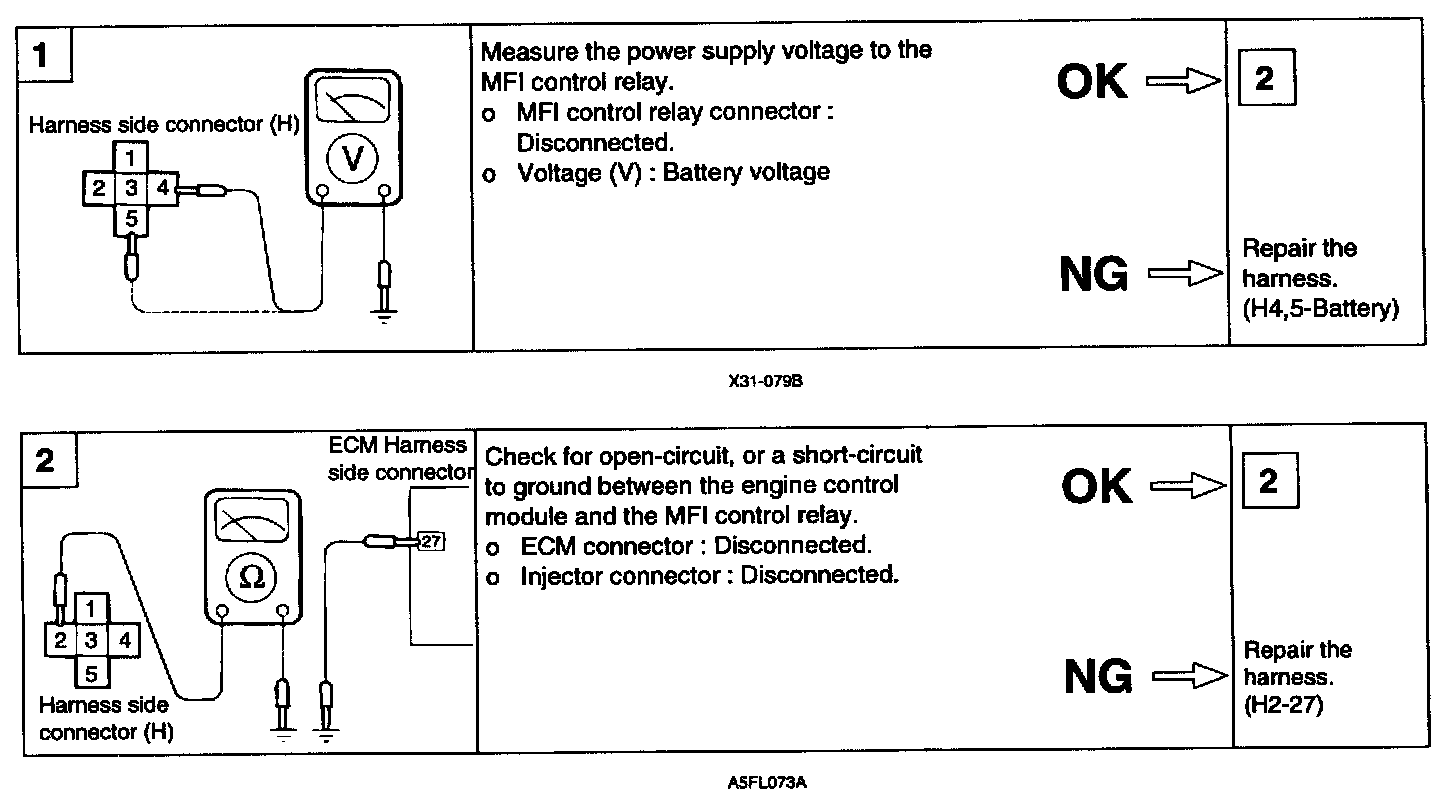

Harness Inspection Processor(Steps 1 - 2):

MFI CONTROL RELAY INSPECTION

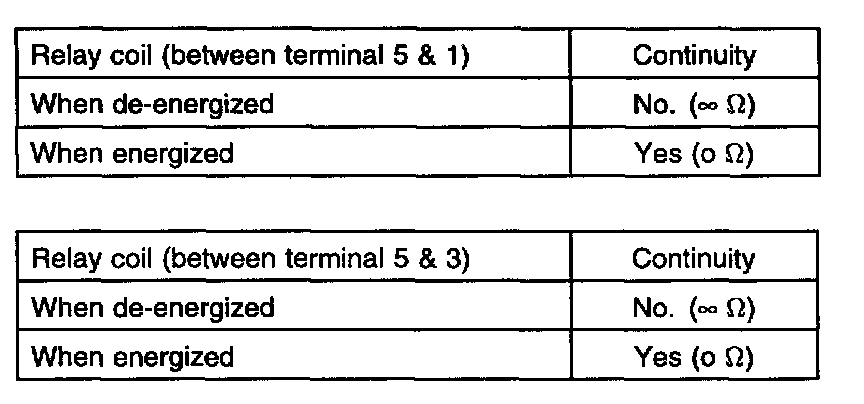

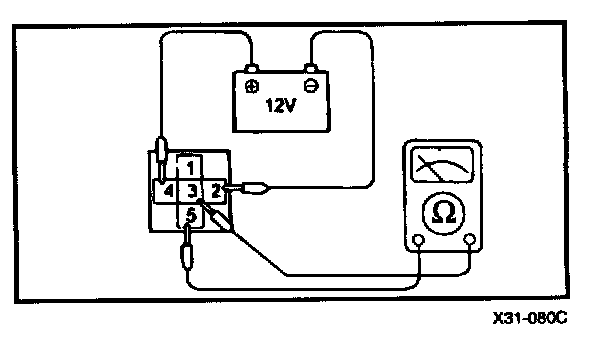

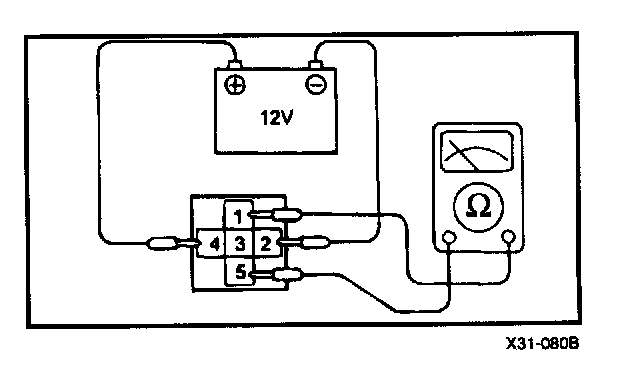

1. Check continuity of relay contacts between terminal 4 (+) and 2 (-)
2. If faulty, replace the MFI control relay.

Tightening torque
MFI control relay: 7 - 11 Nm (7 - 110 kg.cm, 5.2 - 8.1 lb.ft)
