Cylinder Block Specifications

GENERAL SPECIFICATIONS

�C
2:

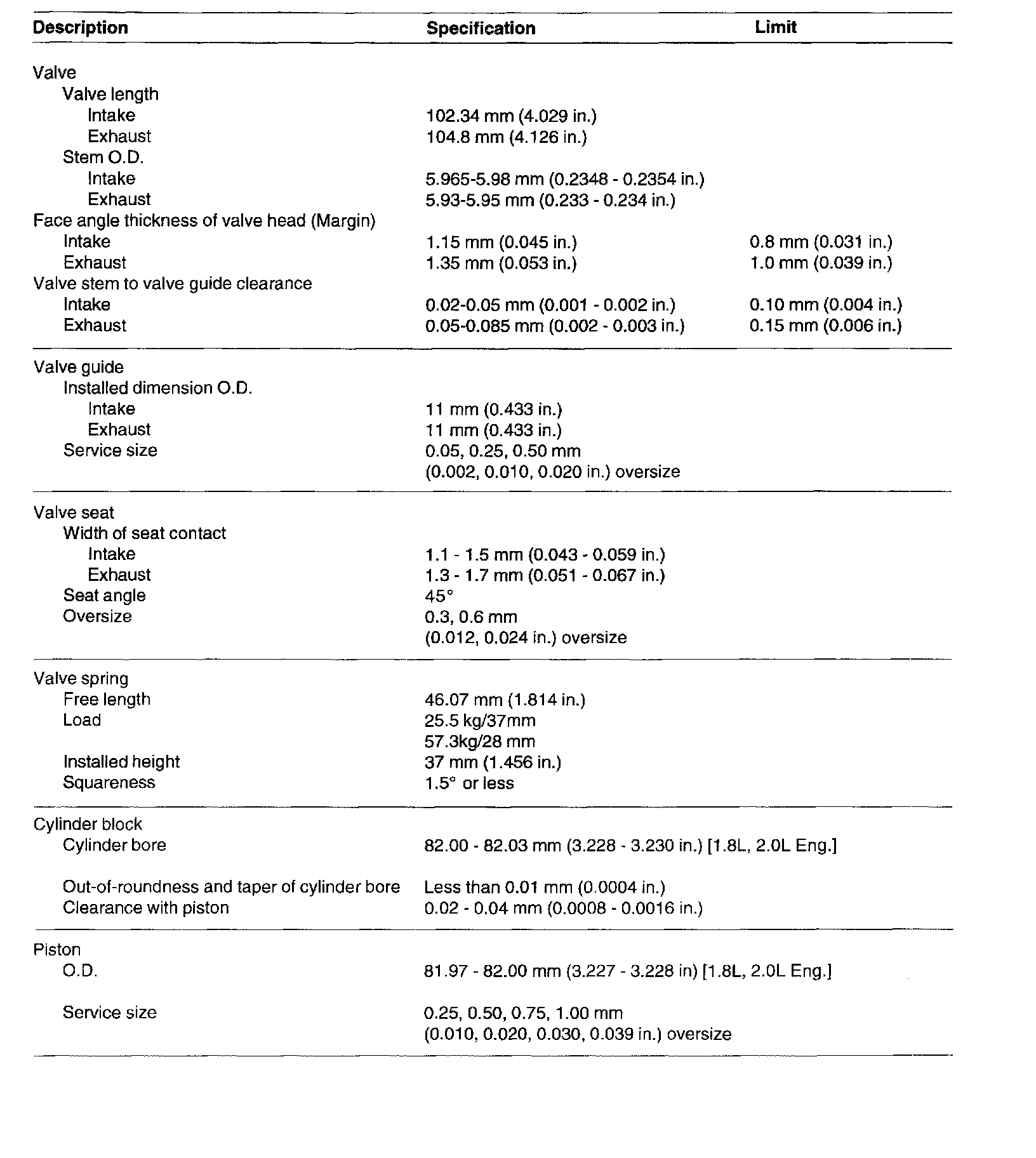

1 of 4

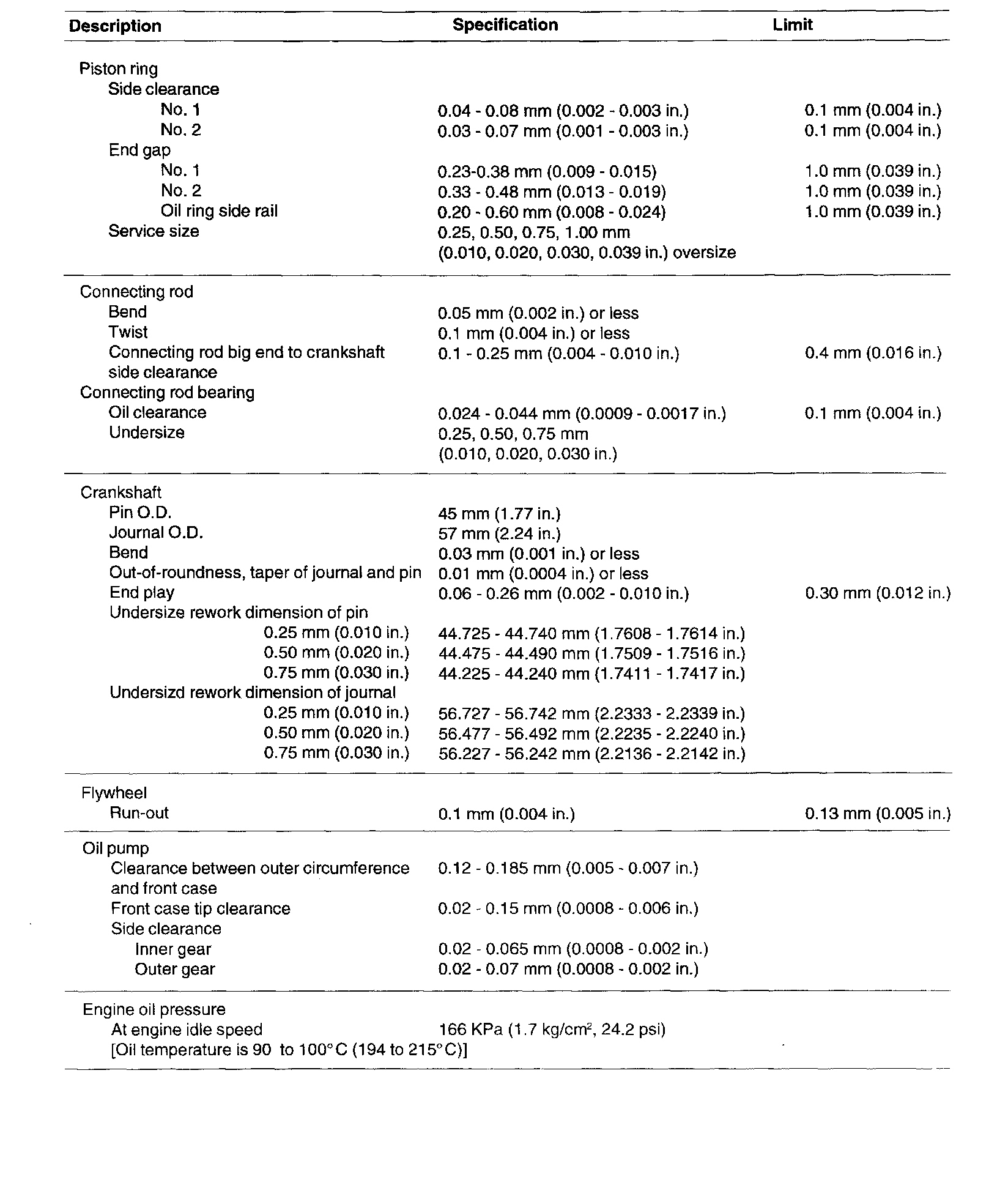

2 of 4

��
2:

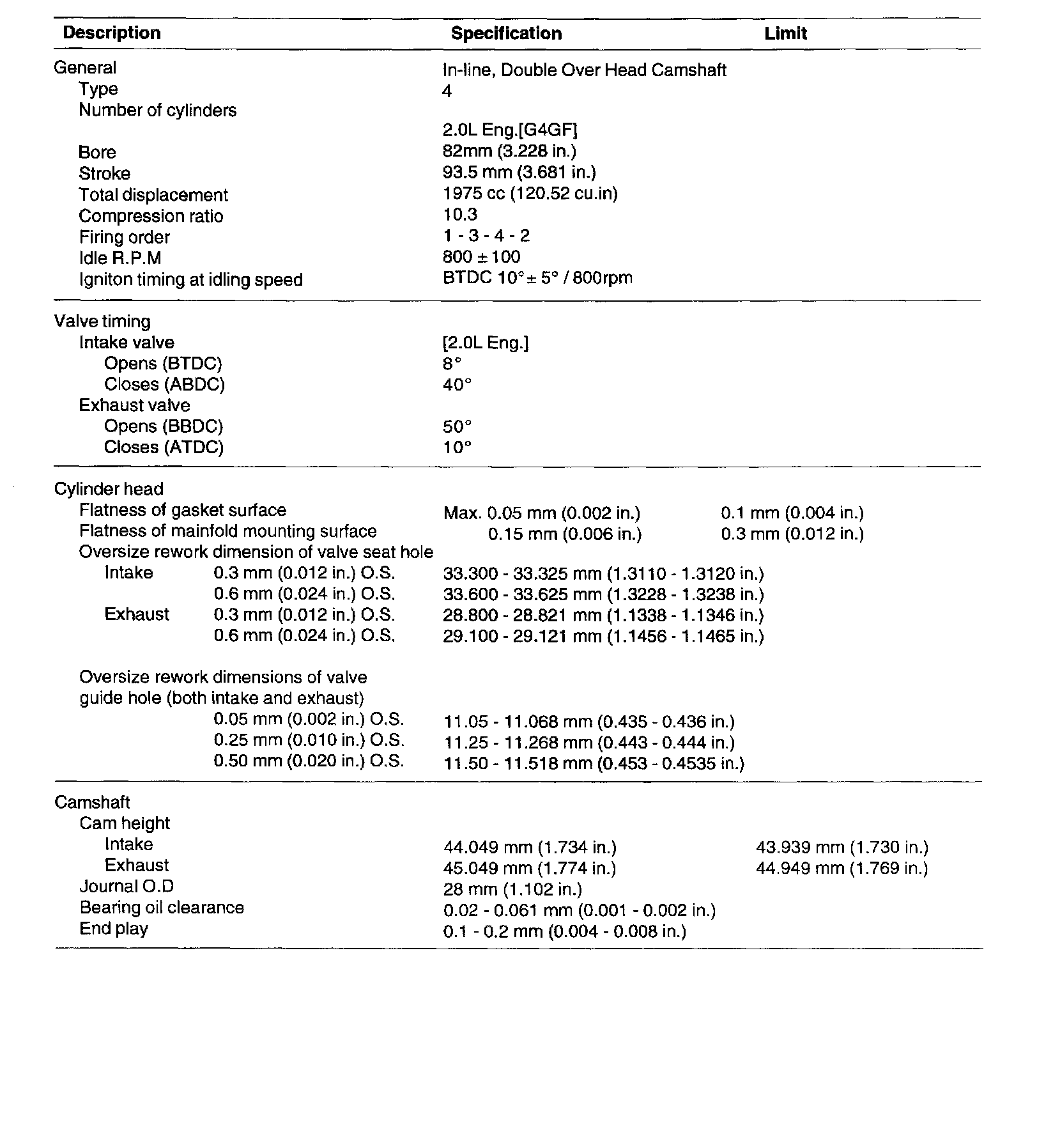

3 of 4

' 2:

4 of 4

Cylinder Block Surface Variation
Standard 0.05 mm (0.0020 in.) or less
Limit 0.1 mm (0.004 in.)

Oil Clearance
Main Bearing 0.028 - 0.048 mm (0.0011 - 0.0018 in.)
Limit 0.1 mm (0.004 in.)
