Control Module: Locations

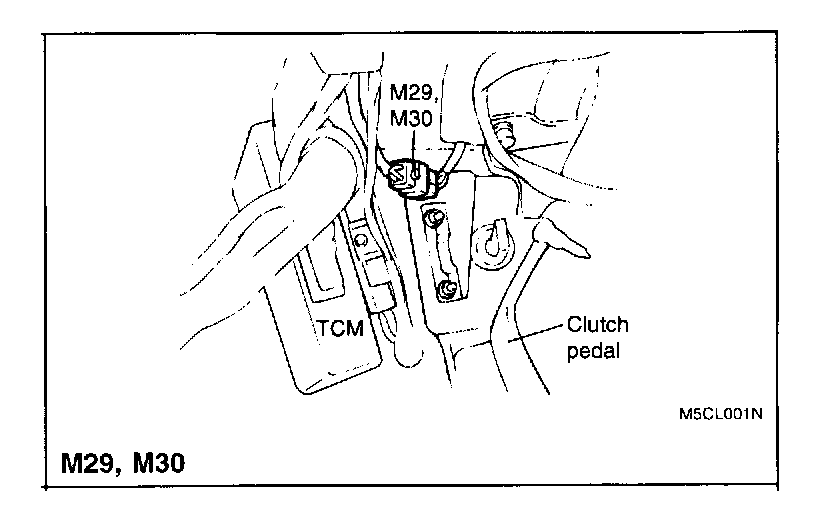

M29 Starter clutch pedal position switch, M30 Cruise clutch pedal position switch:

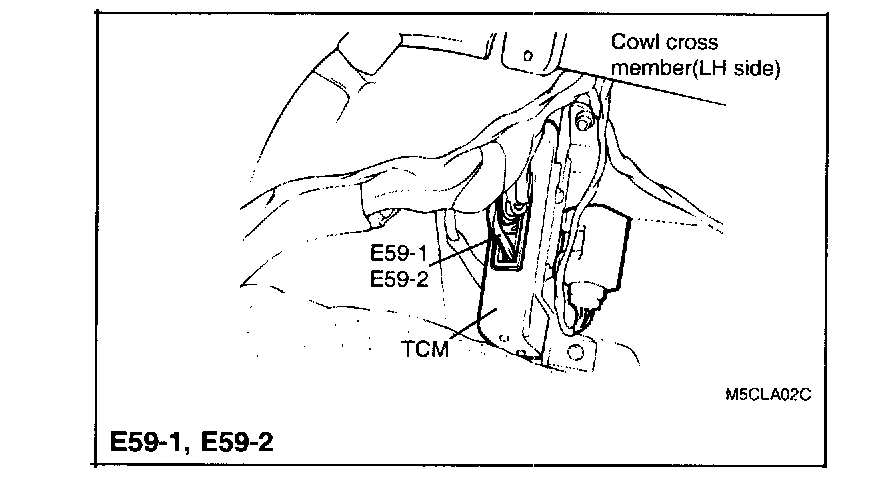

E59-1,E59-2 Transaxle control module (TCM):

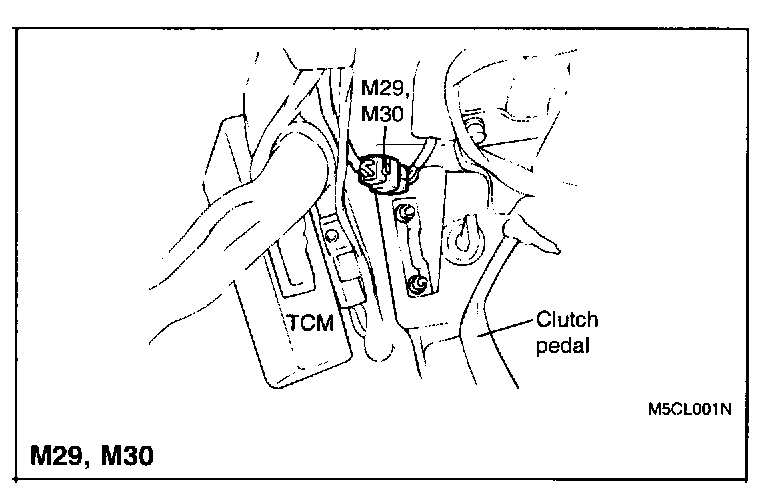

M29 Starter clutch pedal position switch, M30 Cruise clutch pedal position switch:

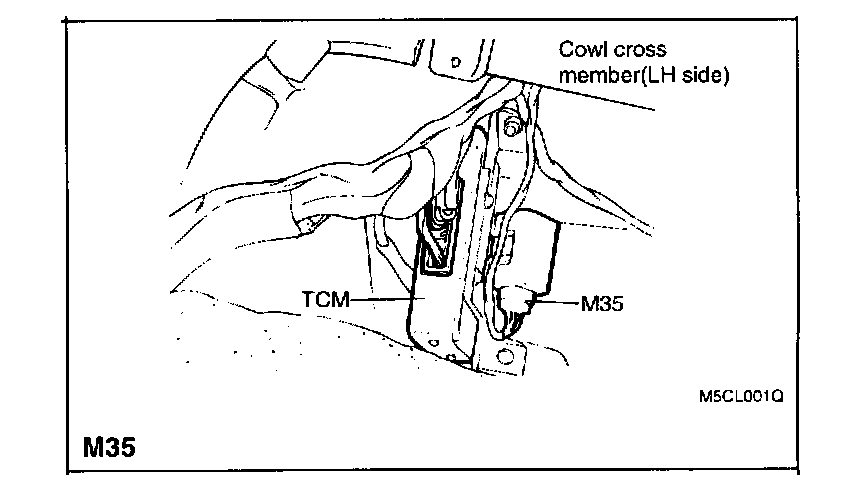

M35:

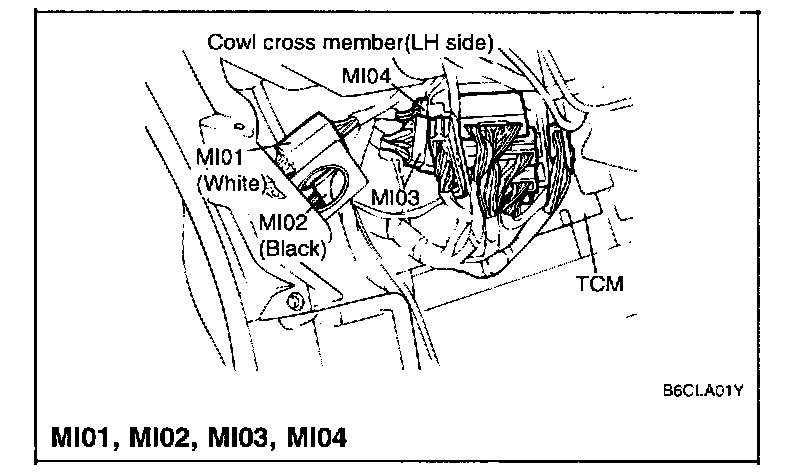

MI01,MI02,MI03,MI04:

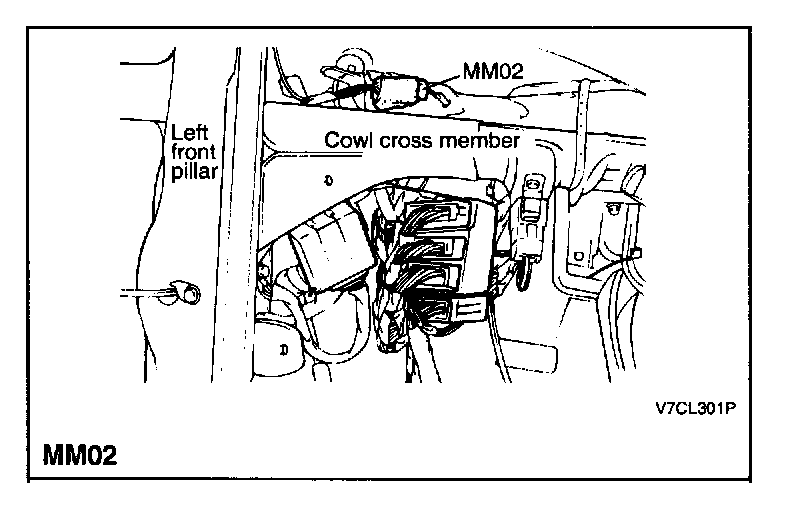

MM02:

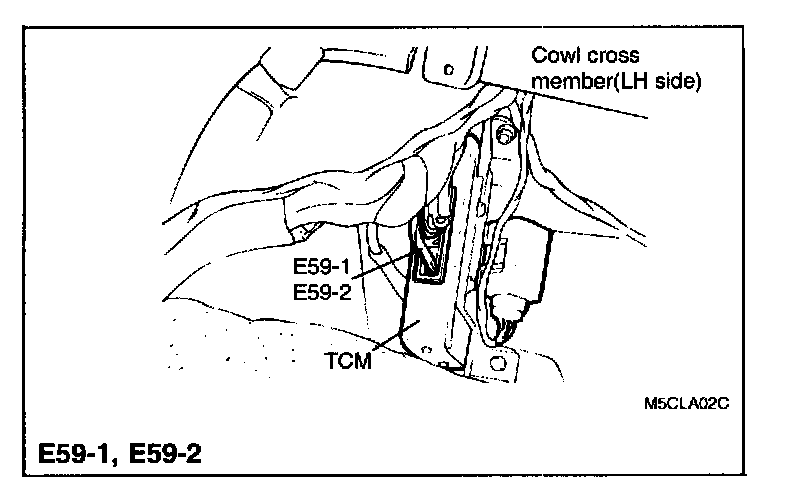

E59-1,E59-2 TCM:
