Ignition Coil Power Circuit (Accent)

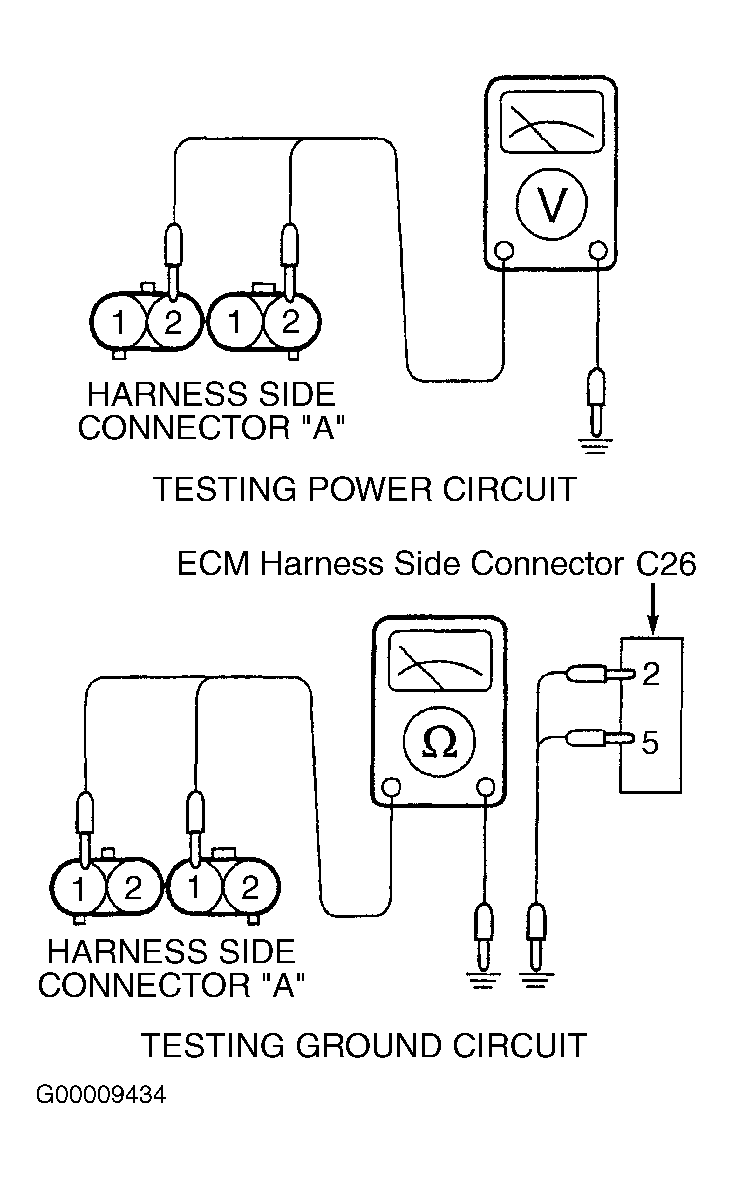

Turn ignition off. Disconnect both ignition coil 2-pin "A" connectors. Turn ignition on. Measure voltage between ground and "A" connector terminal No. 2. See Figure. Battery voltage should exist. If battery voltage does not exist, repair circuit between coil and ignition switch.
