Engine Control Module (ECM) Location

ENGINE CONTROL MODULE LOCATION

Application Location
Tiburon Behind Left Side Of Instrument Panel

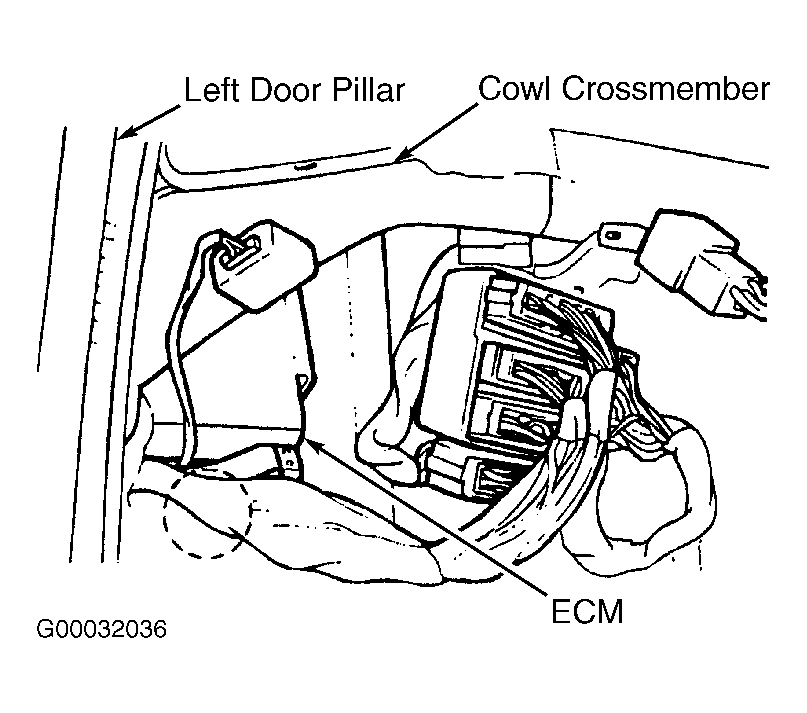

Fig 1: Locating Engine Control Module (ECM)
G00032036Courtesy of HYUNDAI MOTOR CO.
