Connector Terminal Identification

CONNECTOR TERMINAL IDENTIFICATION DIRECTORY

Connector	See
Electronic Throttle System (ETS) Control Module	Fig 1
Heated Oxygen Sensor (HO2S)	Fig 2
Powertrain Control Module (PCM)	Fig 3

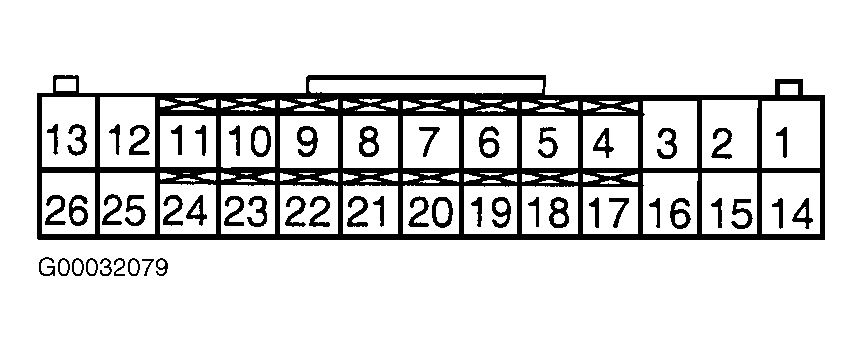

Fig 1: Identifying Electronic Throttle System (ETS) Control Module Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

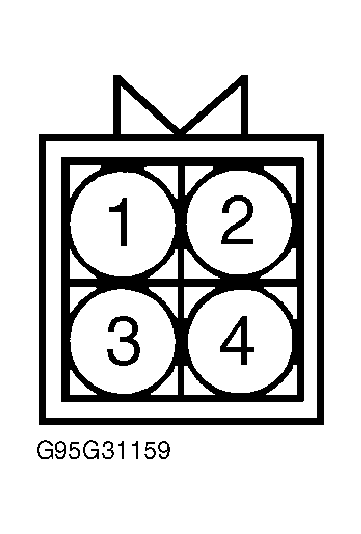

Fig 2: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Powertrain Control Module Connector Terminal Identification

Courtesy of HYUNDAI MOTOR CO.
