Procedure To Install The Lock Cam

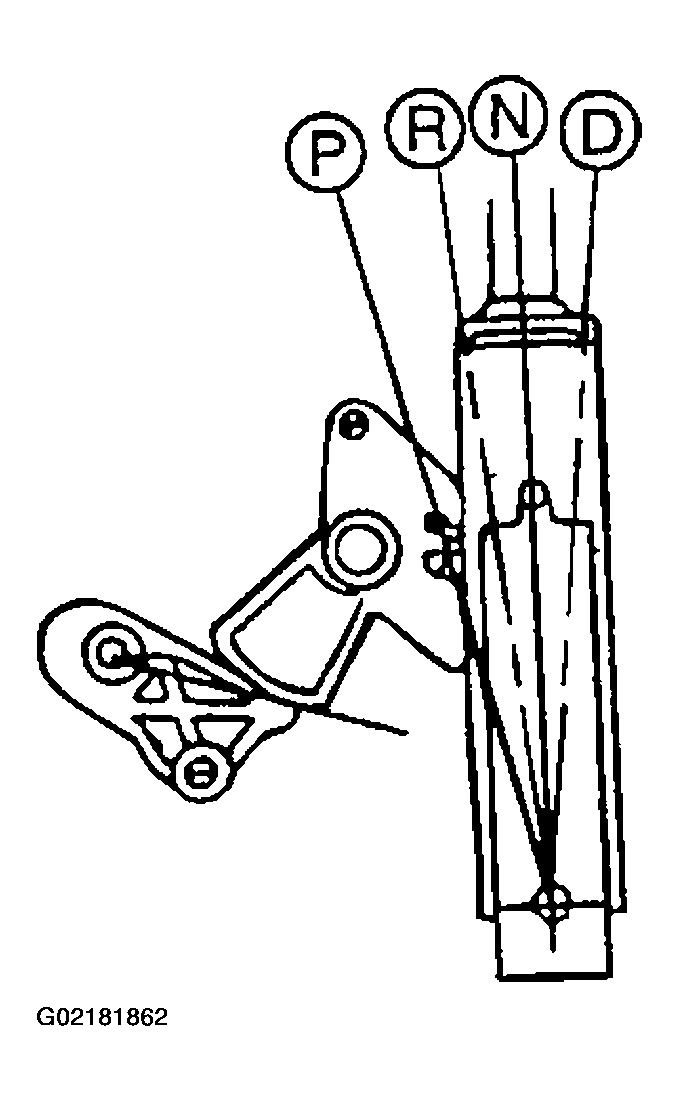

Fig 1: Identifying A/T Shift Lever Positions
G02181862
  1. Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in Fig 2 .
    • Check that the key lock cam is located at "B" by the detent pin.
    • Check that the shift lock cam is located at "A".

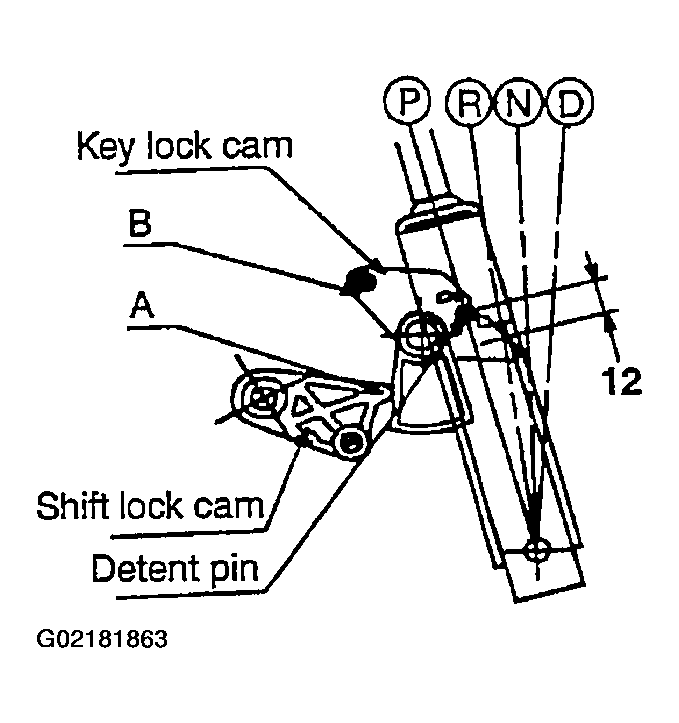

    Fig 2: Setting The Key Lock Cam & The Shift Lock Cam
    G02181863
  2. Check that the key cylinder is at "LOCK".
