Automatic Transaxle Shift Control: Notes

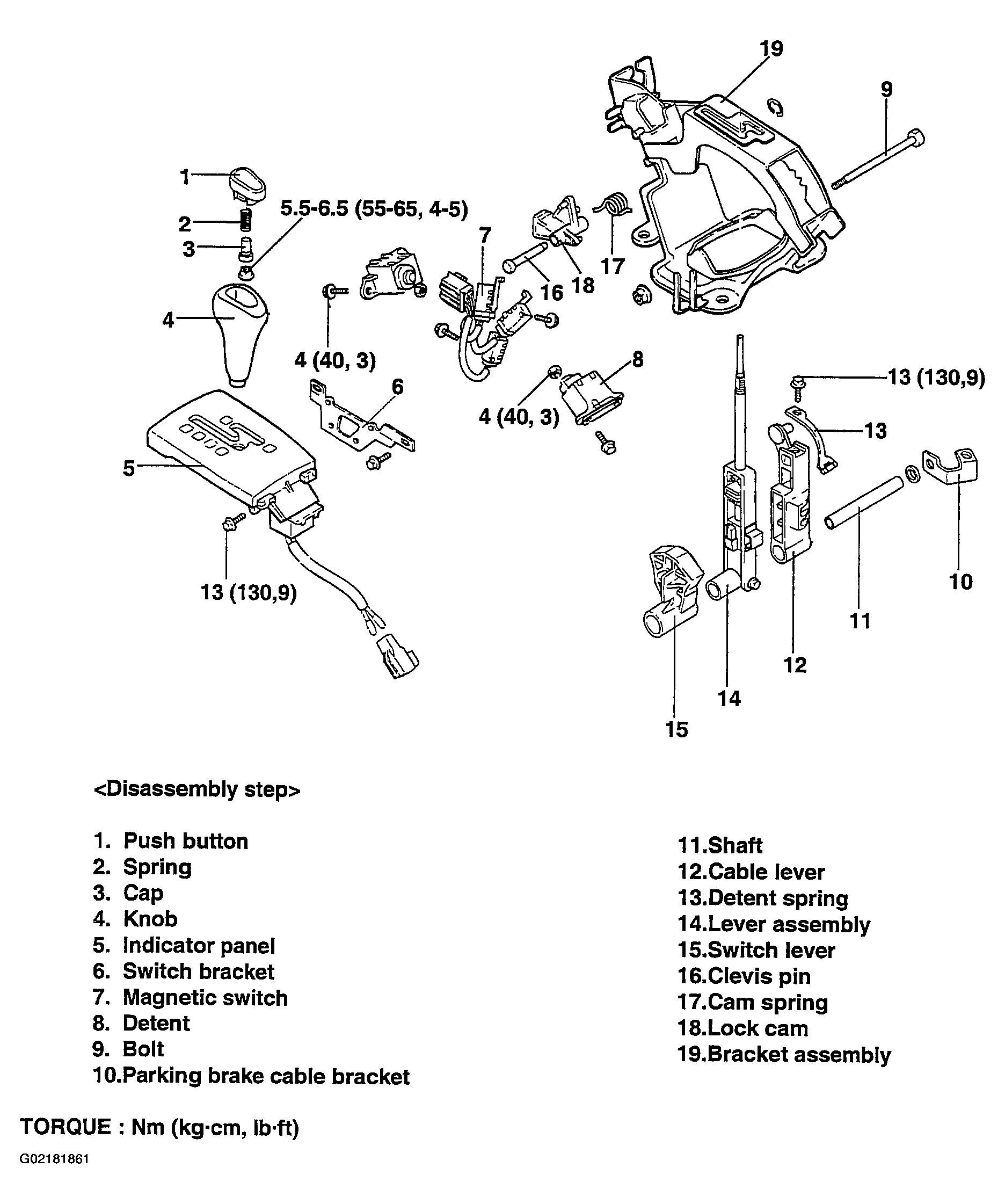

Fig 1: Automatic Transaxle Shift Control Components

G02181861
