Time & Alarm Control Module (TACM)

To identify TACM connector pins, see Fig 1 .

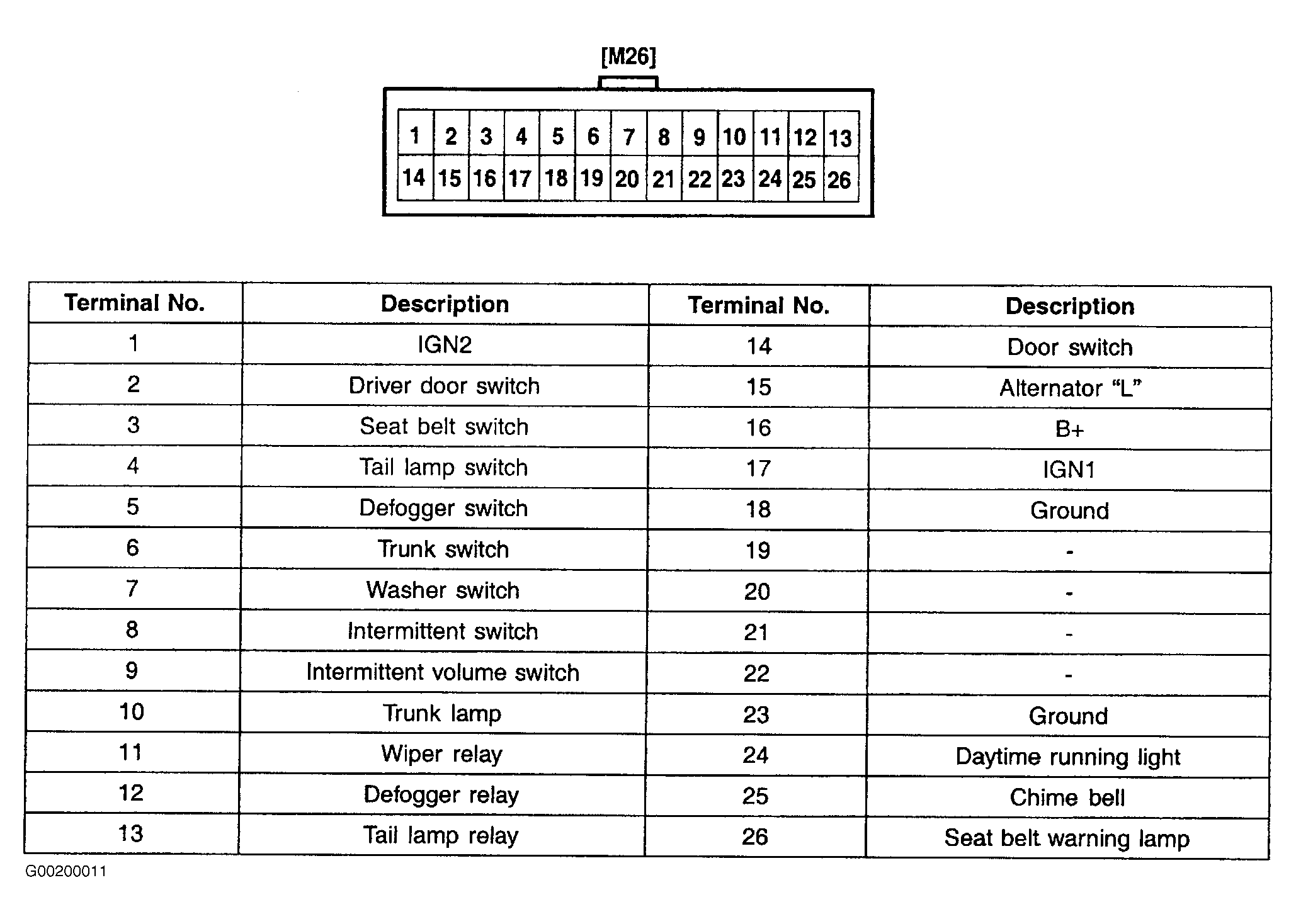

Fig 1: Identifying TACM Connector Pins
G00200011Courtesy of HYUNDAI MOTOR CO.
