Alarm Function

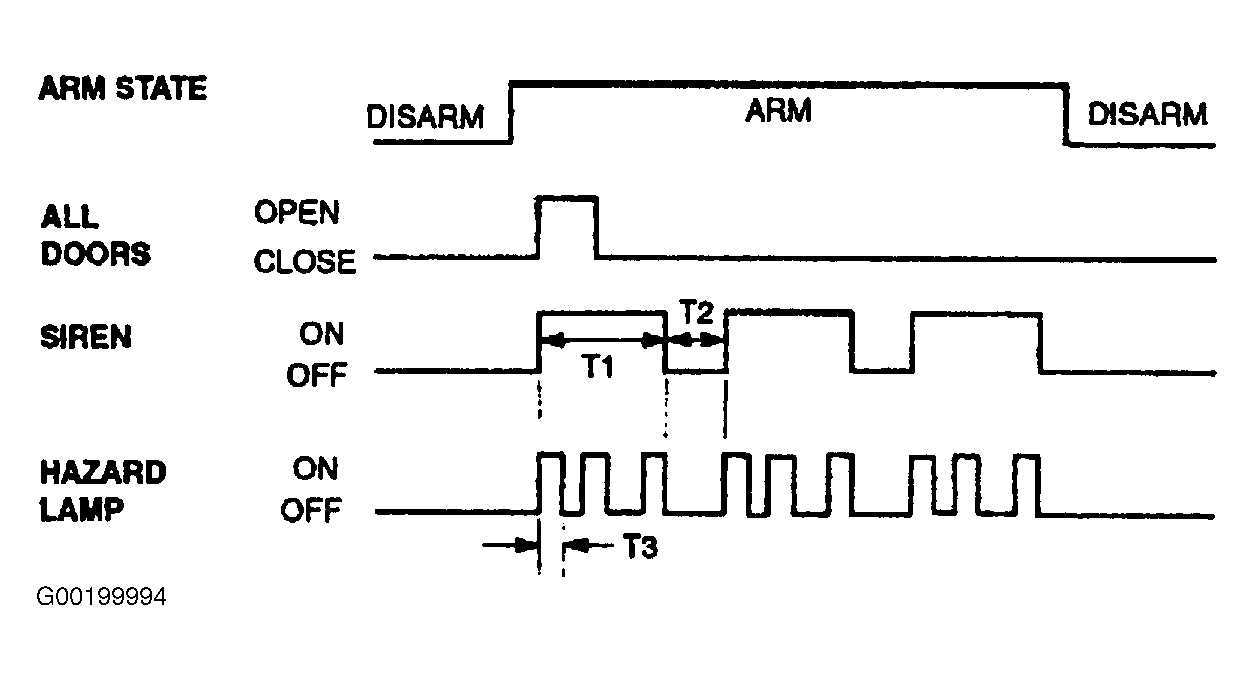

Time Specification:
- T1: 25-29 sec.
- T2: 9-11 sec.
- T3: 0.4-0.6 sec.
Use illustration for timing wave form pattern. See Fig 1 .

Fig 1: Checking Time Specification
Courtesy of HYUNDAI MOTOR CO.

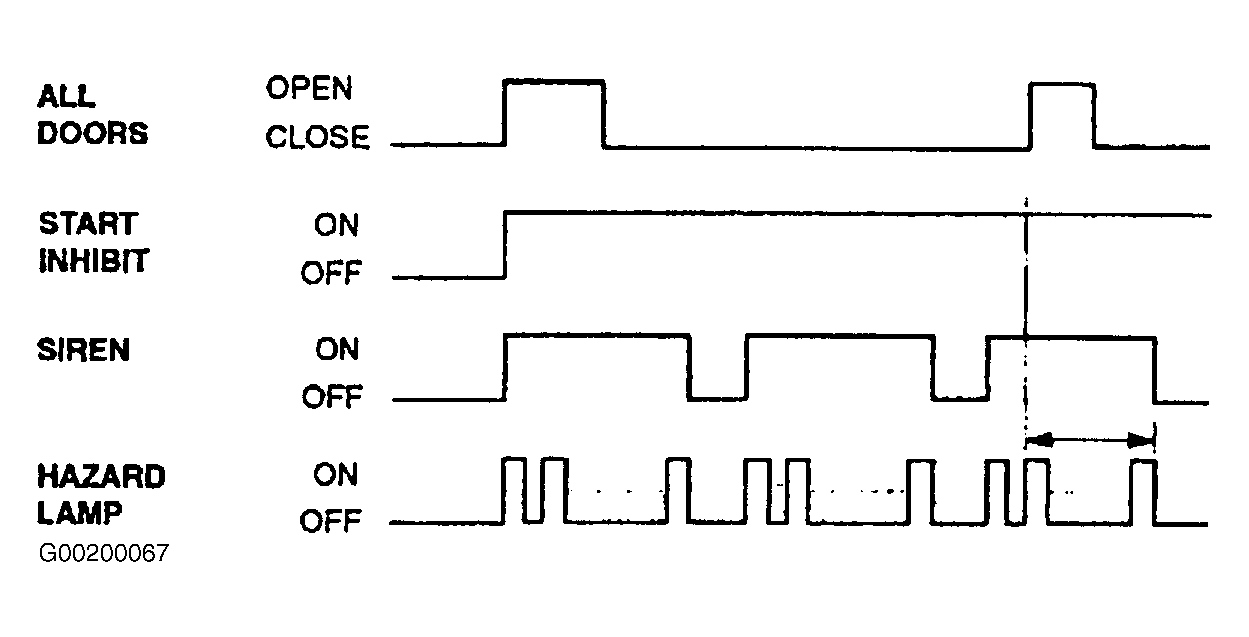

New Alarm occurs while the alarm is sounding.
Use illustration for timing wave form pattern. See Fig 2 .

Fig 2: Checking New Alarm When Alarm Is Sounding
Courtesy of HYUNDAI MOTOR CO.

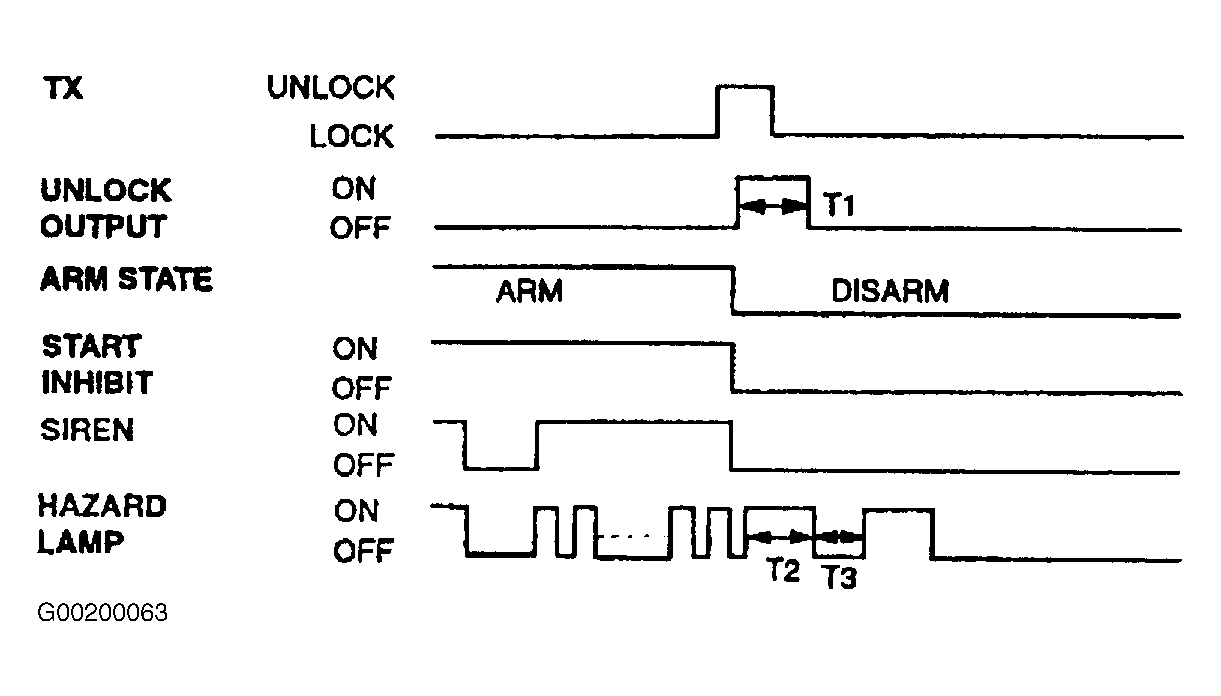

Disarmed with TX (Transmitter) while the alarm is sounding. Time Specification:
- T1, To T3: 0.5 sec.
Use illustration for timing wave form pattern. See Fig 3 .

Fig 3: Disarmed With TX (Transmitter) While Alarm Sounding
Courtesy of HYUNDAI MOTOR CO.

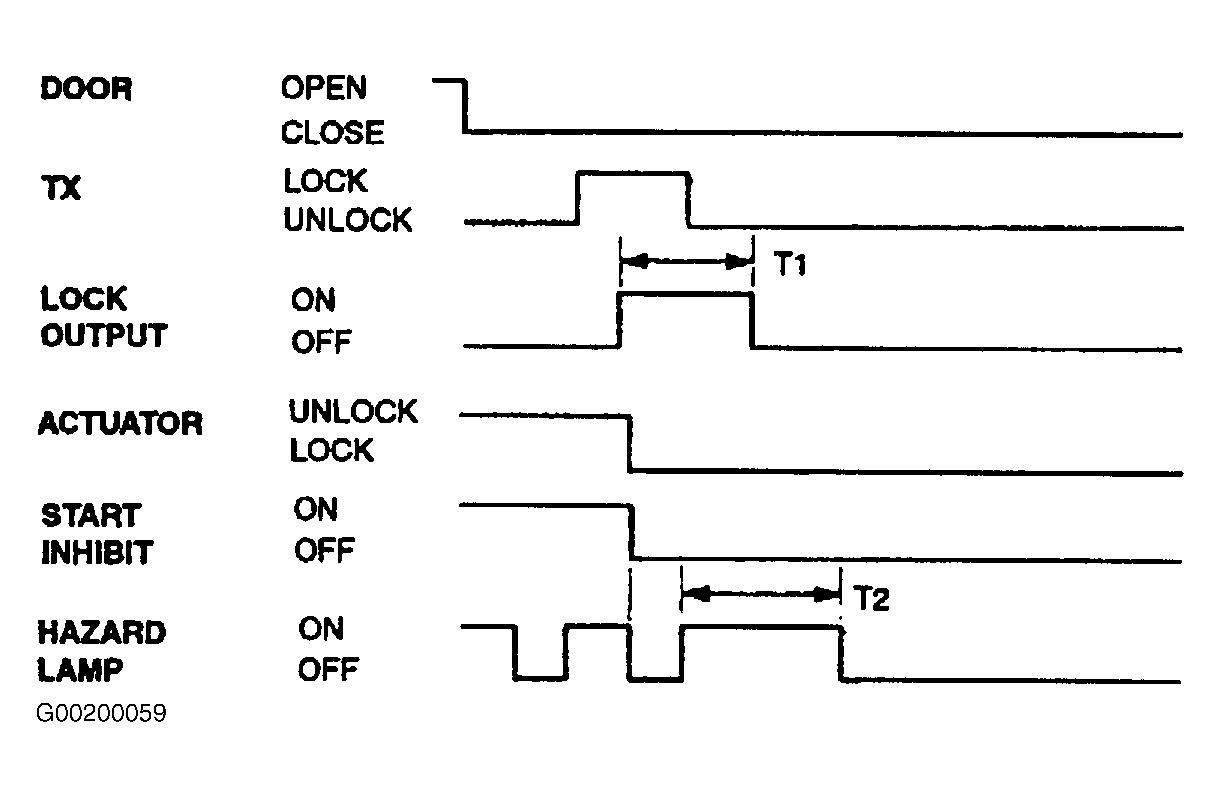

TX (Transmitter) lock button pressed when the door closed while the alarm is sounding. Time Specification:
- T1: 0.5 sec.
- T2: 1.0 sec.
Use illustration for timing wave form pattern. See Fig 4 .

Fig 4: TX (Transmitter) Lock Button Pressed When Door Closed
Courtesy of HYUNDAI MOTOR CO.

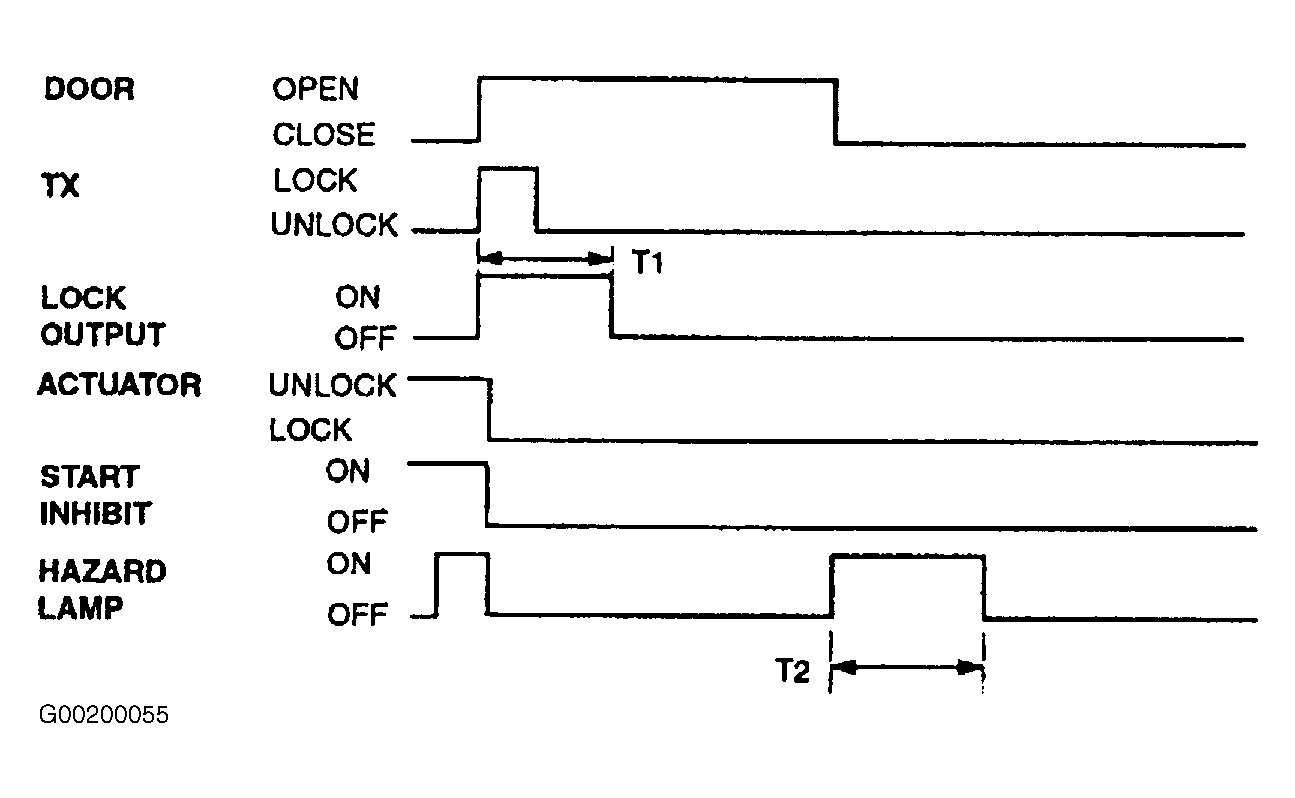

TX (Transmitter) lock button pressed when the door opened while the alarm is sounding. Time Specification:
- T1: 0.5 sec.
- T2: .8-1.2 sec.
Use illustration for timing wave form pattern. See Fig 5 .

Fig 5: TX (Transmitter) Lock Button Pressed When Door Opened
Courtesy of HYUNDAI MOTOR CO.

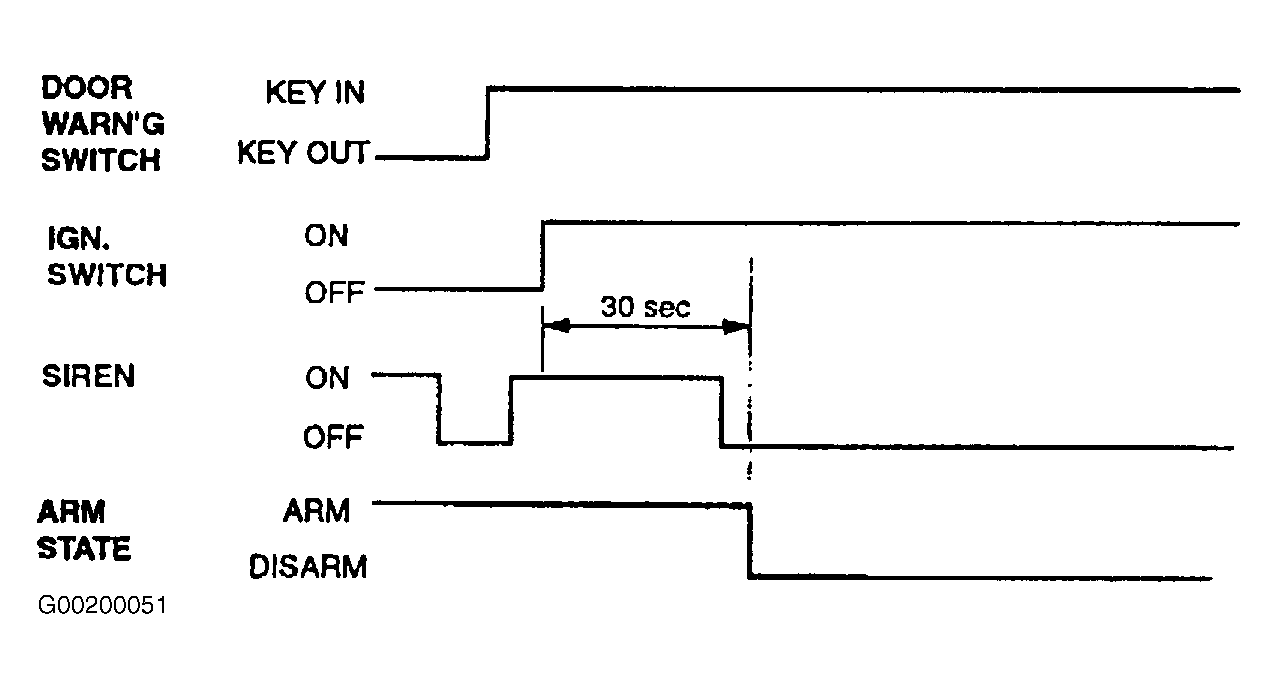

Disarmed after 30 sec when the ignition switch is turned on while the alarm is sounding.
Use illustration for timing wave form pattern. See Fig 6 .

Fig 6: Disarming After 30 Sec When Switch "ON"
Courtesy of HYUNDAI MOTOR CO.

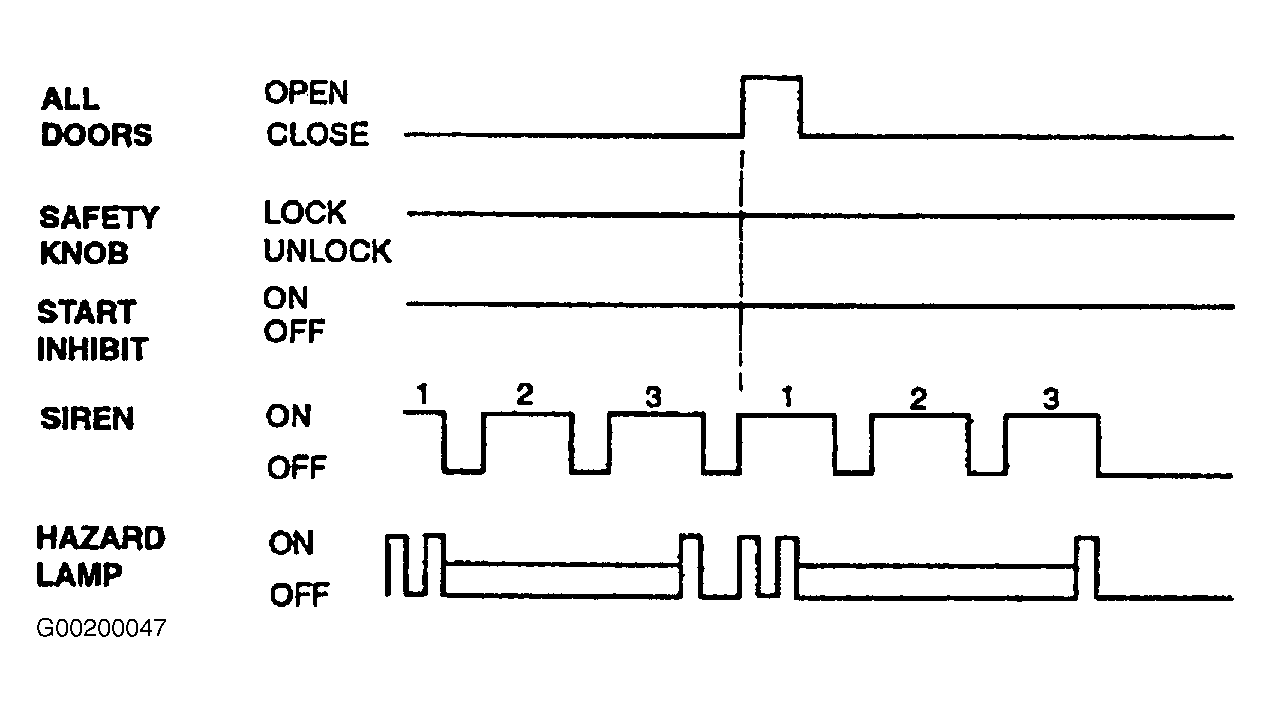

After finished siren 3 times, start inhibit is "ON" if door is opened regardless of door latch lock state.
Use illustration for timing wave form pattern. See Fig 7 .

Fig 7: After Finished Siren 3 Times Inhibit is "ON"
Courtesy of HYUNDAI MOTOR CO.

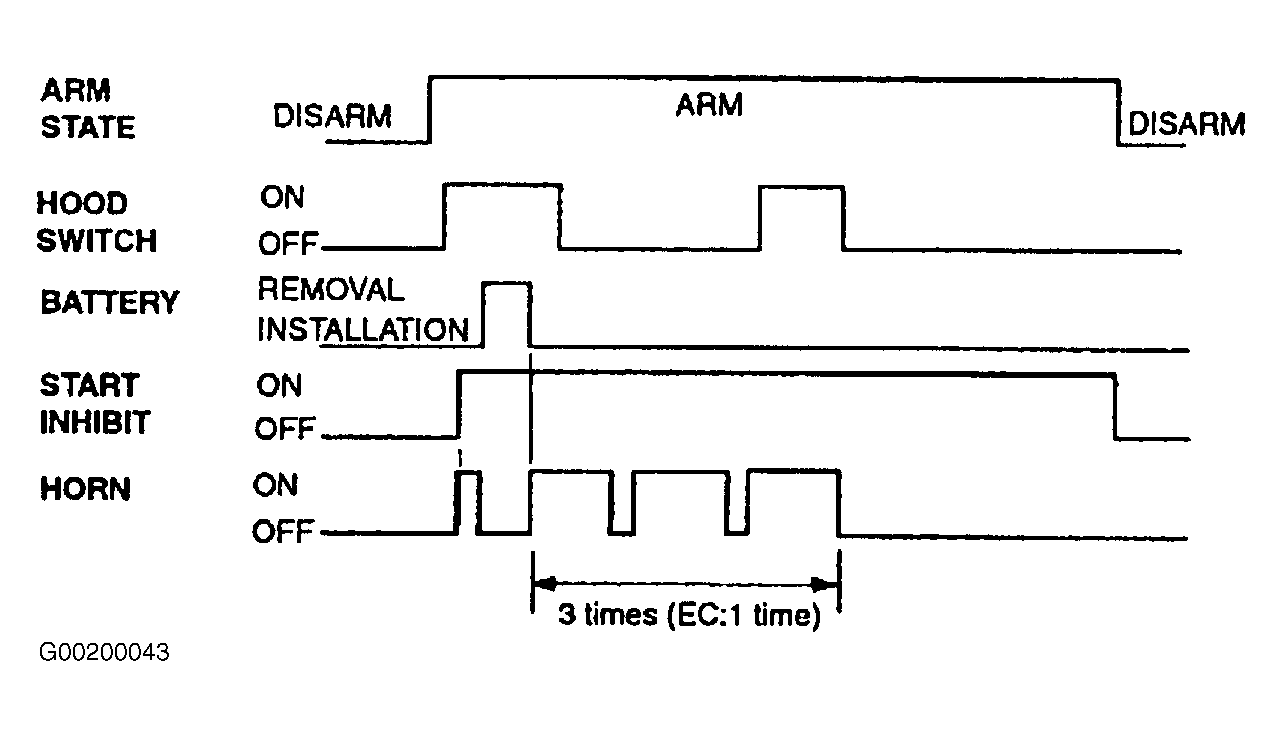

Battery is disconnected during the alarm state.
Use illustration for timing wave form pattern. See Fig 8 .

Fig 8: Battery Disconnected During Alarm State
Courtesy of HYUNDAI MOTOR CO.
