Alarm Function

Time Specification:
T1: 25-29 sec.

T2: 9-11 sec.

T3: 0.4-0.6 sec.

Use illustration for timing wave form pattern. See Fig 1 .

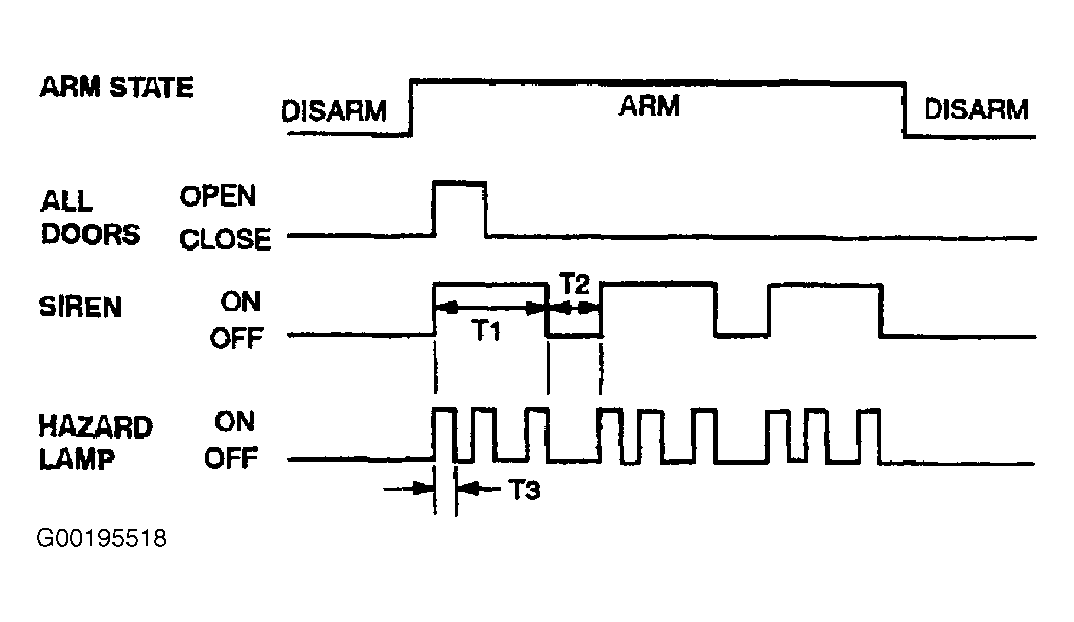

Fig 1: Checking Alarm Function
Courtesy of HYUNDAI MOTOR CO.
New alarm occurs while the alarm is sounding.
Use illustration for timing wave form pattern. See Fig 2 .

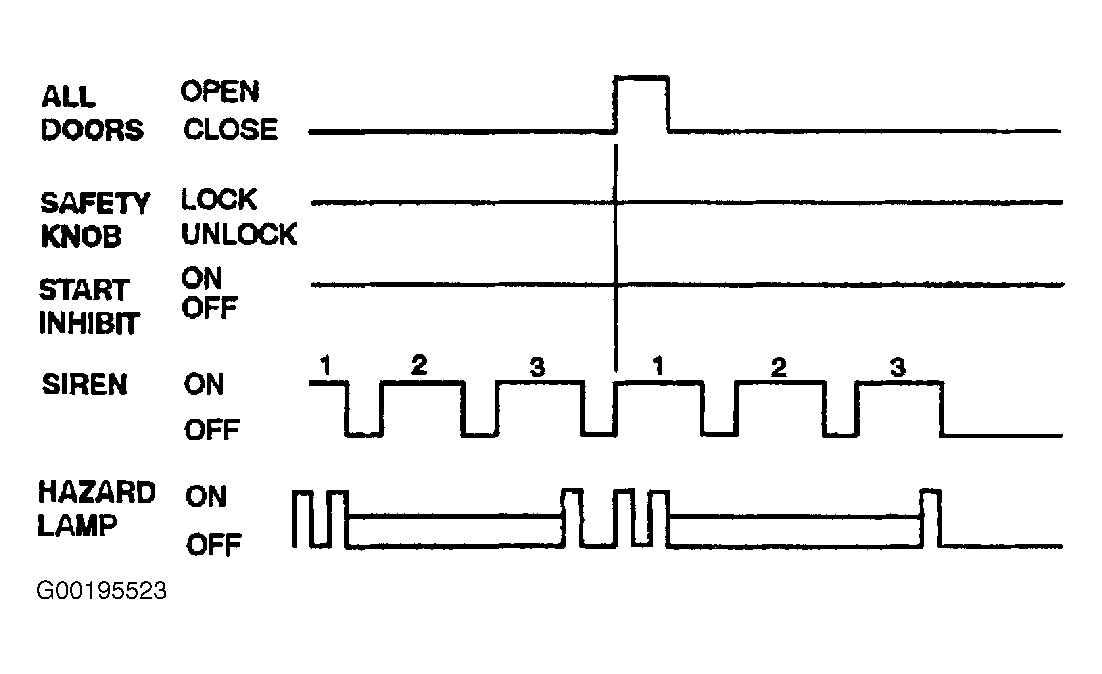

Fig 2: New Alarm Occurs While Alarm Sounding
Courtesy of HYUNDAI MOTOR CO.
Disarmed with transmitter while the alarm is sounding.
Time Specification: T1, T2, T3: 01.4-0.6 sec.

Use illustration for timing wave form pattern. See Fig 3 .

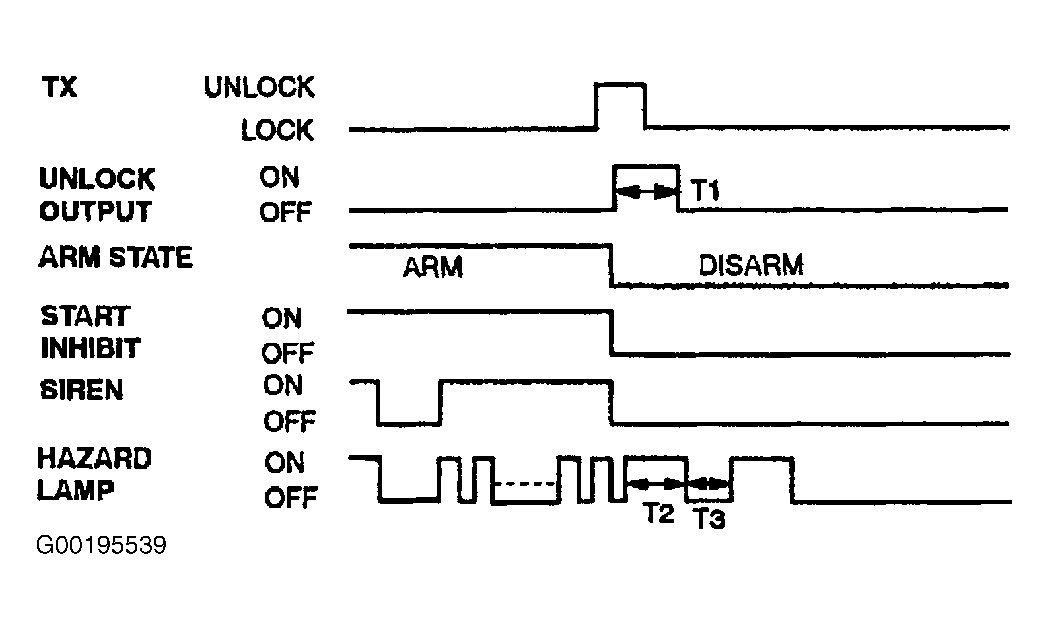

Fig 3: Disarming Transmission While Alarm Sounding
Courtesy of HYUNDAI MOTOR CO.
Transmitter lock button pressed when the door closed while the alarm is sounding. Time Specification:
T1: 0.5 sec.

T2: .8-1.2 sec.

Use illustration for timing wave form pattern. See Fig 4 .

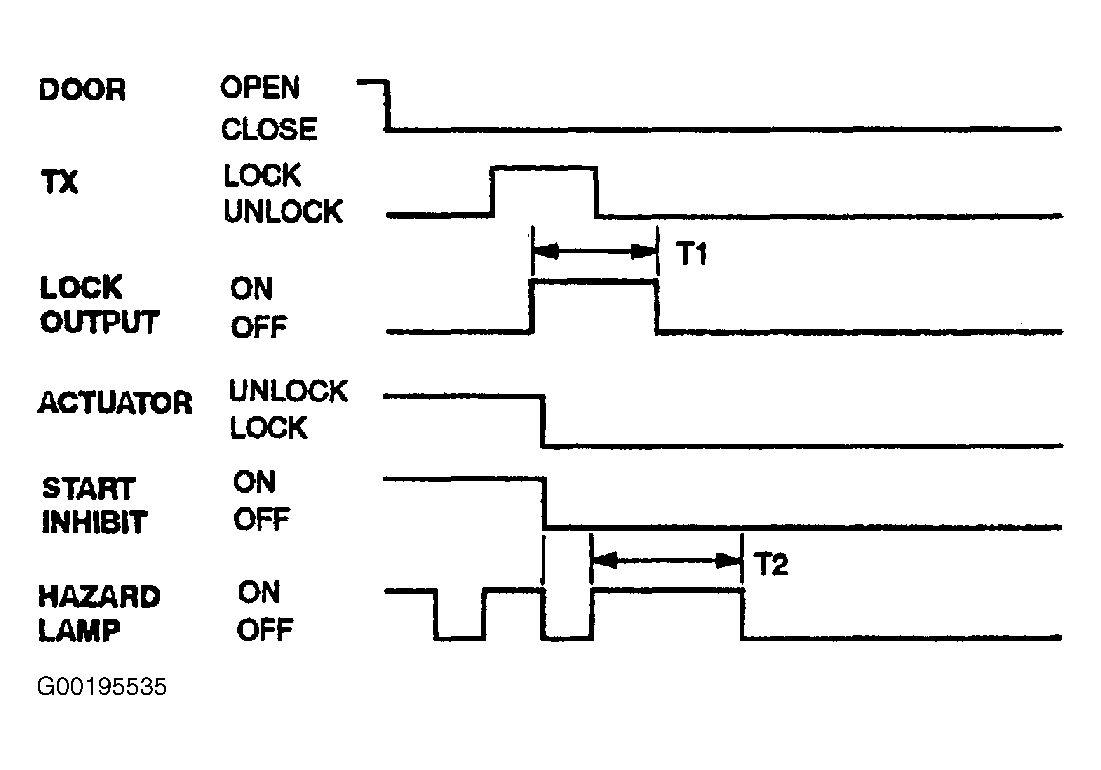

Fig 4: Lock Button Pressed While Door Closed With Alarm
Courtesy of HYUNDAI MOTOR CO.
Transmitter lock button pressed when the door opened while the alarm is sounding.
Time specification:

T1: 0.5 sec.

T2: .8-1.2 sec.

Use illustration for timing wave form pattern. See Fig 5 .

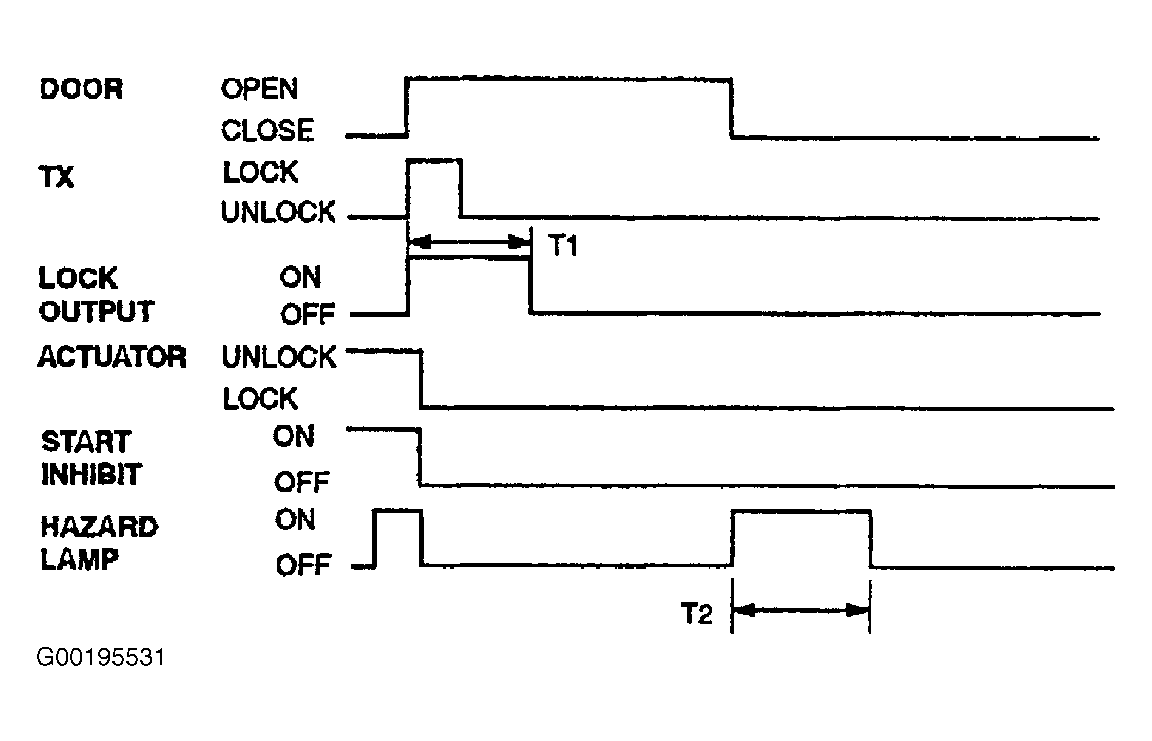

Fig 5: Lock Button Pressed While Door Opened With Alarm
Courtesy of HYUNDAI MOTOR CO.
Disarmed after 30 sec when the ignition switch is turned on while the alarm is sounding.
Use illustration for timing wave form pattern. See Fig 6 .

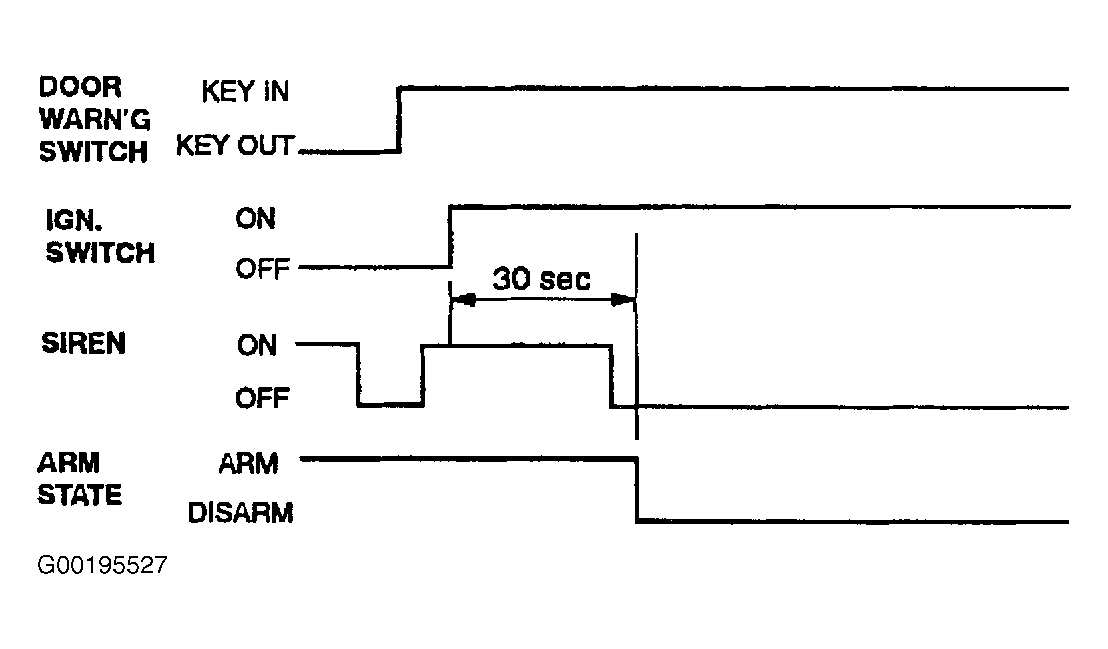

Fig 6: Disarming Ignition While Alarm Sounding
Courtesy of HYUNDAI MOTOR CO.
Start inhibit is ON regardless of door latch lock state
Use illustration for timing wave form pattern. See Fig 7 .

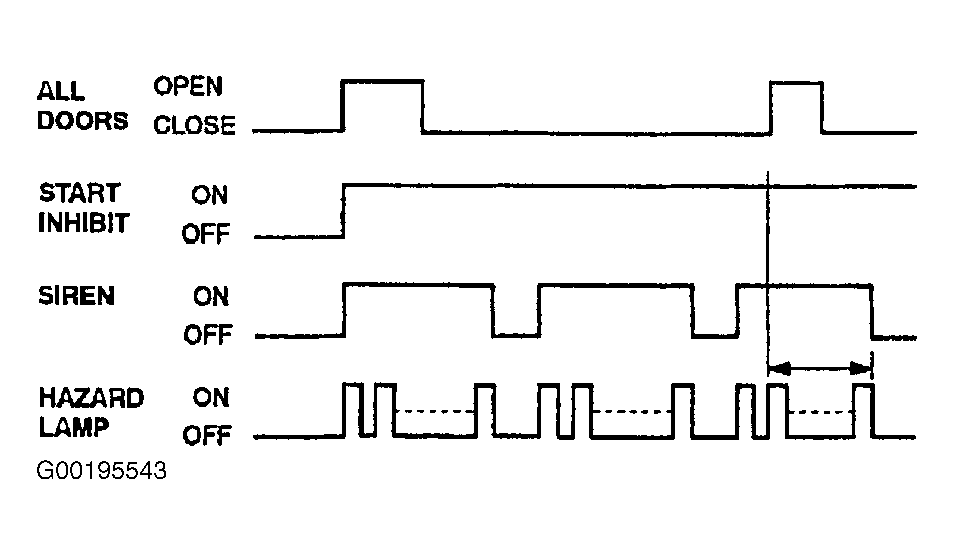

Fig 7: Inhibit is "ON" Door Latch Lock State
Courtesy of HYUNDAI MOTOR CO.
Battery is disconnected during the alarm state.
Use illustration for timing wave form pattern. See Fig 8 .

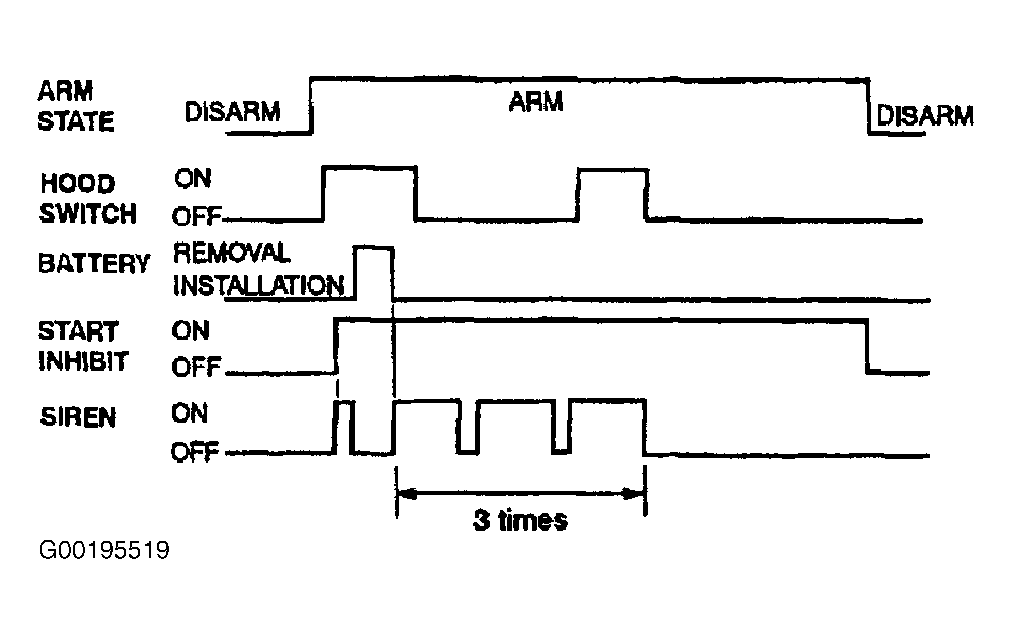

Fig 8: Battery Disconnected During Alarm State
Courtesy of HYUNDAI MOTOR CO.
