Code Saving Method

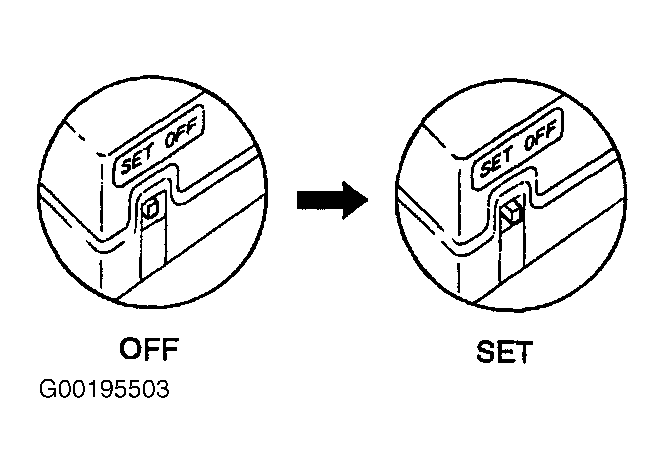

Activate the keyless entry/receiver unit and change the code saving switch of the receiver unit from OFF to SET.

The secret codes from the transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on the transmitter.

Save the 2nd transmitter code in the same manner.

Use illustration for timing wave form pattern. See Fig 1 .

Fig 1: Storing New Codes

Courtesy of HYUNDAI MOTOR CO.

Use illustration for timing wave form pattern. See Fig 2 .

Fig 2: Code Saving Switch Receiver From SET To OFF

Courtesy of HYUNDAI MOTOR CO.
