Automatic Transaxle Fluid: Replacement

If you have a fluid changer, use this changer to replace the fluid. If you do not have a fluid changer, replace the fluid using following procedure.

1. Remove the drain plug from the bottom of the transaxle case to drain the fluid
2. Install the drain plug and gasket, and tighten to the specified torque

   Tightening torque : 32 Nm (320 kg.cm, 23 lb.ft)

3. Pour the new fluid in through the oil filler tube
   CAUTION: Stop pouring if the full volume of fluid cannot be poured in.
4. Repeat the procedure in step 1 if too much fluid was added.
5. Reconnect the hose that was disconnected in step 1 above, and firmly replace the oil level gauge.
6. Start the engine and run it at idle for 1 -2 minutes.
7. Move the select lever through all positions, and then move it to the N position.
8. Drive the vehicle until the fluid temperature rises to the normal temperature (70~80°C), and then check the fluid level again. The fluid level must be at the HOT Mark.
9. Firmly insert the oil level gauge into the oil filler tube.

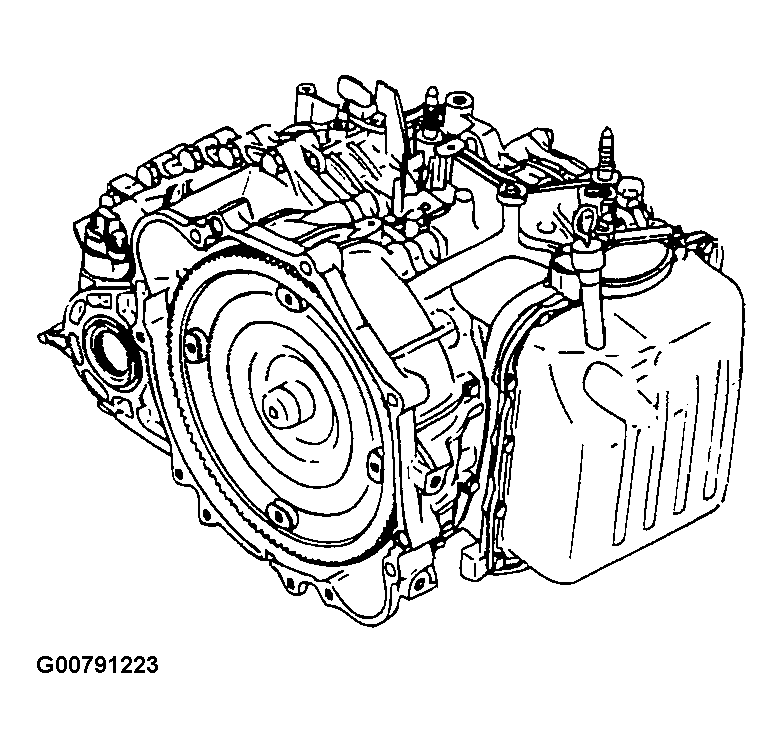

Fig 1: Identifying Transaxle Oil Filler Tube

Courtesy of HYUNDAI MOTOR CO.

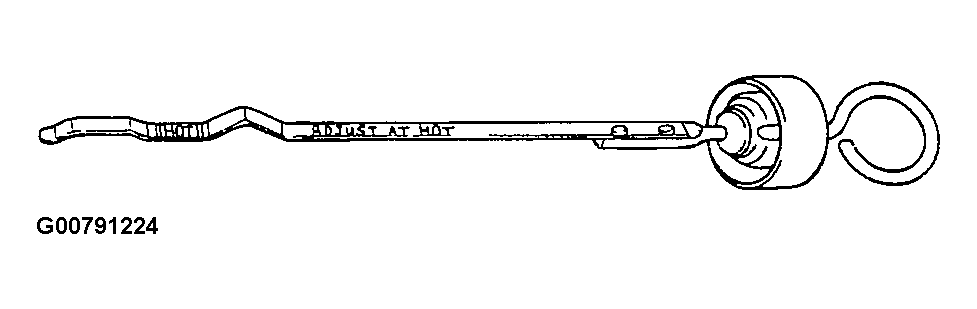

Fig 2: Identifying Transaxle Oil Filler Level Stick

Courtesy of HYUNDAI MOTOR CO.
