Inspection Procedure 12

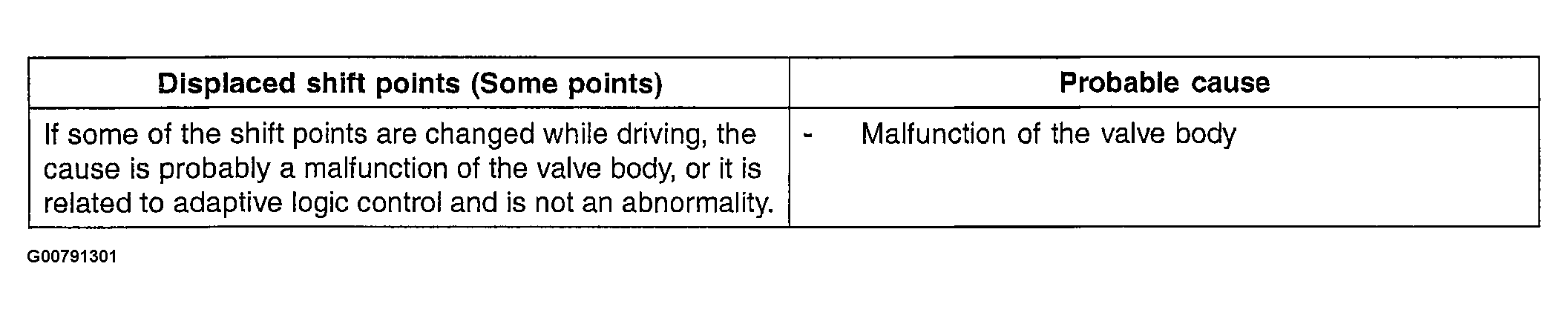

Fig 1: Inspection Procedure 12 Definitions & Probable Causes
G00791301Courtesy of HYUNDAI MOTOR CO.

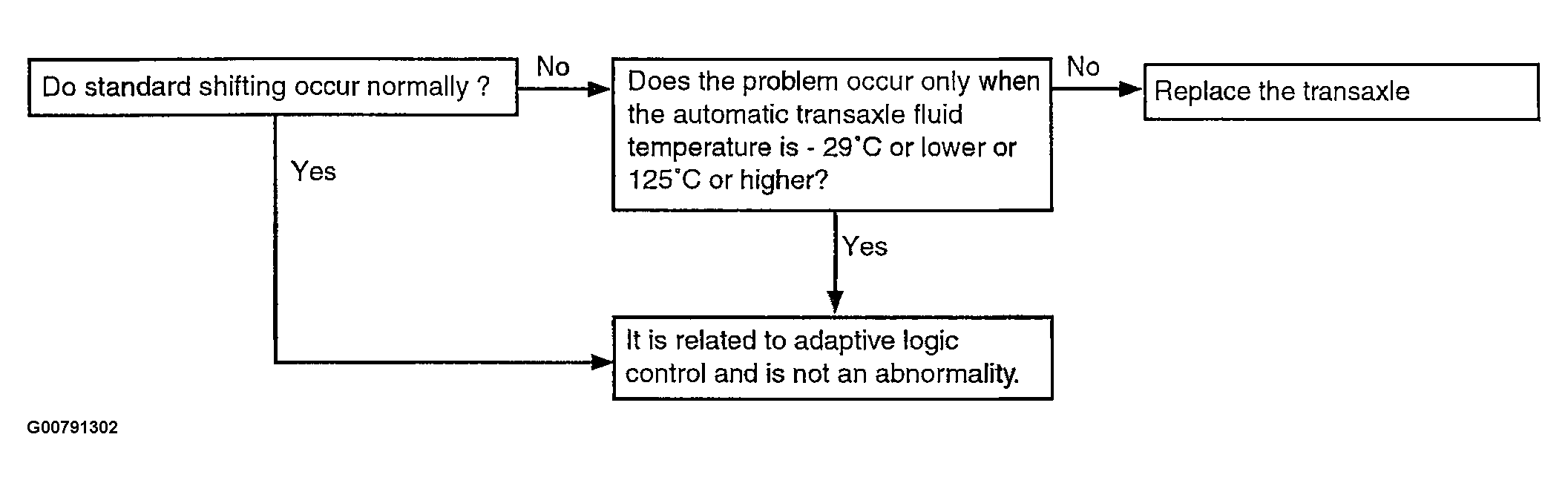

Fig 2: Inspection Procedure 12 Diagnostic Flow Chart
G00791302Courtesy of HYUNDAI MOTOR CO.
