Inspection Procedure 5

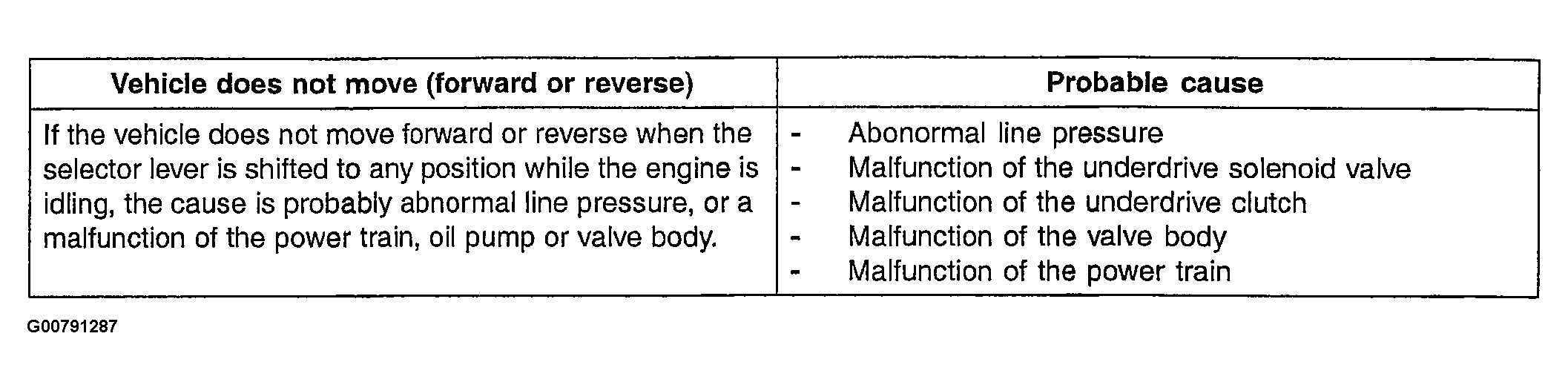

Fig 1: Inspection Procedure 5 Definitions & Probable Causes
G00791287Courtesy of HYUNDAI MOTOR CO.

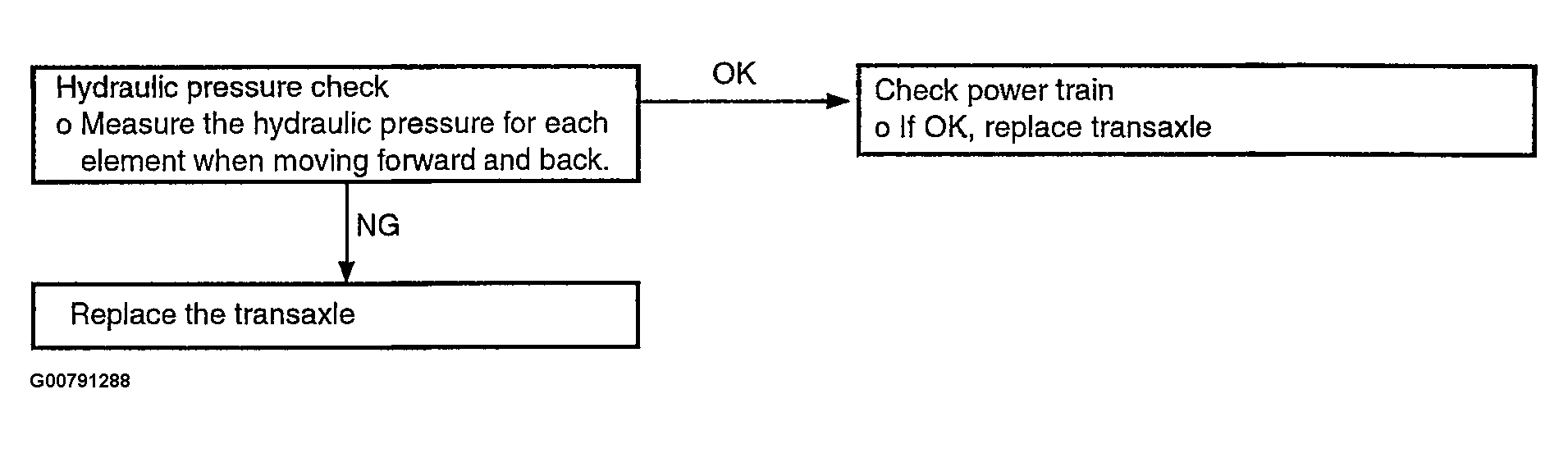

Fig 2: Inspection Procedure 5 Diagnostic Flow Chart
G00791288Courtesy of HYUNDAI MOTOR CO.
