Operating Elements And Their Function

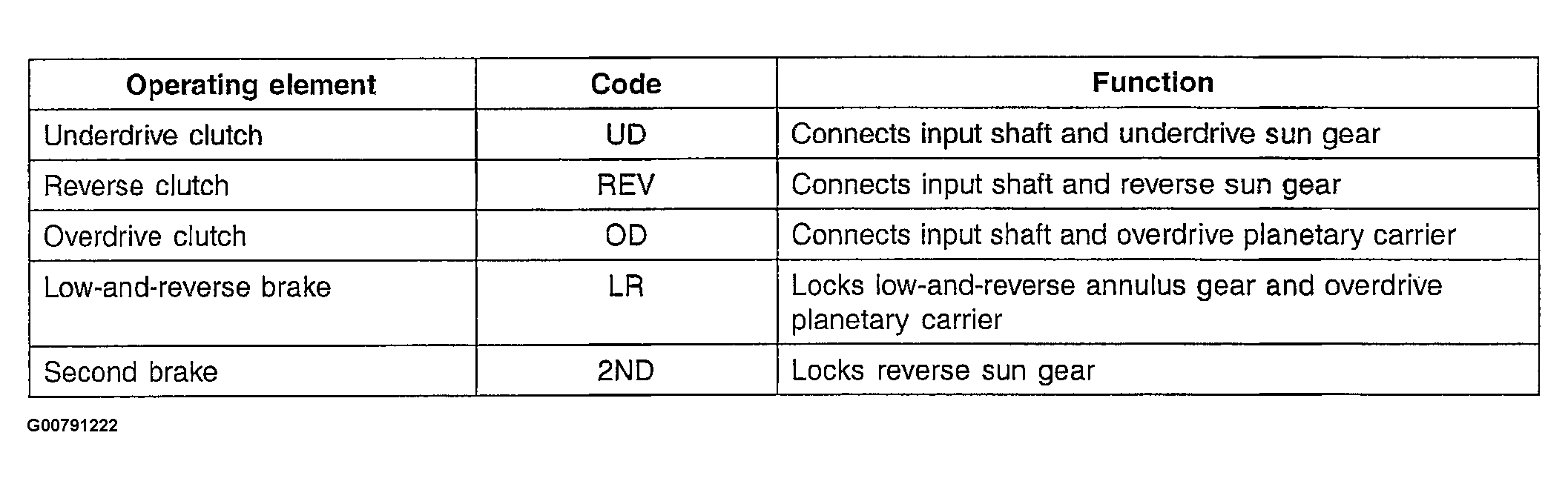

Fig 1: Operating Elements & Their Function Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
