Service Specifications

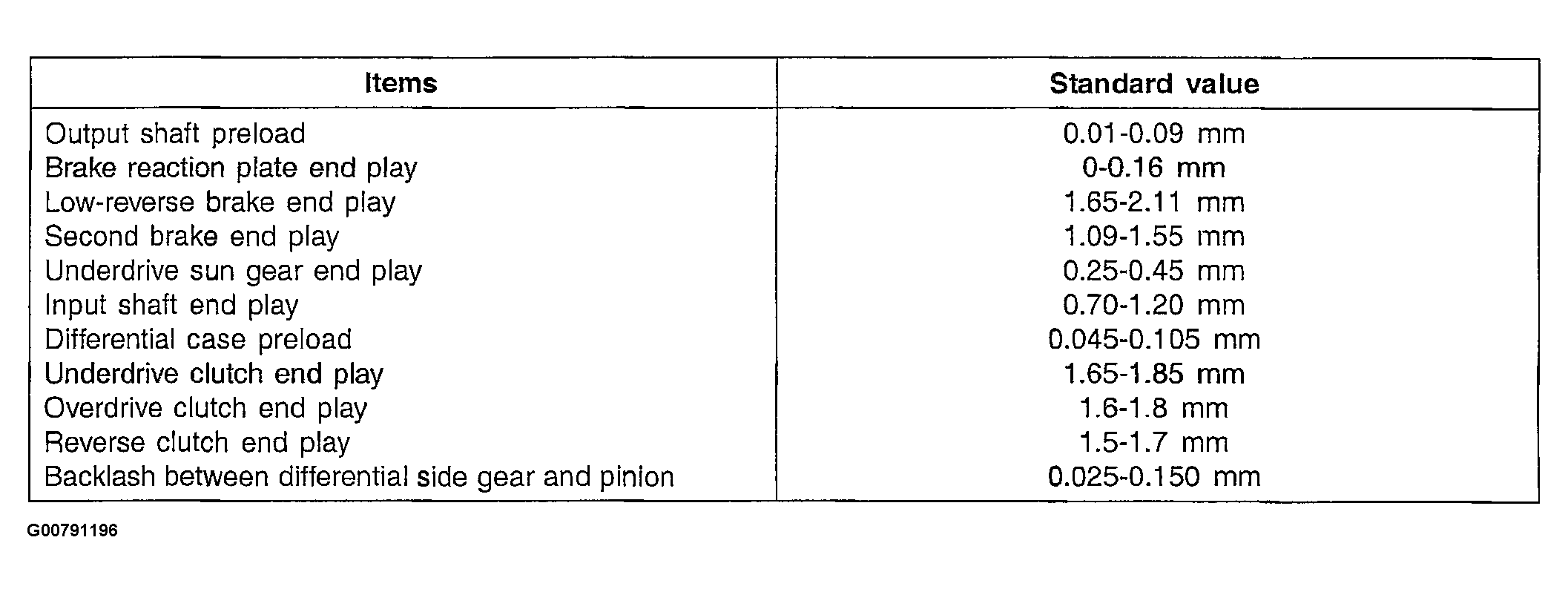

Fig 1: General Service Specifications Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
