Arm Function

Time Specification:

• T1: 0.5 sec.
• T2: 0.4-0.6 sec.
• T3: 2 sec.
• T4: Max. 2 sec.

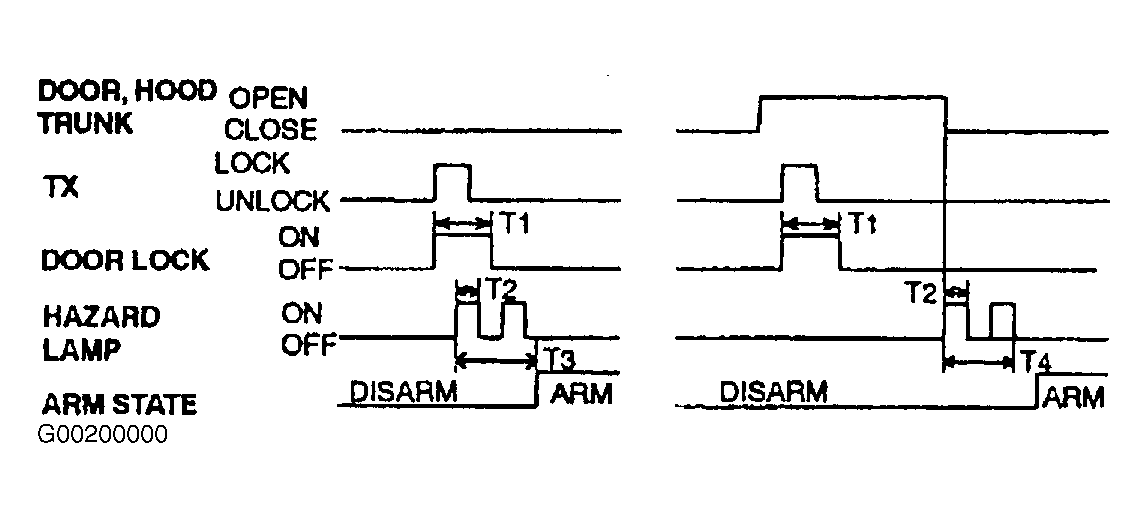

Use illustration for timing wave form pattern. See Fig 1

Fig 1: Checking Arm Function

Courtesy of HYUNDAI MOTOR CO.
