Code Saving Method (Programming Transmitter)

NOTE: DO NOT disconnect the negative (-) battery terminal.

Remove the lower crash pad panel. See Fig 1

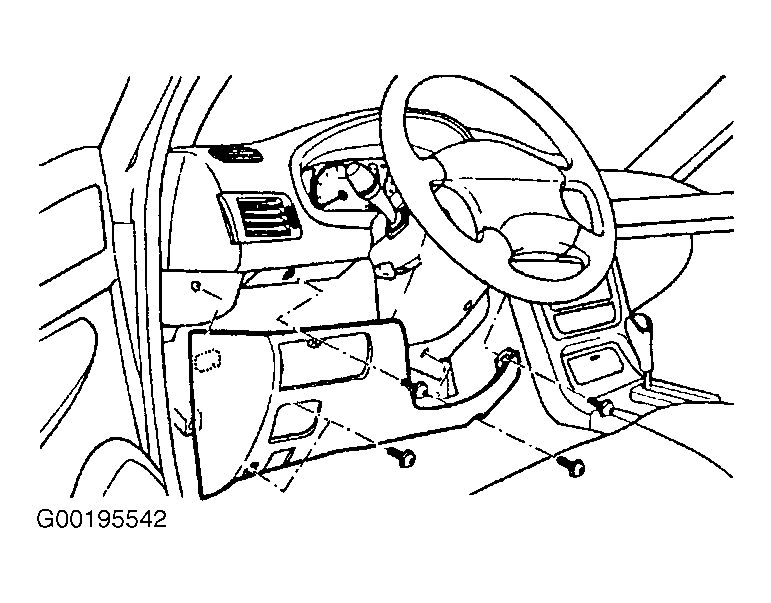

Fig 1: Removing Lower Crash Pad Panel
Courtesy of HYUNDAI MOTOR CO.
To store new codes:
- Activate the keyless entry/receiver unit and change code saving switch of the receiver unit from OFF to SET. See Fig 2
- The secret codes from the transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on the transmitter.
- Save the 2nd transmitter codes in the same matter.

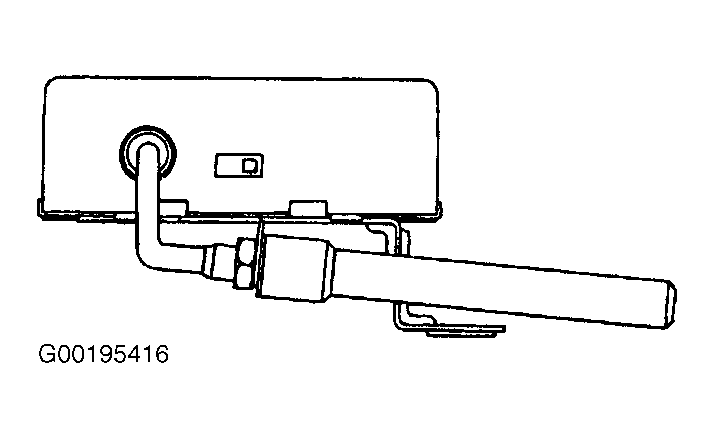

Fig 2: Identifying Keyless Entry/Receiver Unit
Courtesy of HYUNDAI MOTOR CO.
Return the code saving switch of the receiver unit from SET to OFF. See Fig 3 .

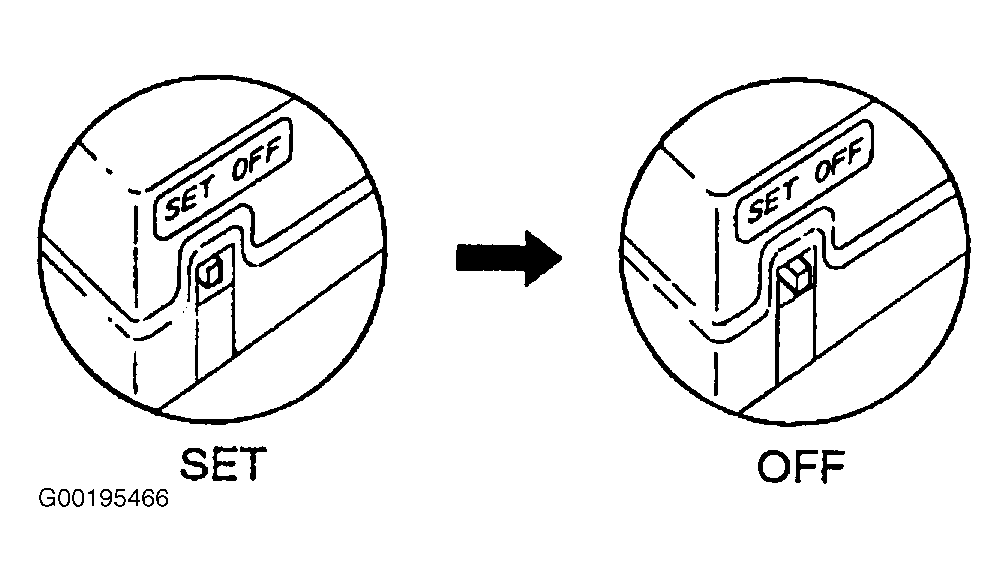

Fig 3: Saving Codes Switching Receiver "SET" To "OFF"
Courtesy of HYUNDAI MOTOR CO.
Install the lower crash pad panel.
