Quarter Glass: Installation

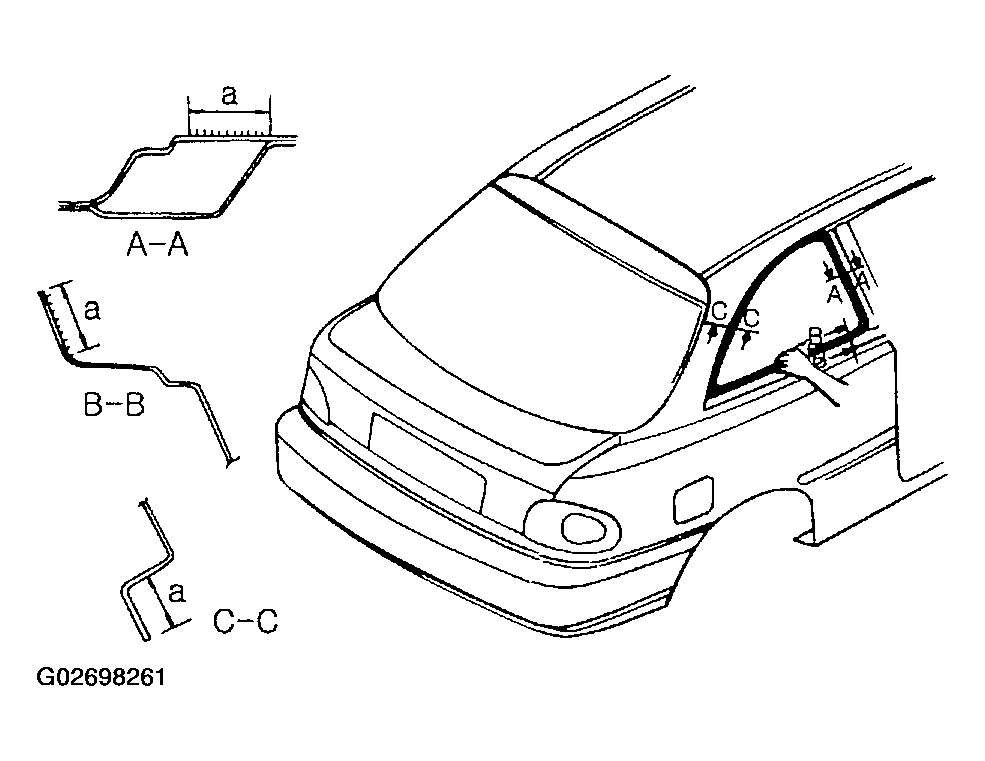

Clean the quarter fixed glass molding assembly with gause.

Fig 1: Cleaning Quarter Fixed Glass Molding
Courtesy of HYUNDAI MOTOR CO.

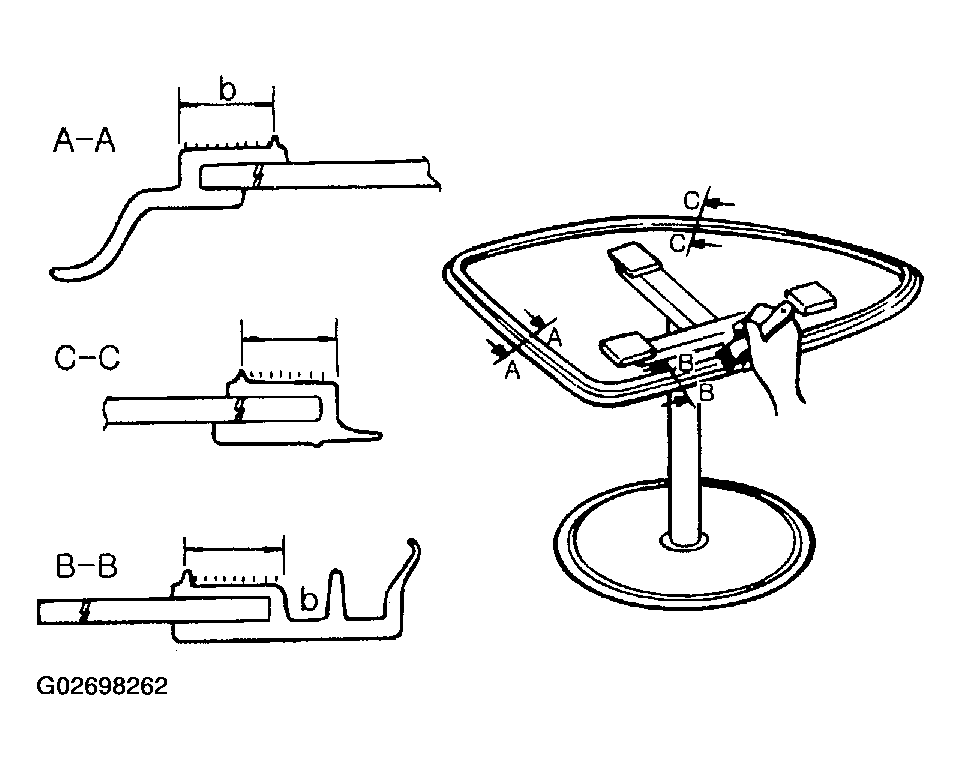

Apply a primer to the glass and the glass molding assembly.

Fig 2: Applying Primer To Glass & Molding
Courtesy of HYUNDAI MOTOR CO.

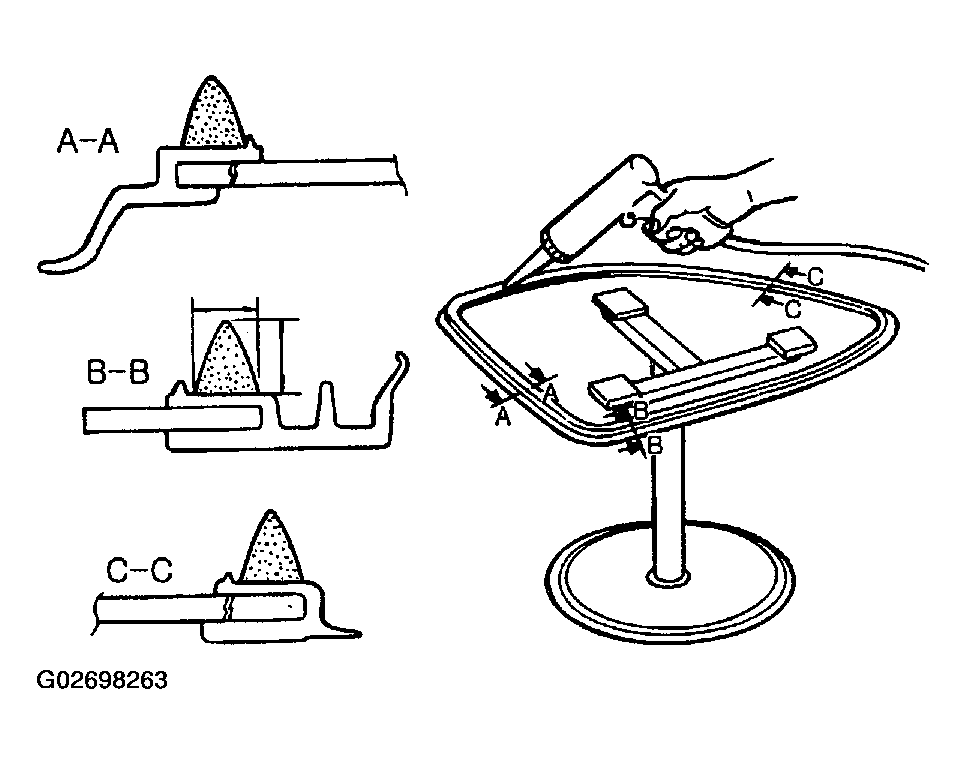

Apply the sealant to the entire circumference of the glass.
NOTE: Install the glass to the body within five minutes.

Fig 3: Applying Sealant To Glass
Courtesy of HYUNDAI MOTOR CO.

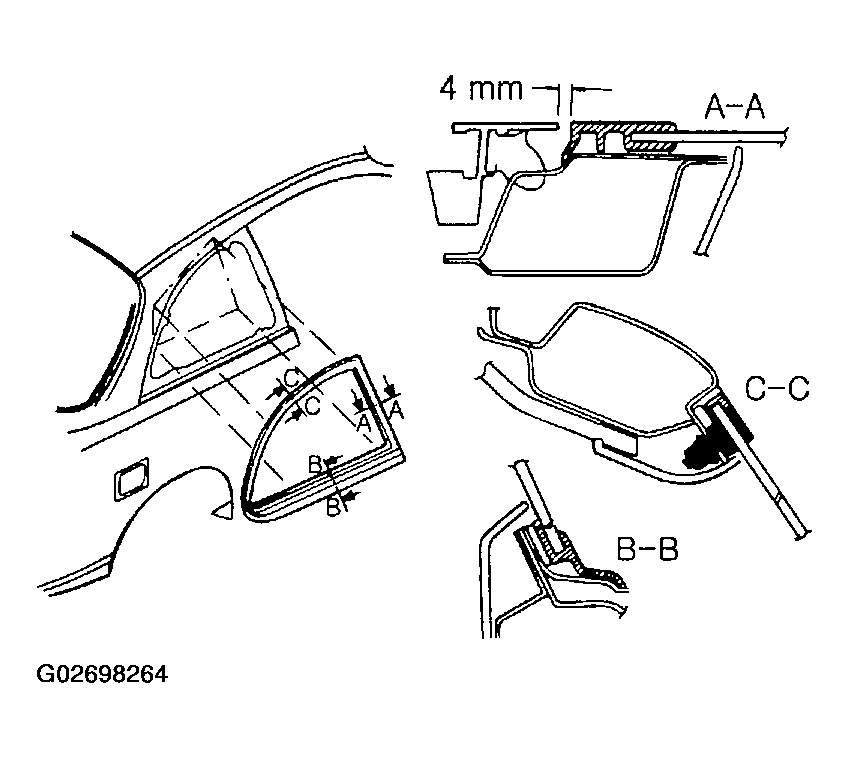

To install the quarter fixed glass, tighten the glass molding installing nuts. After setting it to the quarter fixed glass hole.

Fig 4: Installing Quarter Fixed Glass
Courtesy of HYUNDAI MOTOR CO.
