Windshield Glass: Removal

To remove the windshield, first remove the following parts
1. Front pillar trims
2. Inside rear view mirror
3. Wiper arms
4. Weatherstrip and cowl top cover
5. Windshield glass molding

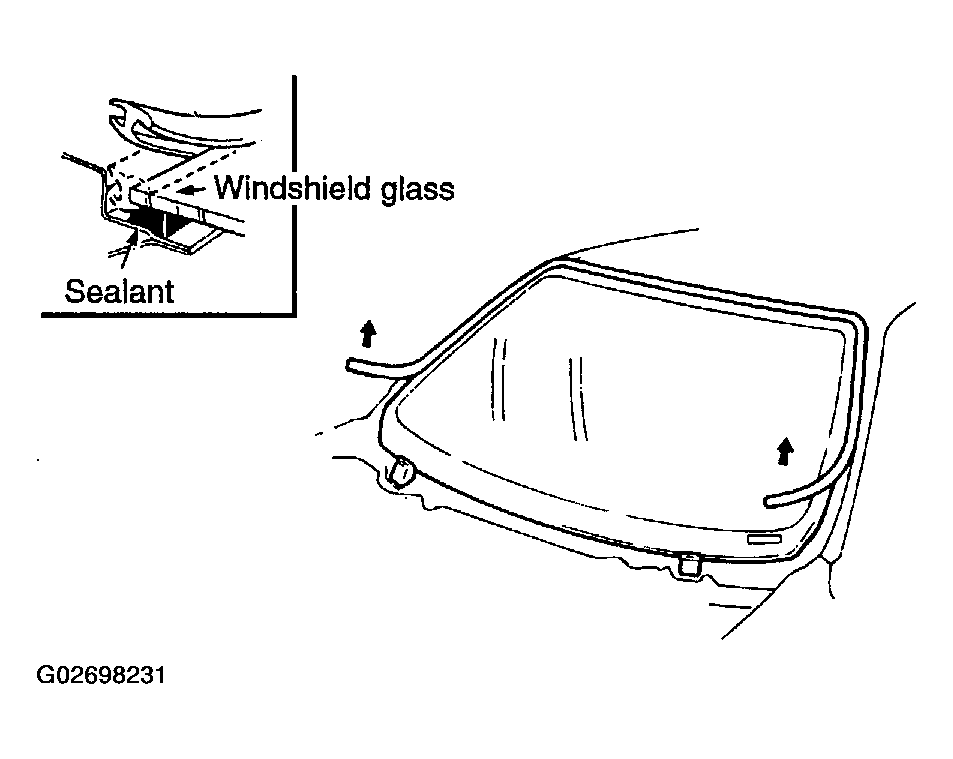

Fig 1: Removing Windshield Glass Molding
Courtesy of HYUNDAI MOTOR CO.
Use the special tool (09861-31100) to cut through the sealant.

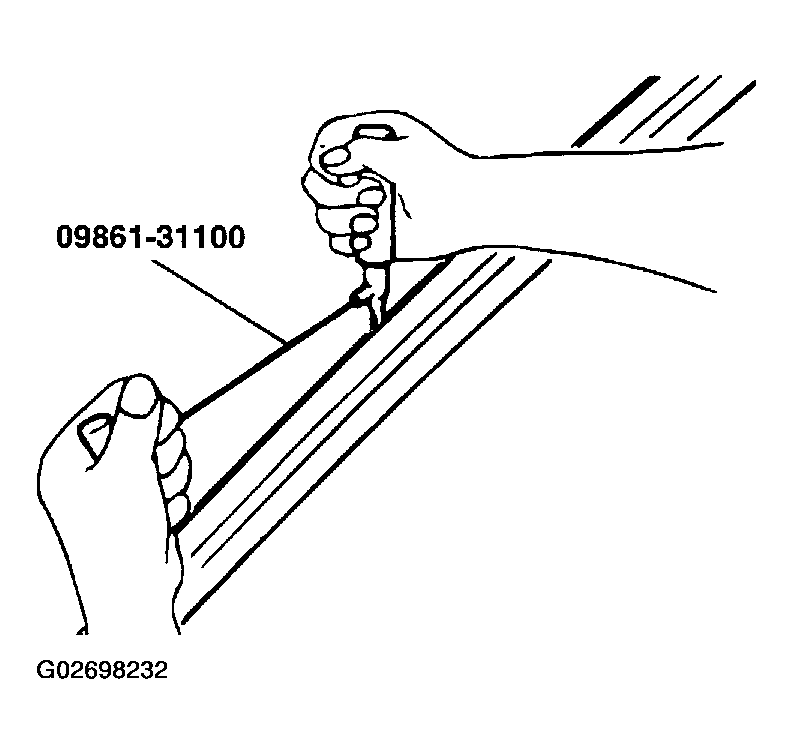

Fig 2: Cutting Through Sealant
Courtesy of HYUNDAI MOTOR CO.
Make mating marks on the glass and body if the glass is to be reinstalled.

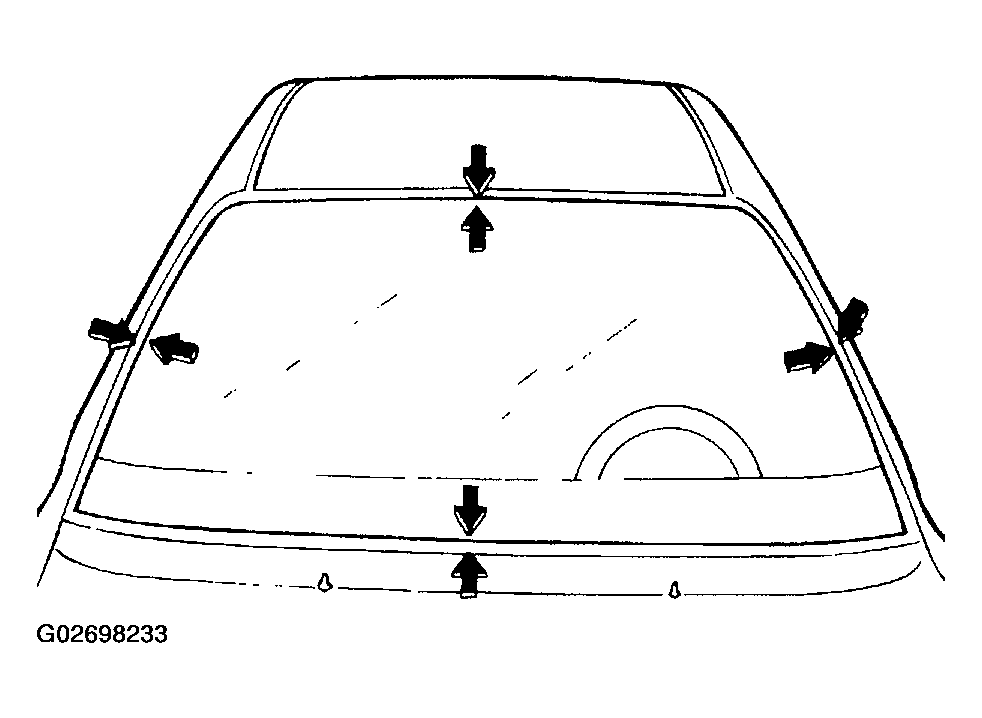

Fig 3: Identifying Reference Marks On Glass & Body For Reinstallation
Courtesy of HYUNDAI MOTOR CO.
Take out the windshield glass with the special tool (09861-31400).

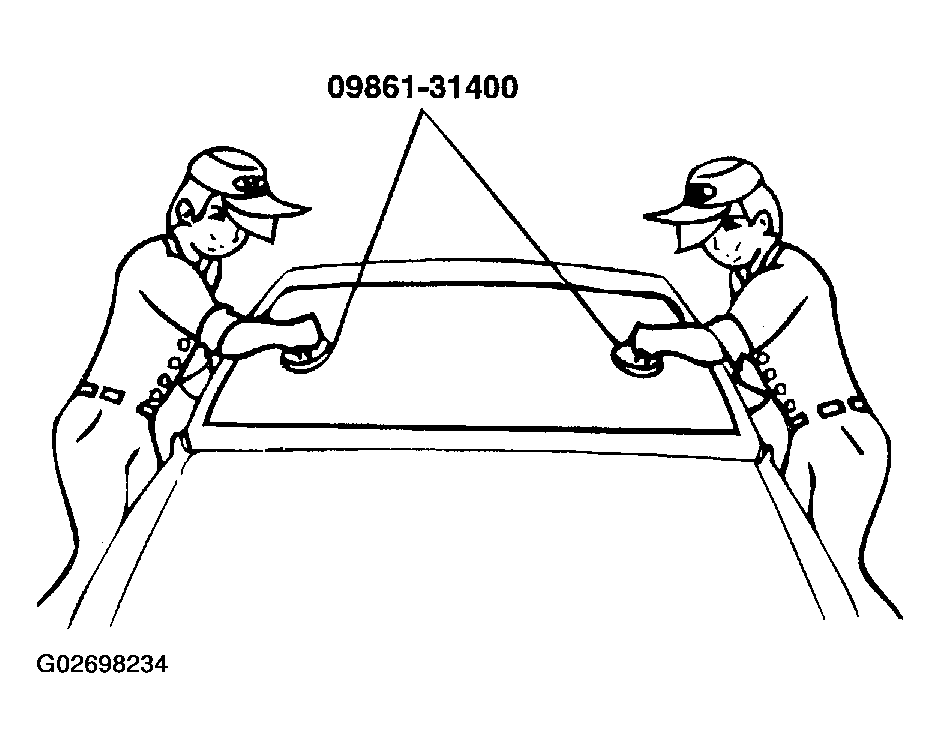

Fig 4: Removing Windshield Glass
Courtesy of HYUNDAI MOTOR CO.
