Bench Testing: Rotor

  1. Measure resistance between rotor slip rings. See Fig 1 . Resistance should be 3.1 ohms. If resistance is as specified, go to next step. If resistance is extremely low or high, replace rotor assembly.
  2. Check continuity between each slip ring and rotor core. See Fig 2 . There should be no continuity between either slip ring and rotor core. If continuity exists, rotor is shorted internally. Replace rotor assembly.

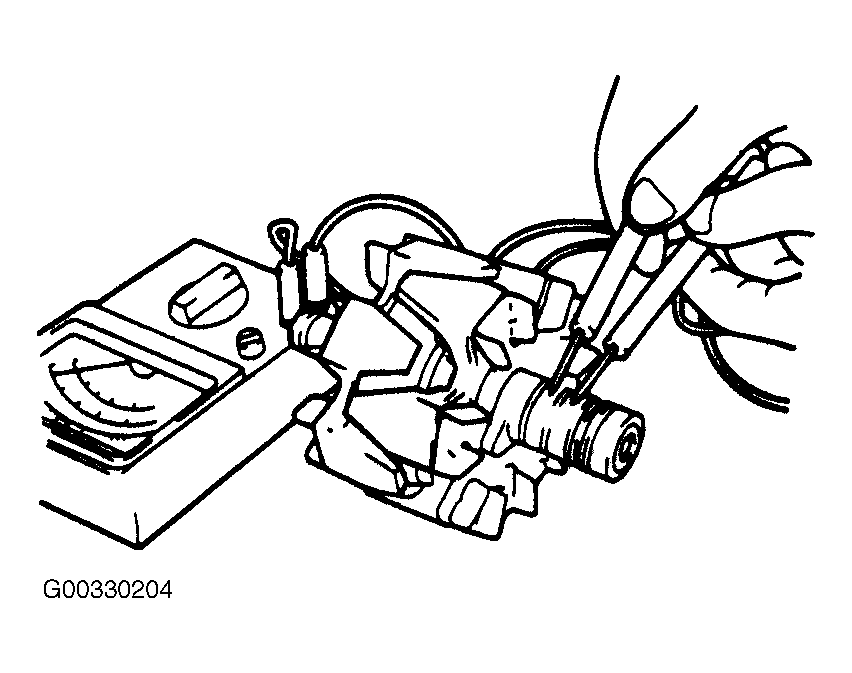

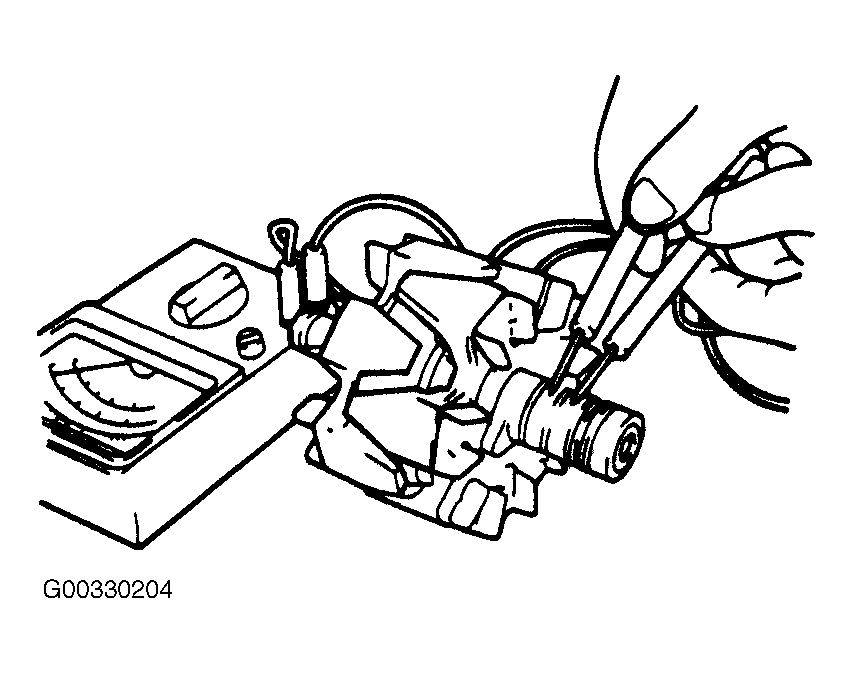

Fig 1: Checking Rotor For Continuity
G00330204Courtesy of HYUNDAI MOTOR CO.

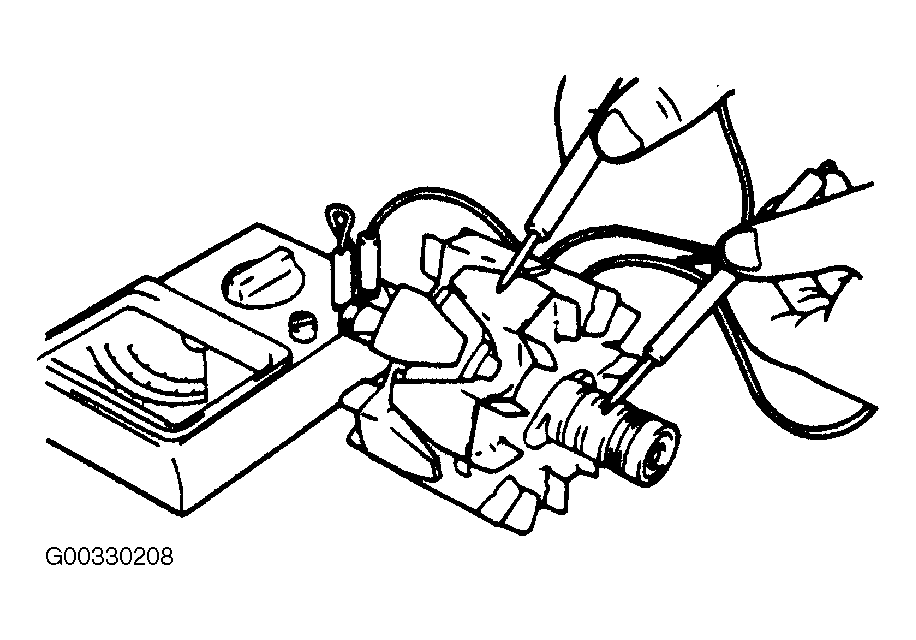

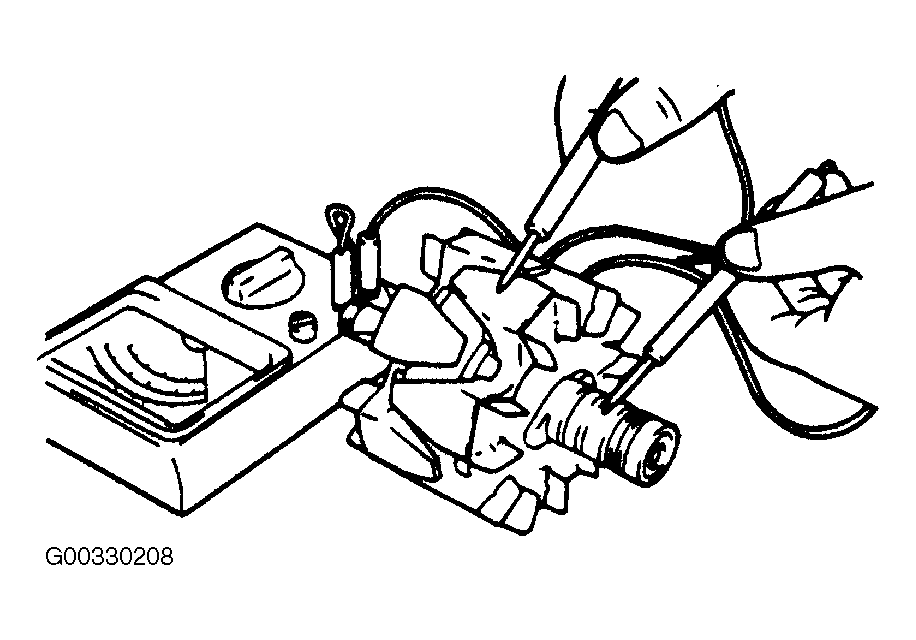

Fig 2: Checking Rotor For Short To Ground
G00330208Courtesy of HYUNDAI MOTOR CO.
