Component Locations

COMPONENT LOCATIONS

Component	Location
Battery	Left Front Of Engine Compartment. See Fig 1 .
Electronic Time & Alarm Control Module (ETACM)	Behind Instrument Panel Trim, Left Of Steering Column. See Fig 2 .
Engine Compartment Relay & Fuse Box	Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 .
Fusible Link	In Engine Compartment Relay & Fuse Box. See Fig 3 .
Starter	Left Front Of Engine. Fig 1 .
Starter Clutch Position Switch	Under Left Side Of Dash. Fig 4 .
Starter Relay	In Engine Compartment Fuse Box. See Fig 3 .
Transaxle Range Switch	On Top Left Of Transaxle. Fig 5 .

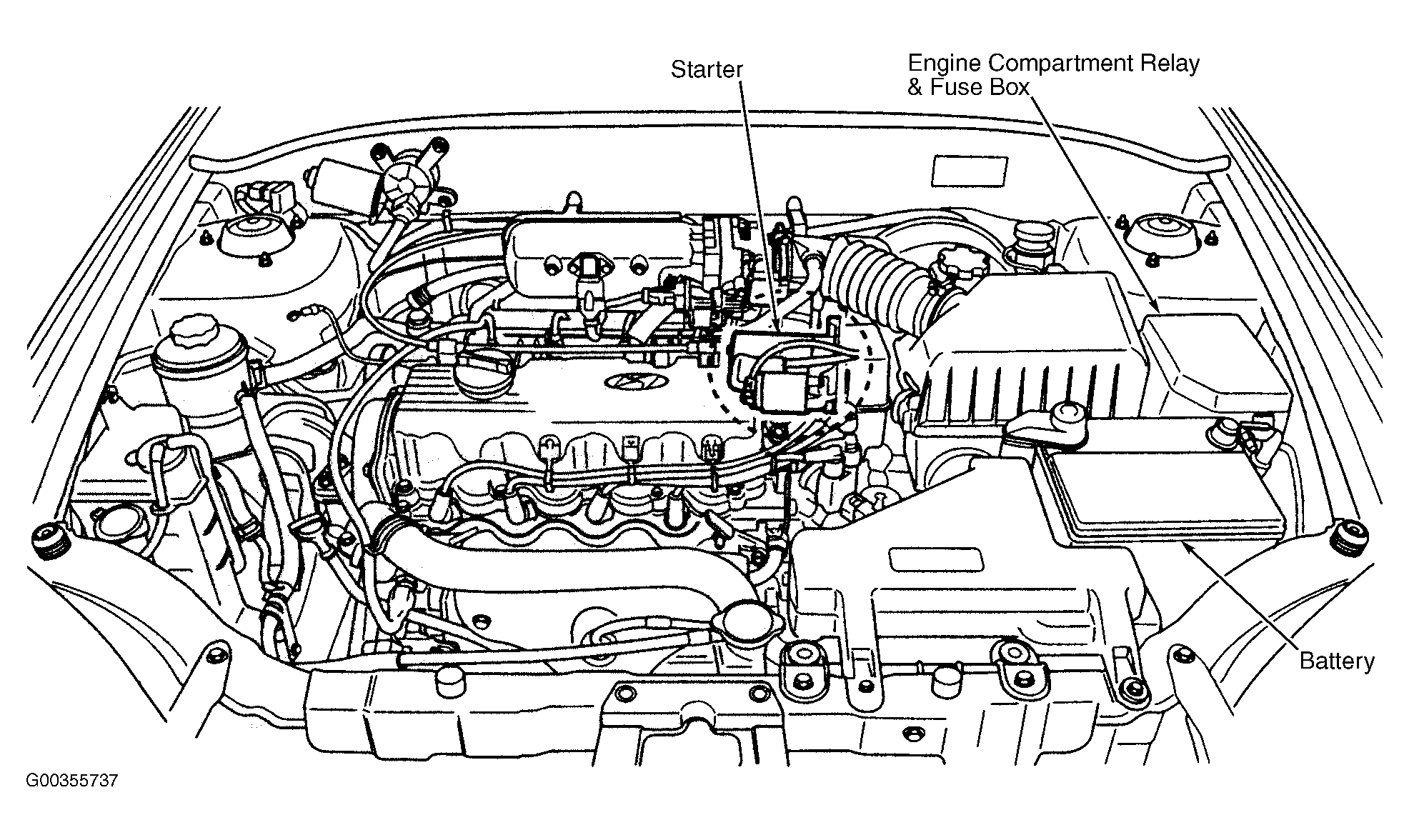

Fig 1: Locating Battery, Starter & Engine Compartment Relay & Fuse Box

Courtesy of HYUNDAI MOTOR CO.

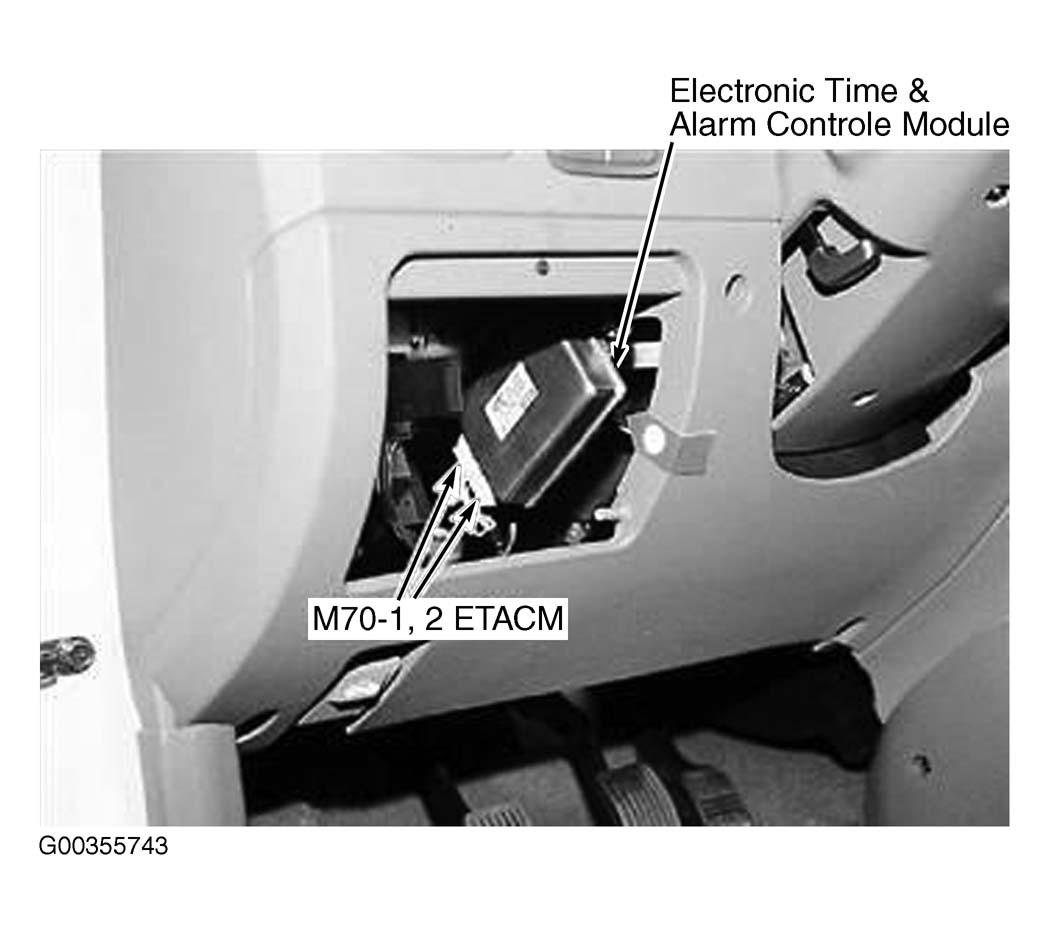

Fig 2: Locating Electronic Time & Alarm Control Module

Courtesy of HYUNDAI MOTOR CO.

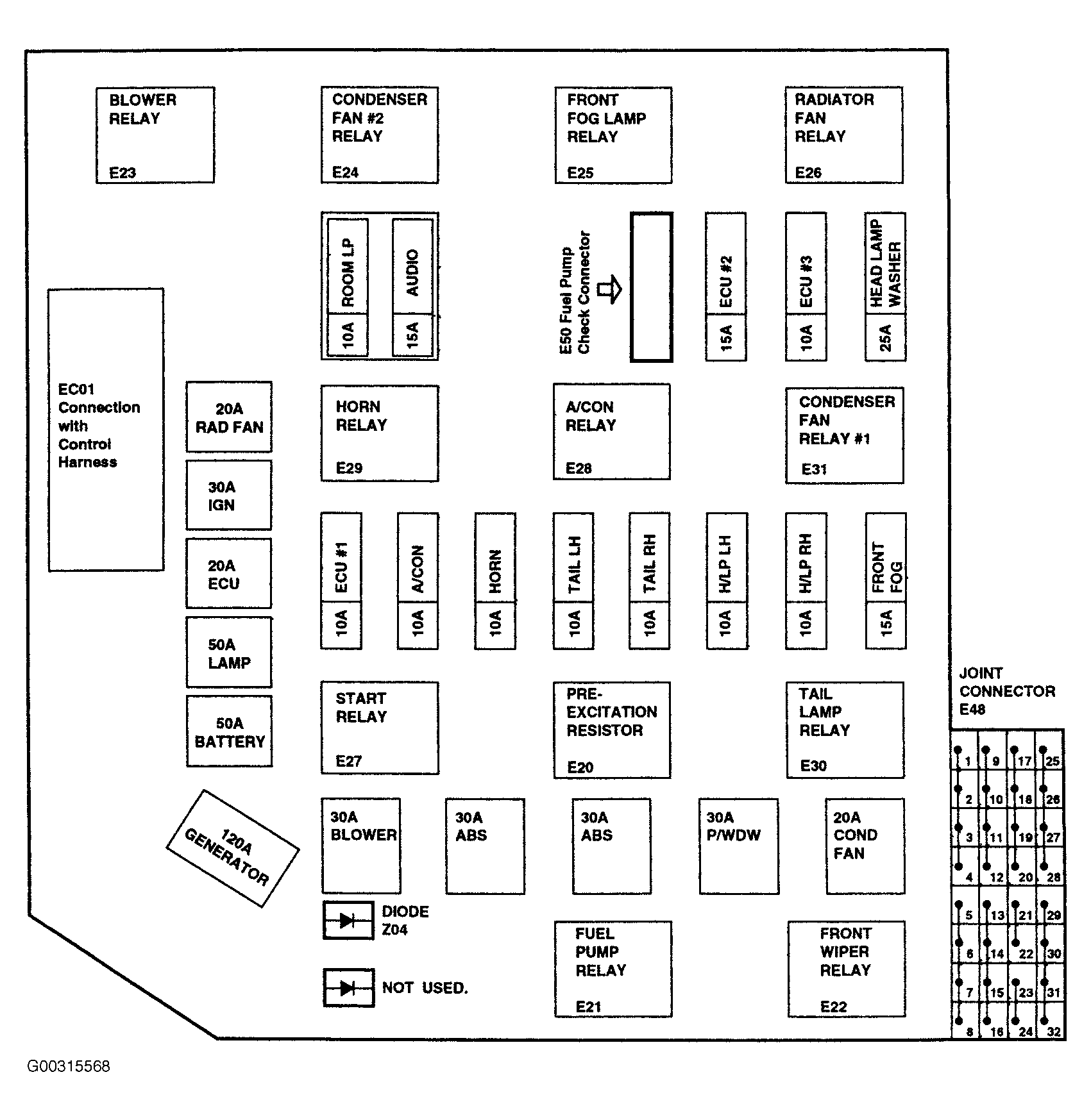

Fig 3: Locating Starter Relay

Courtesy of HYUNDAI MOTOR CO.

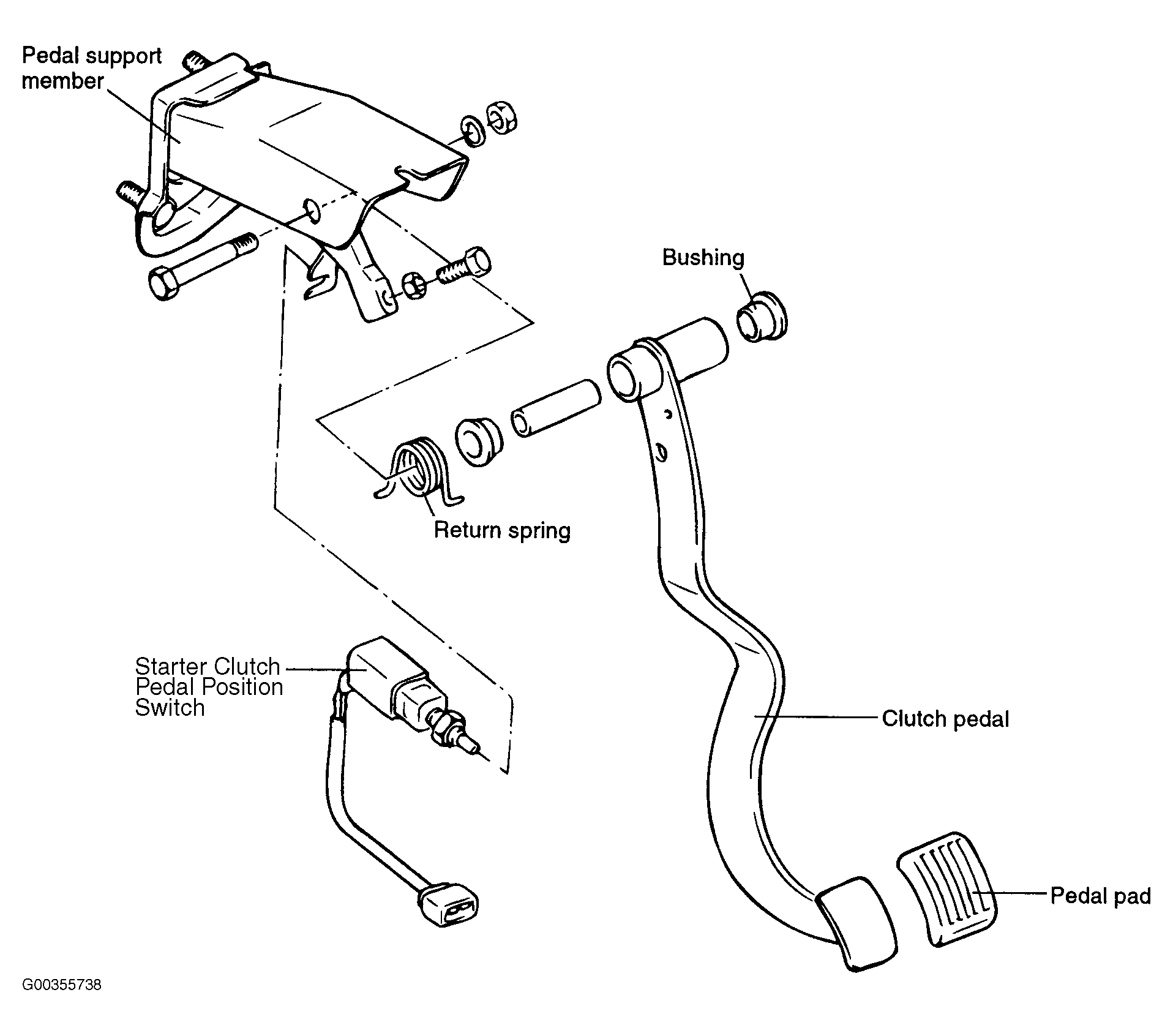

Fig 4: Locating Starter Clutch Pedal Position Switch

Courtesy of HYUNDAI MOTOR CO.

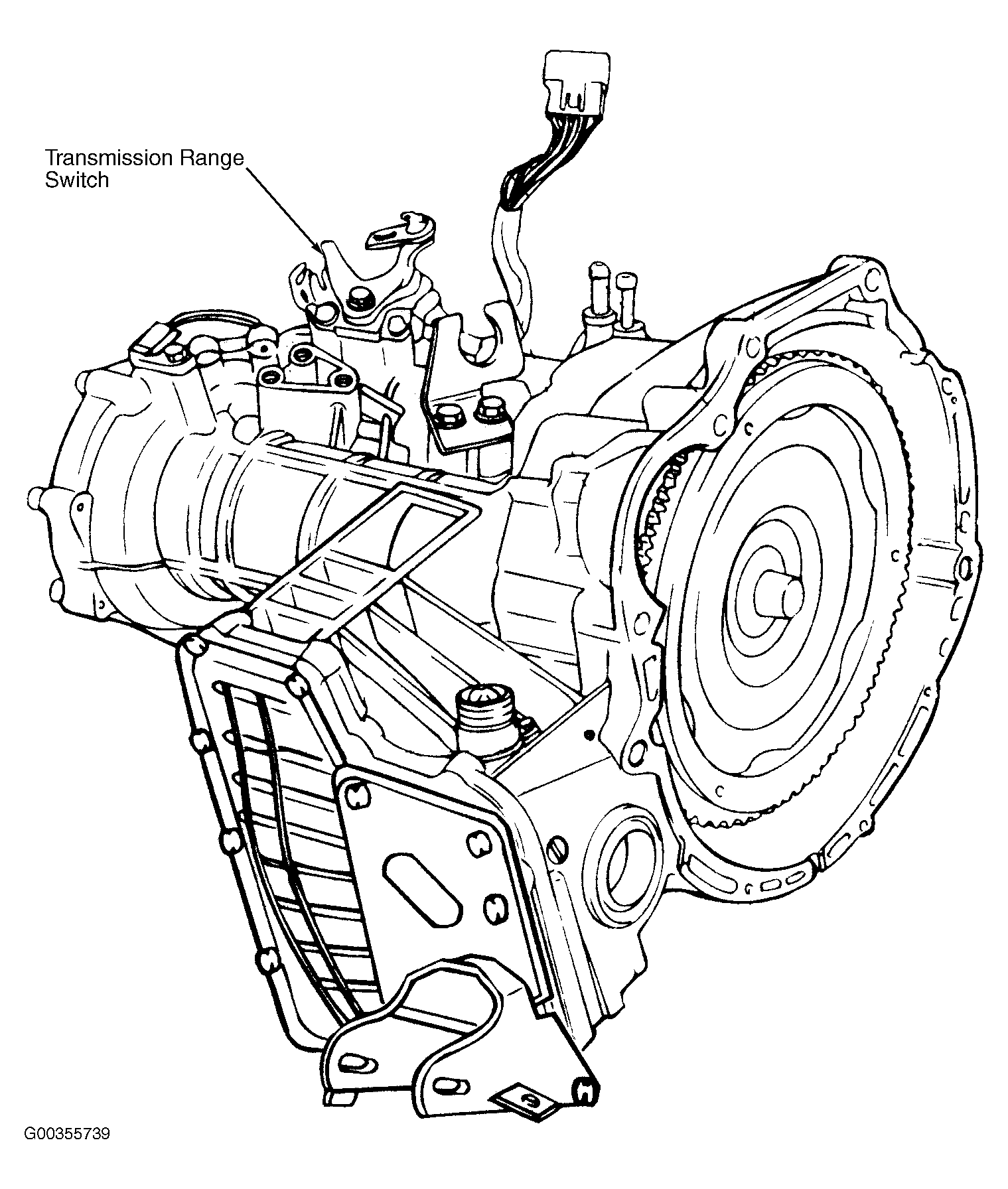

Fig 5: Locating Transmission Range Switch

Courtesy of HYUNDAI MOTOR CO.
