Park/Neutral Position Switch

  1. Disconnect park/neutral position switch harness connector. Ensure continuity exists between terminals No. 7 and 8 when shift lever is in Park and Neutral. See Fig 1 .
  2. If continuity does not exist, check park/neutral position switch adjustment. See PARK/NEUTRAL POSITION SWITCH  under ADJUSTMENTS. If park/neutral position switch adjustment is okay, replace park/neutral switch.

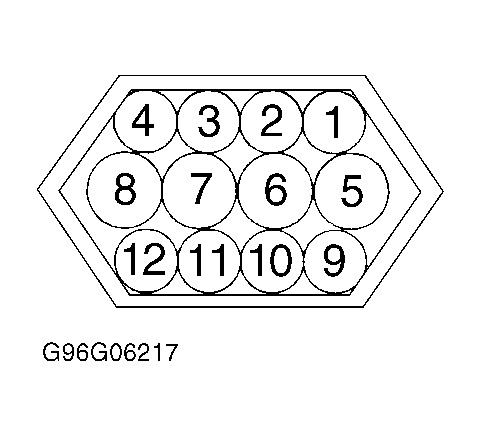

Fig 1: Identifying Park/Neutral Position Switch Terminals
G96G06217Courtesy of HYUNDAI MOTOR CO.
