Connector Terminal Identification

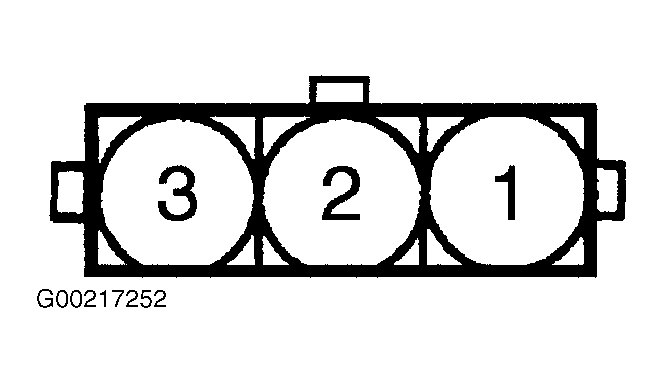

Fig 1: Identifying Acceleration Sensor & Camshaft Position Sensor Harness Connectors Terminals
G00217252Courtesy of HYUNDAI MOTOR CO.

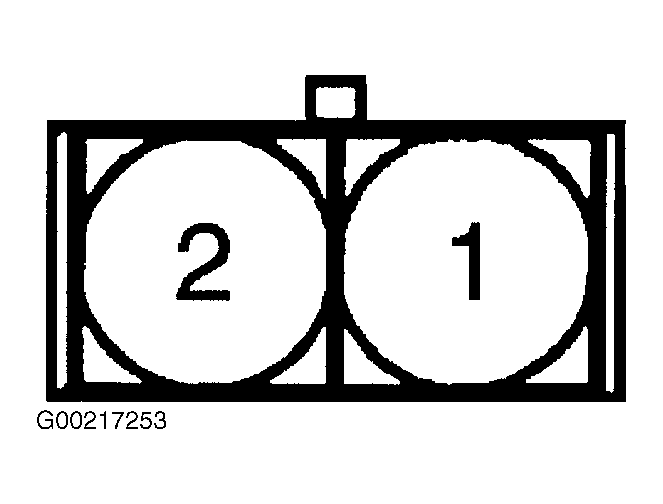

Fig 2: Identifying Crankshaft Position Sensor & Purge Control Solenoid Valve Harness Connectors Terminals
G00217253Courtesy of HYUNDAI MOTOR CO.

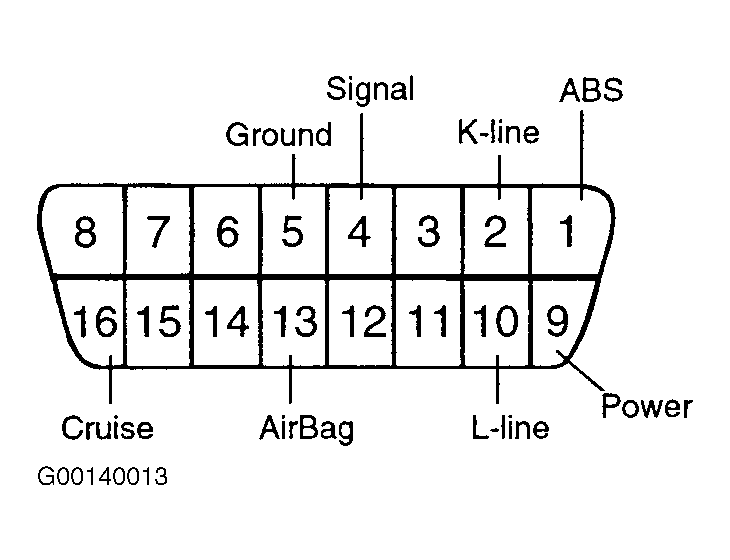

Fig 3: Identifying Data Link Connector Terminals
G00140013Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Engine Control Module Connector Terminals
G00009435Courtesy of HYUNDAI MOTOR CO.

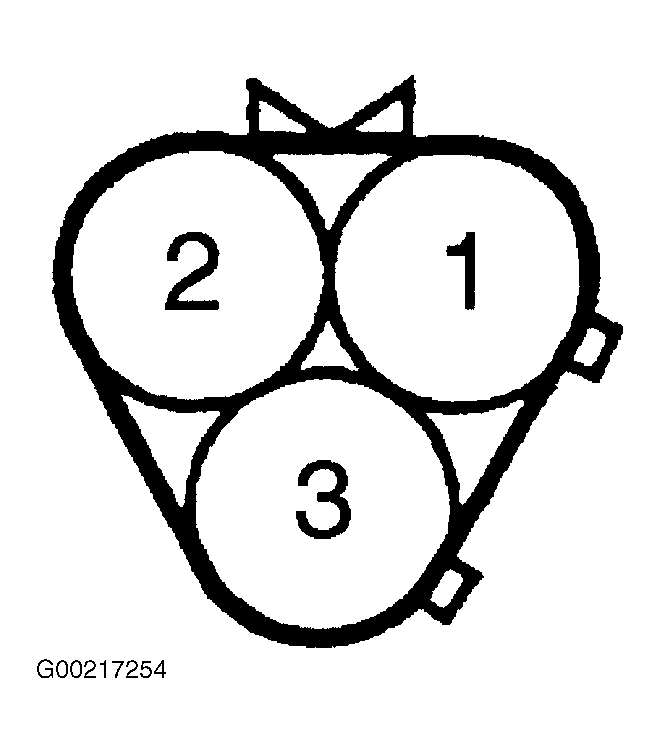

Fig 5: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
G00217254Courtesy of HYUNDAI MOTOR CO.

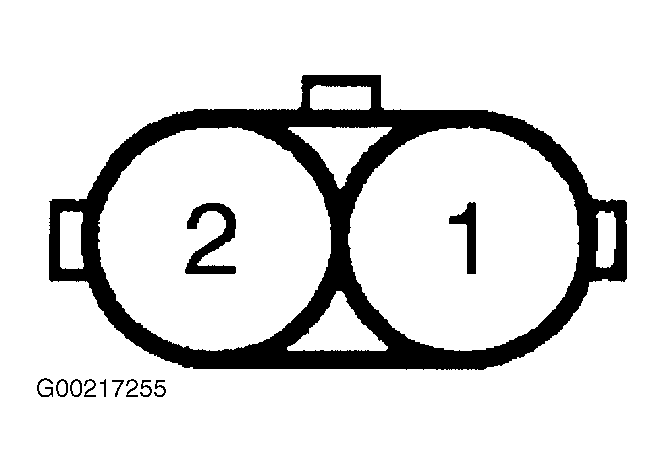

Fig 6: Identifying Fuel Injector Harness Connector Terminals
G00217255Courtesy of HYUNDAI MOTOR CO.

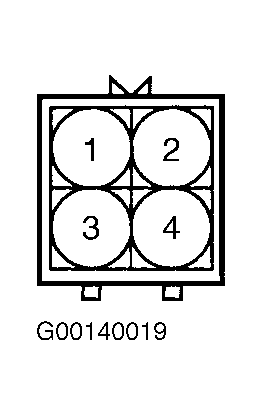

Fig 7: Identifying Heated Oxygen Sensor Connector Terminals
G00140019Courtesy of HYUNDAI MOTOR CO.

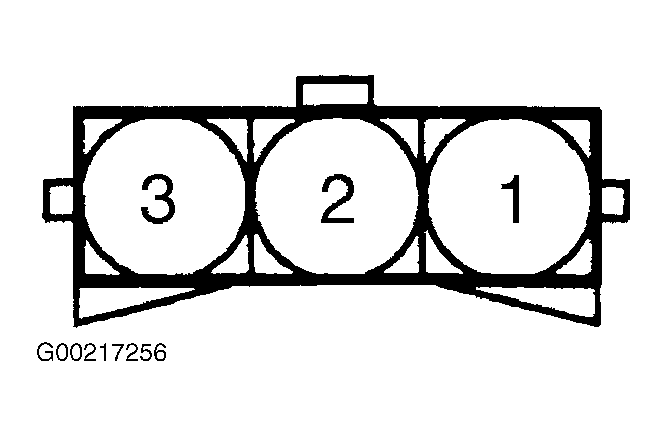

Fig 8: Identifying Idle Speed Control Valve Harness Connector Terminals
G00217256Courtesy of HYUNDAI MOTOR CO.

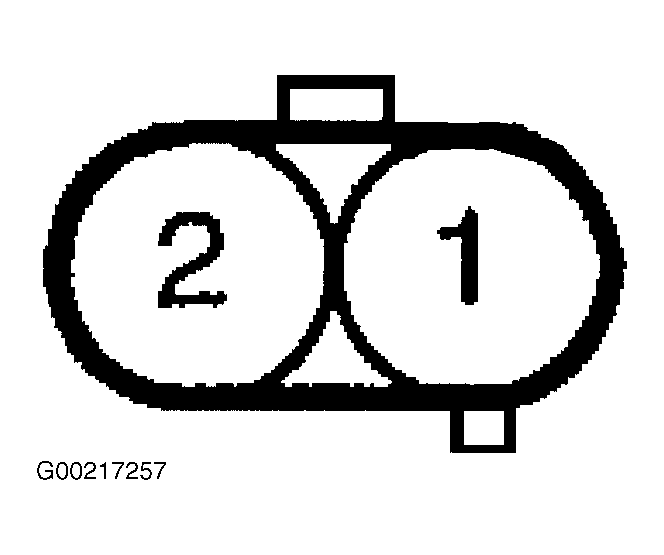

Fig 9: Identifying Ignition Coil No. 1 Harness Connector Terminals
G00217257Courtesy of HYUNDAI MOTOR CO.

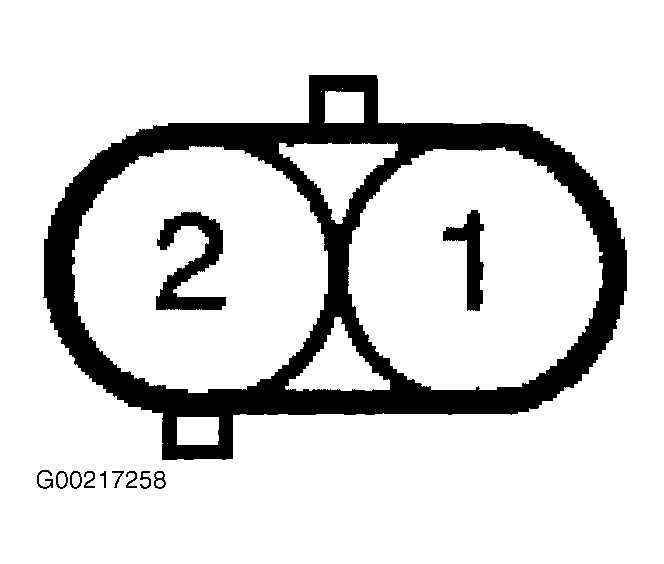

Fig 10: Identifying Ignition Coil No. 2 Harness Connector Terminals
G00217258Courtesy of HYUNDAI MOTOR CO.

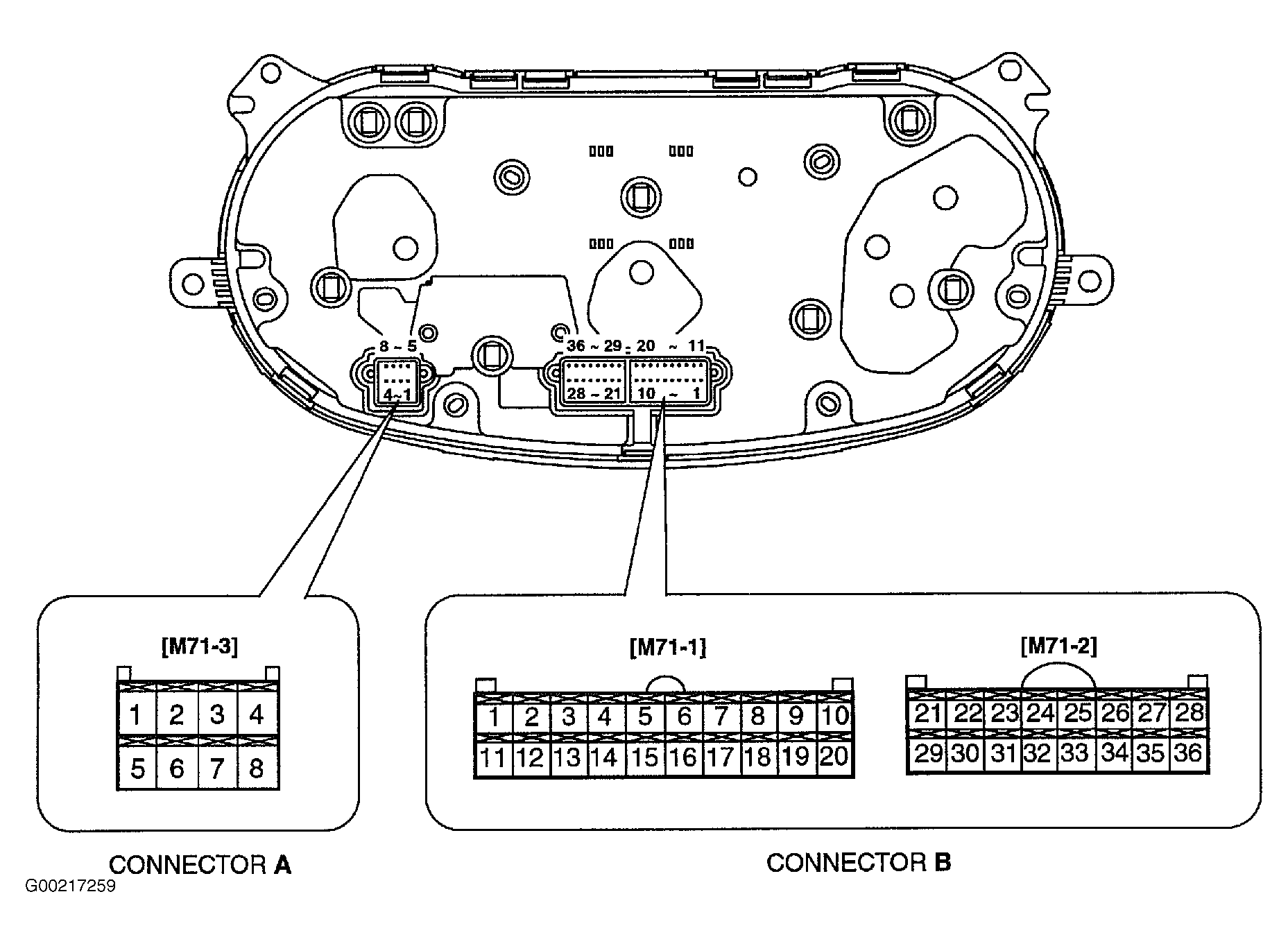

Fig 11: Identifying Instrument Cluster Connectors Terminals
G00217259Courtesy of HYUNDAI MOTOR CO.

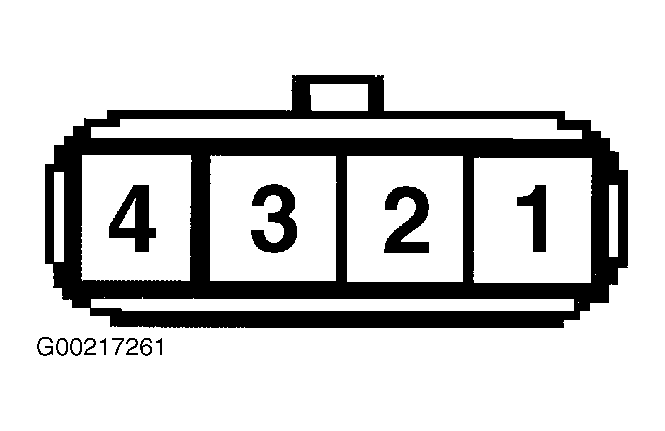

Fig 12: Identifying Intake Air Temperature/Manifold Absolute Pressure Sensor Harness Connector Terminals
G00217261Courtesy of HYUNDAI MOTOR CO.

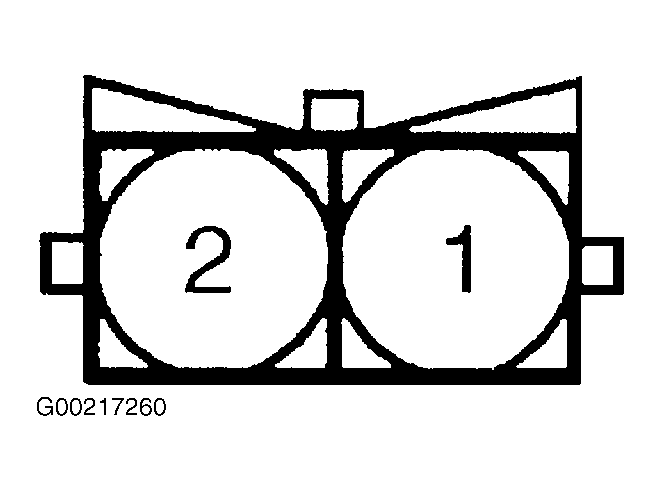

Fig 13: Identifying Knock Sensor Harness Connector Terminals
G00217260Courtesy of HYUNDAI MOTOR CO.

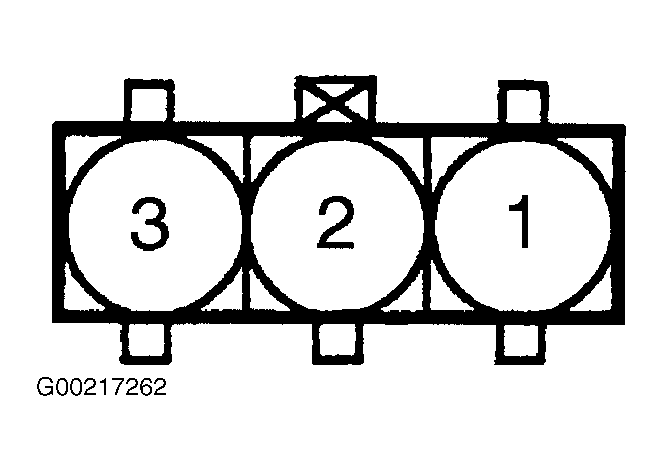

Fig 14: Identifying Throttle Position Sensor Harness Connector Terminals.
G00217262Courtesy of HYUNDAI MOTOR CO.
