Engine Control Module Location

NOTE: Engine Control Module (ECM) may also be referred to as Powertrain Control Module (PCM).

The ECM is located under left side of instrument panel. See Fig 1.

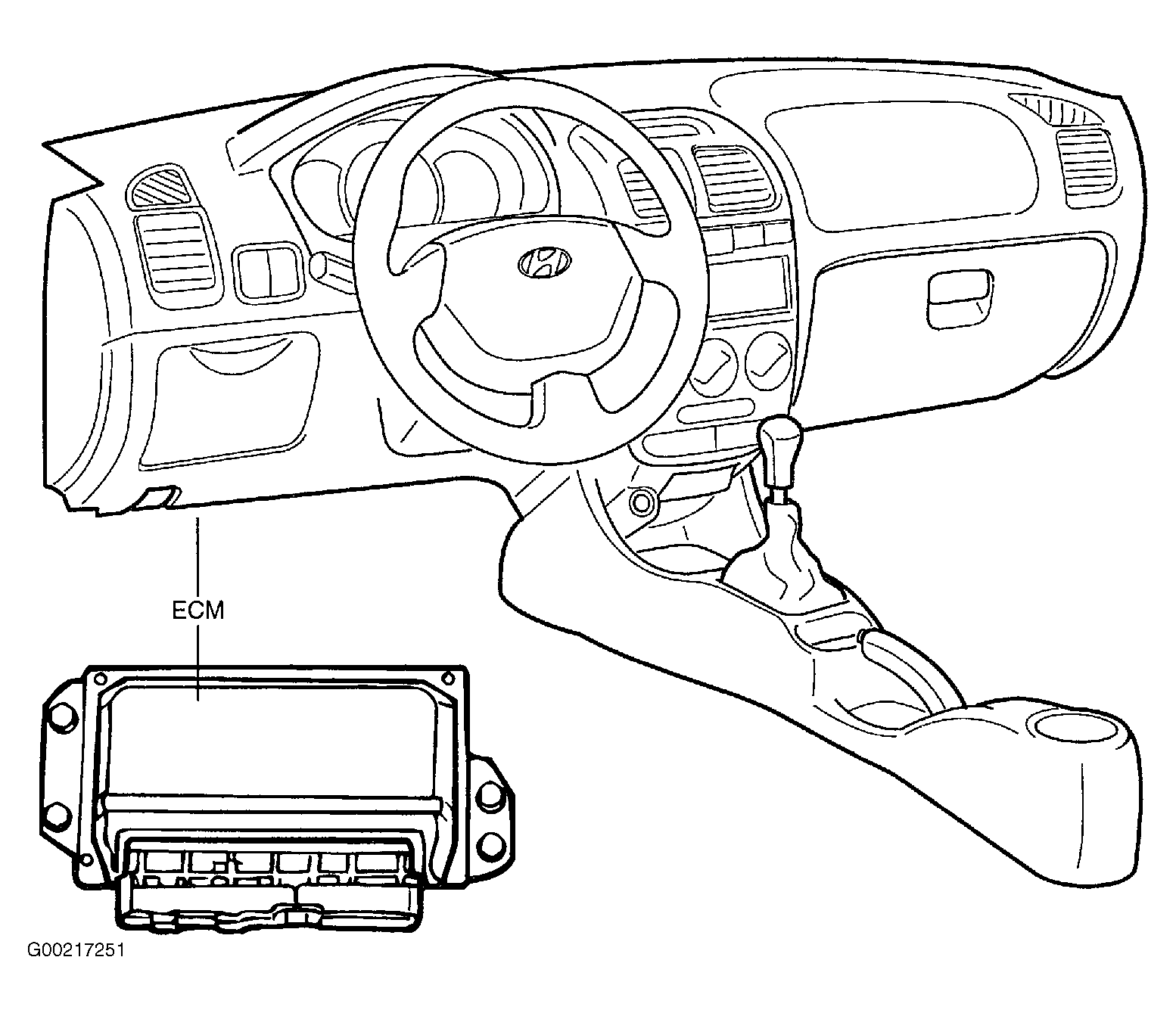

Fig 1: Locating Engine Control Module
G00217251Courtesy of HYUNDAI MOTOR CO.
