Power Steering Hoses: Components

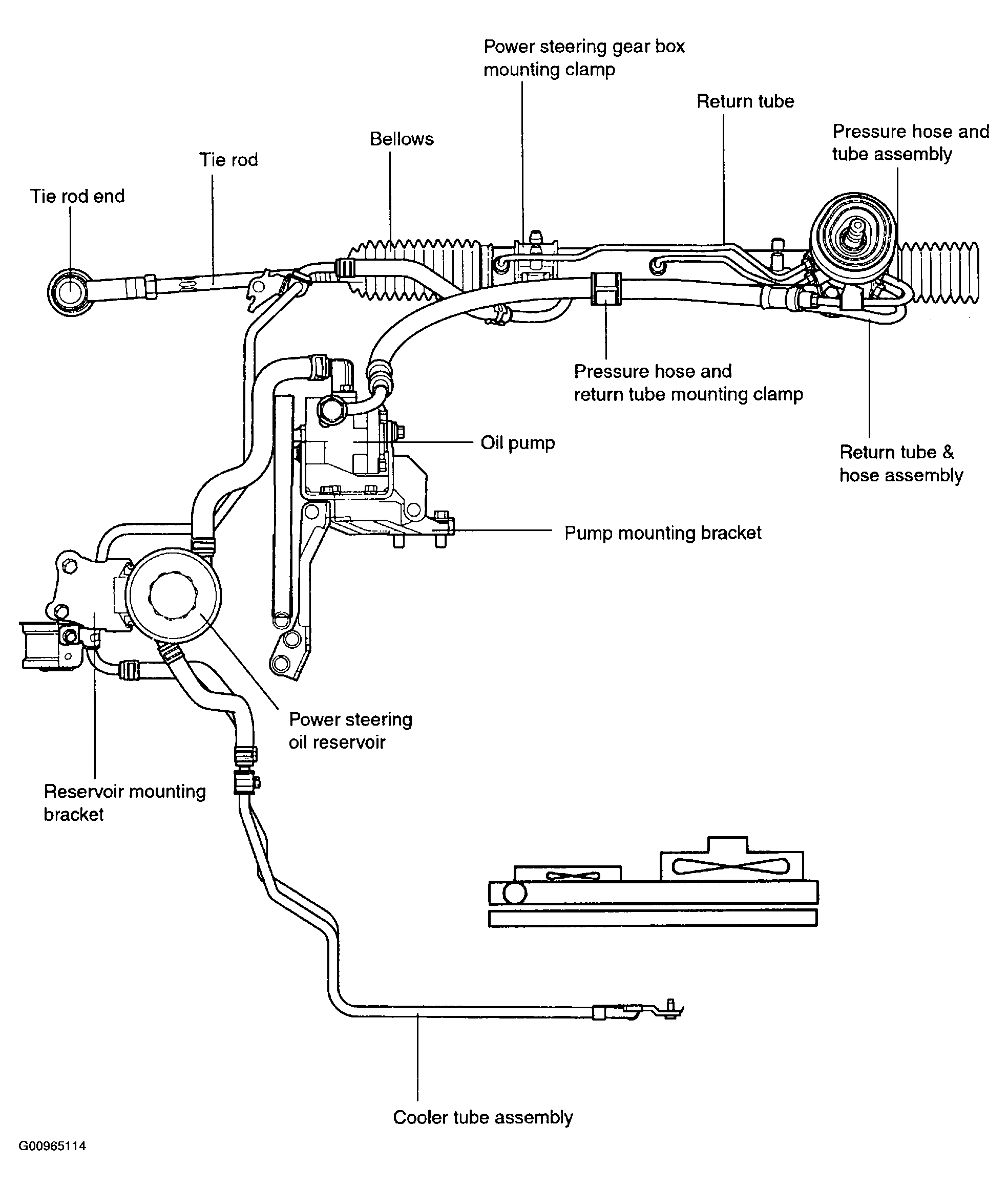

Fig 1: Power Steering Hoses Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
