Power Steering Oil Pump: Installation

  1. After installing the oil pump to the oil pump bracket, install the "V" belt and tighten the bolt adjusting tension to the specified torque.

    Standard value  Oil pump adjusting bolt: 25-33 Nm (250-330 kg.cm, 18-24 lb.ft)

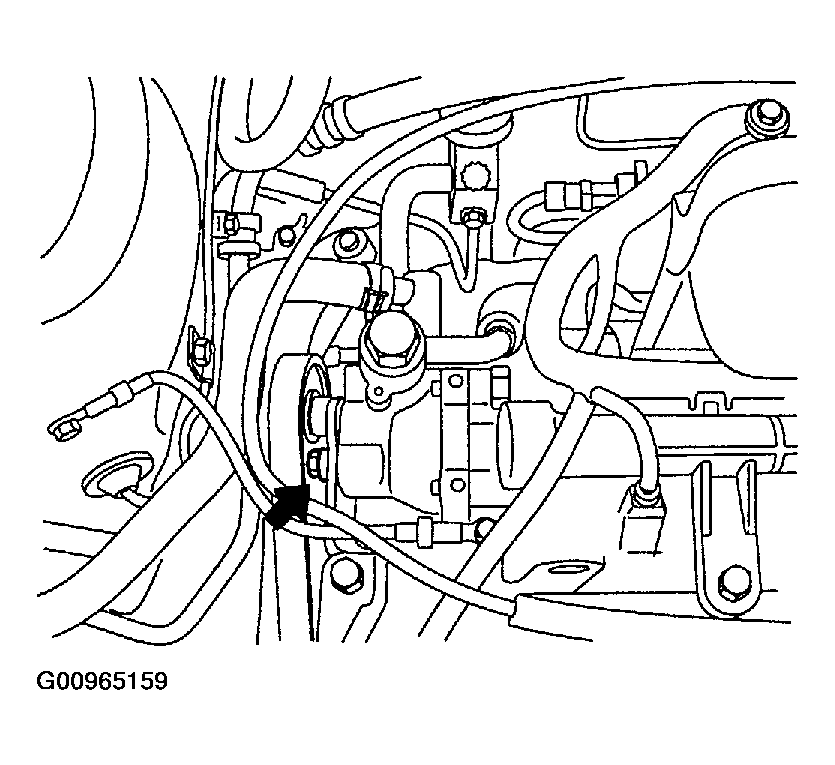

    Fig 1: Identifying "V" Belt Adjusting Bolt
    G00965159Courtesy of HYUNDAI MOTOR CO.
  2. Install the suction hose.
    CAUTION: Install the pressure hose to the oil pump, facing the painted part on the hose toward the oil pump.
  3. Install the pressure hose to the oil pump.
    NOTE: Install the pressure hose being careful so that it does not twist and come in contact with other components.

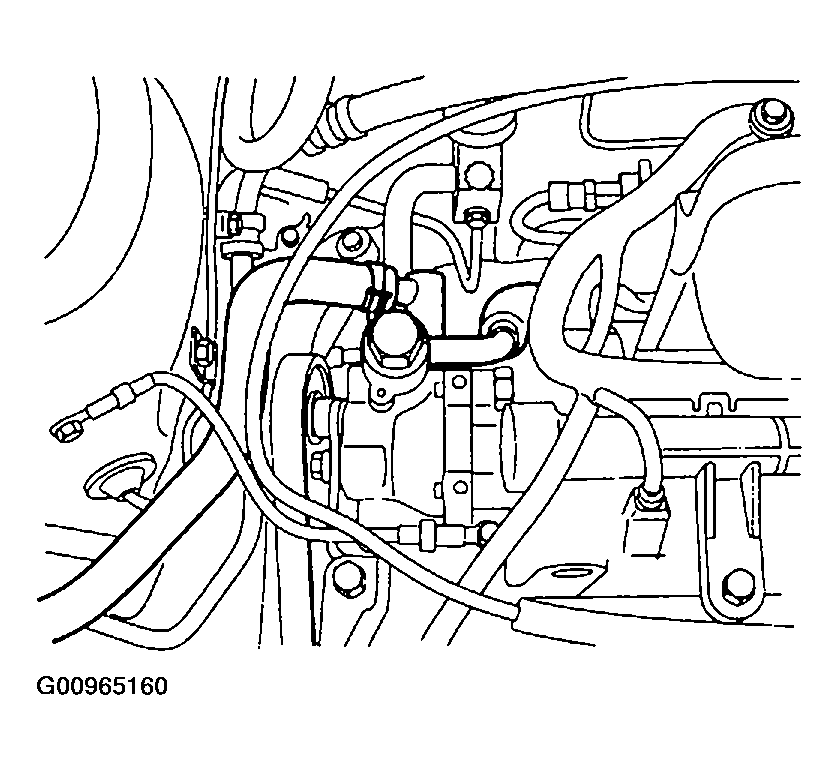

    Fig 2: Installing Pressure Hose To The Oil Pump
    G00965160Courtesy of HYUNDAI MOTOR CO.
  4. Add power steering fluid (PSF-3).
  5. Air bleed the system.
  6. Check the oil pump pressure.
