Repair and Diagnosis: Electrical: Starters: Overhaul: Notes
CAUTION:
DO NOT immerse starter components in cleaning solvent. Immersing yoke and field coil assembly and/or armature will damage insulation. Wipe these components with a cloth only. DO NOT immerse drive unit in cleaning solvent. Overrunning clutch is factory lubricated and solvent will wash lubrication from clutch. Drive unit may be cleaned with a brush moistened with cleaning solvent and wiped dry using a cloth.
NOTE:

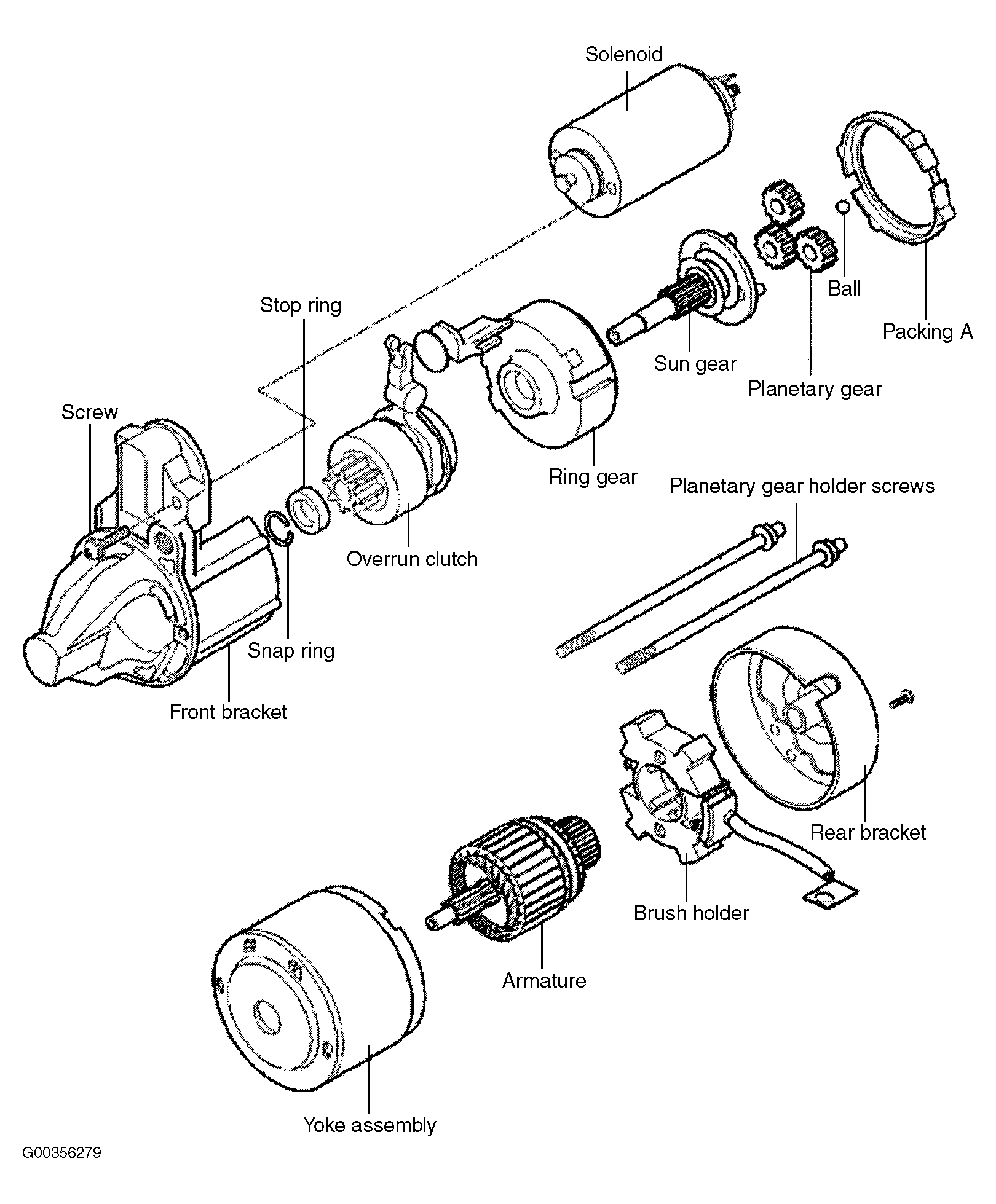

Overhaul procedure not available from manufacturer. For aid in disassembly/assembly refer to exploded view of starter. See Fig 1
.
