Accelerator Pedal: Inspection
- Check the inner and outer cable for damage.
- Check the cable for smooth movement.
- Check the accelerator arm for deformation.
- Check the return spring for deterioration.
- Check the connection of the bushing to end metal fitting.
- Check that the accelerator switch operates properly.

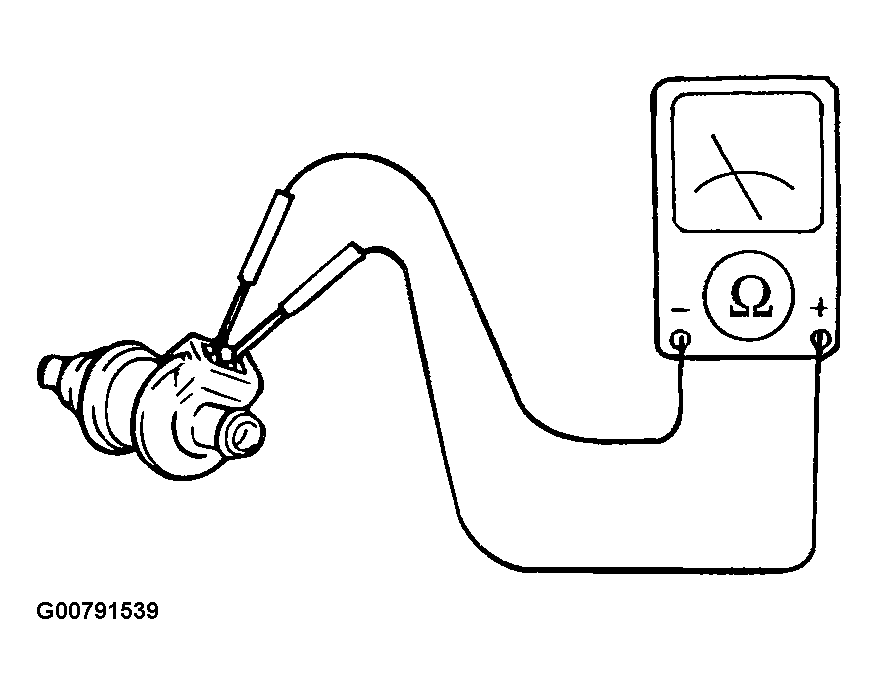

- Measure the resistance of the injectors between the terminals using an ohmmeter.
Resistance: 13-16Ω (at 20°C (68°F))
- If the resistance is not within specification, replace the injector.
