Accelerator Pedal: Installation
- When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.
- Apply sealant to the bolt mounting hole and tighten the accelerator arm bracket.
Tightening torque
Accelerator arm bracket bolts:
8-12 Nm (80-120 kg.cm, 6-7 lb.ft)

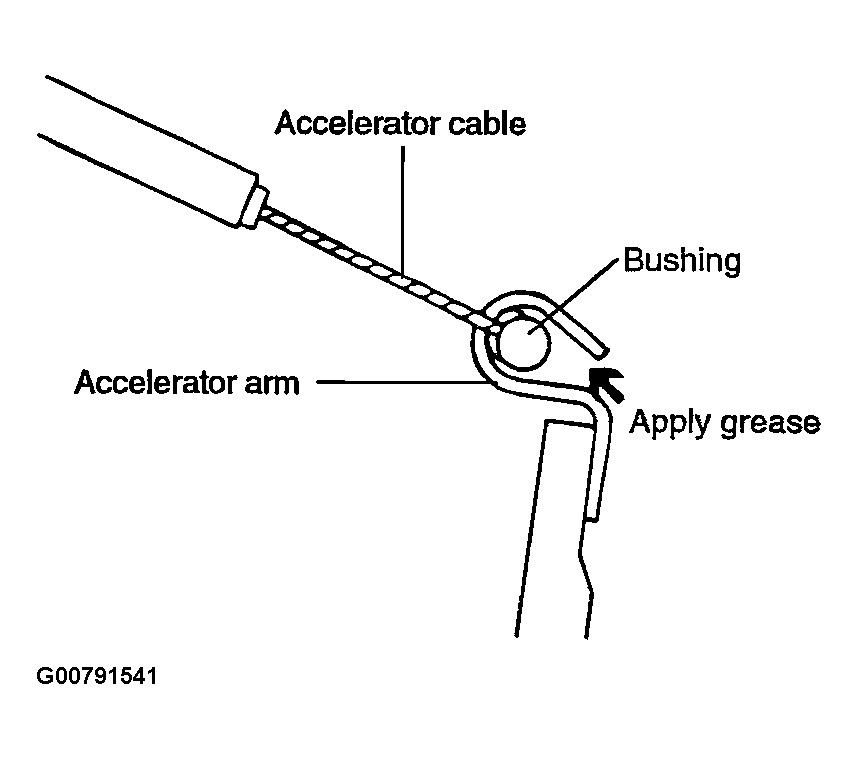

- Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.
