Location Of MFI Components

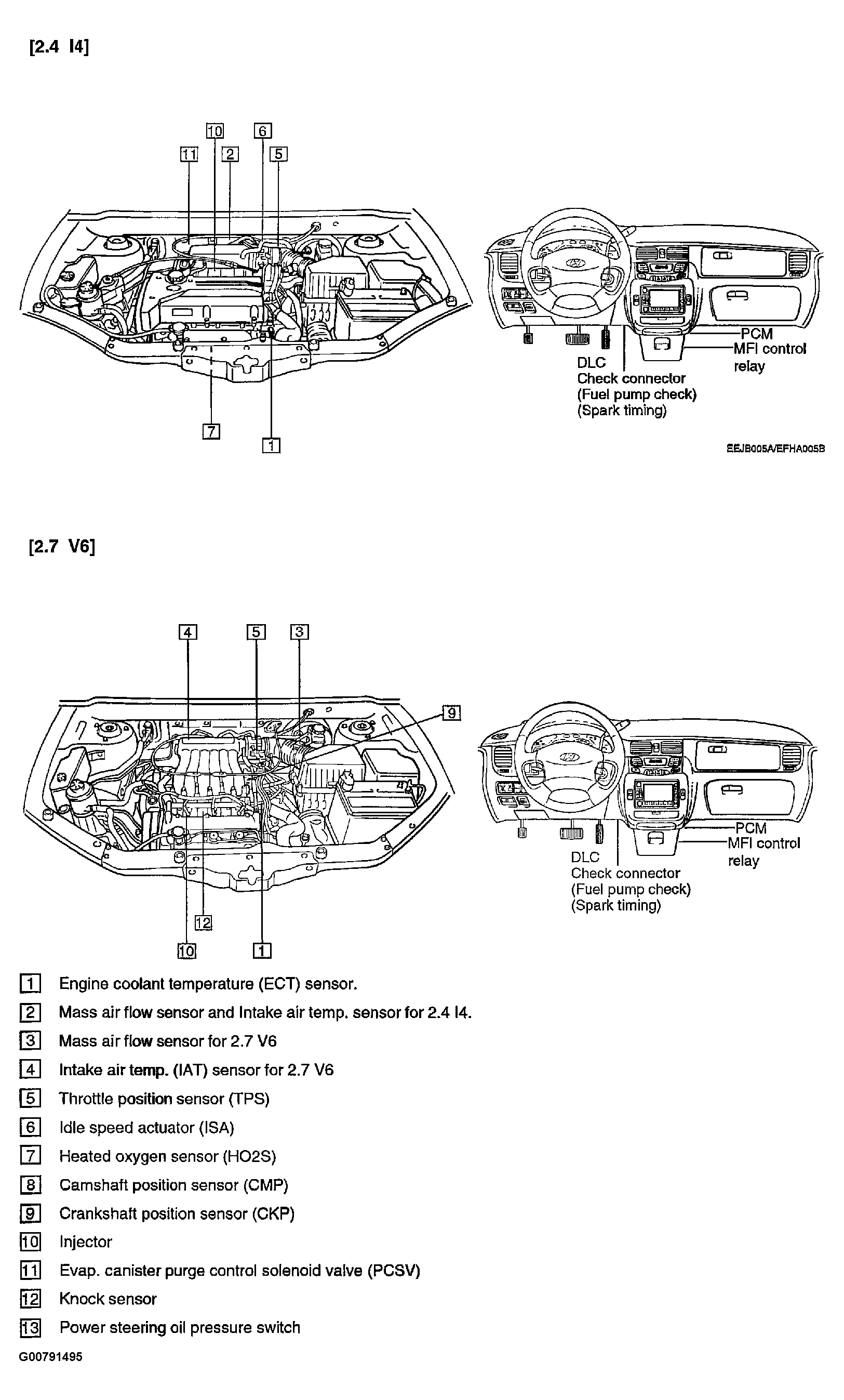

Fig 1: Identifying Location Of MFI Components
G00791495Courtesy of HYUNDAI MOTOR CO.

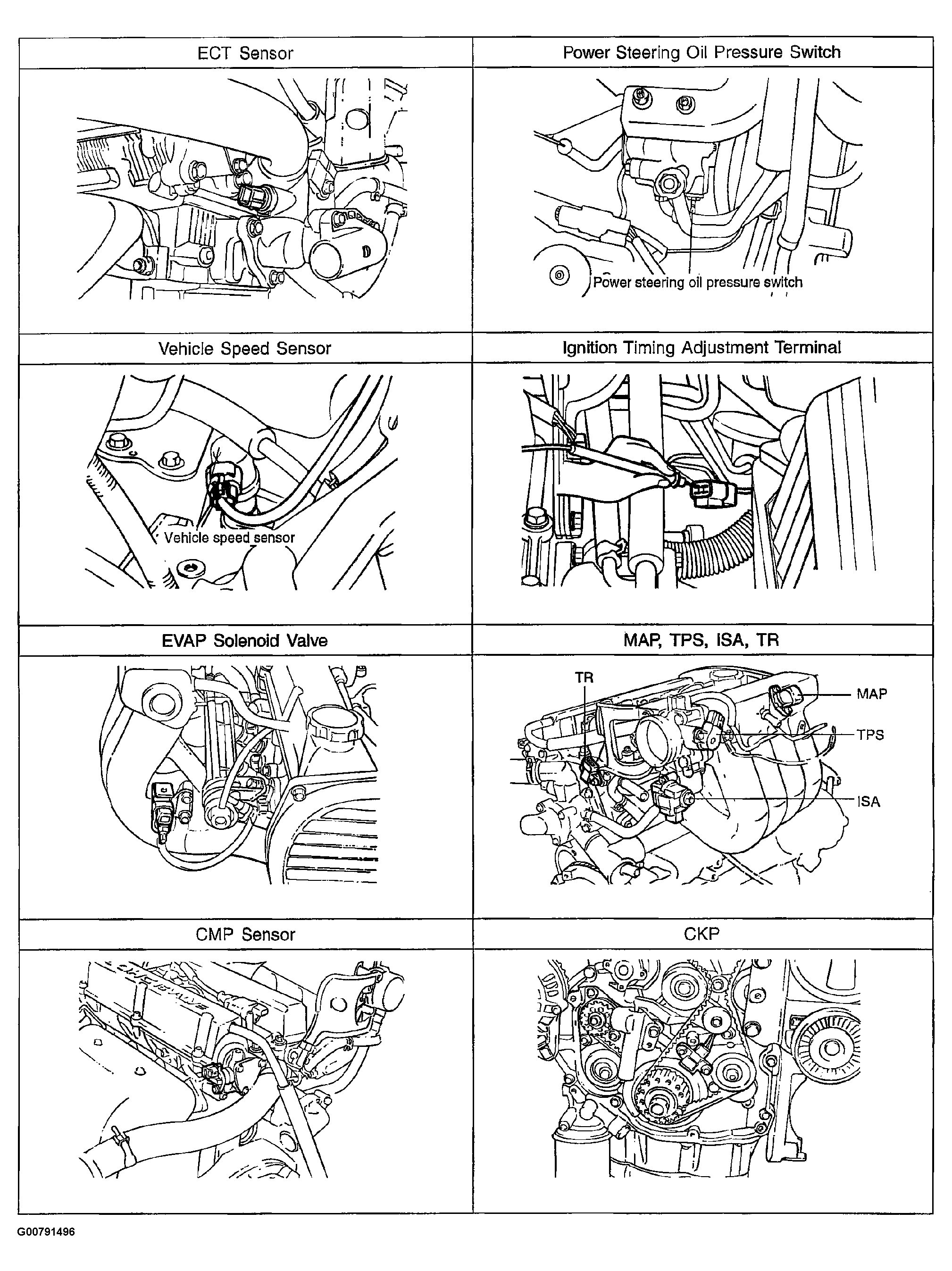

Fig 2: Identifying Components (1 Of 2)
G00791496Courtesy of HYUNDAI MOTOR CO.

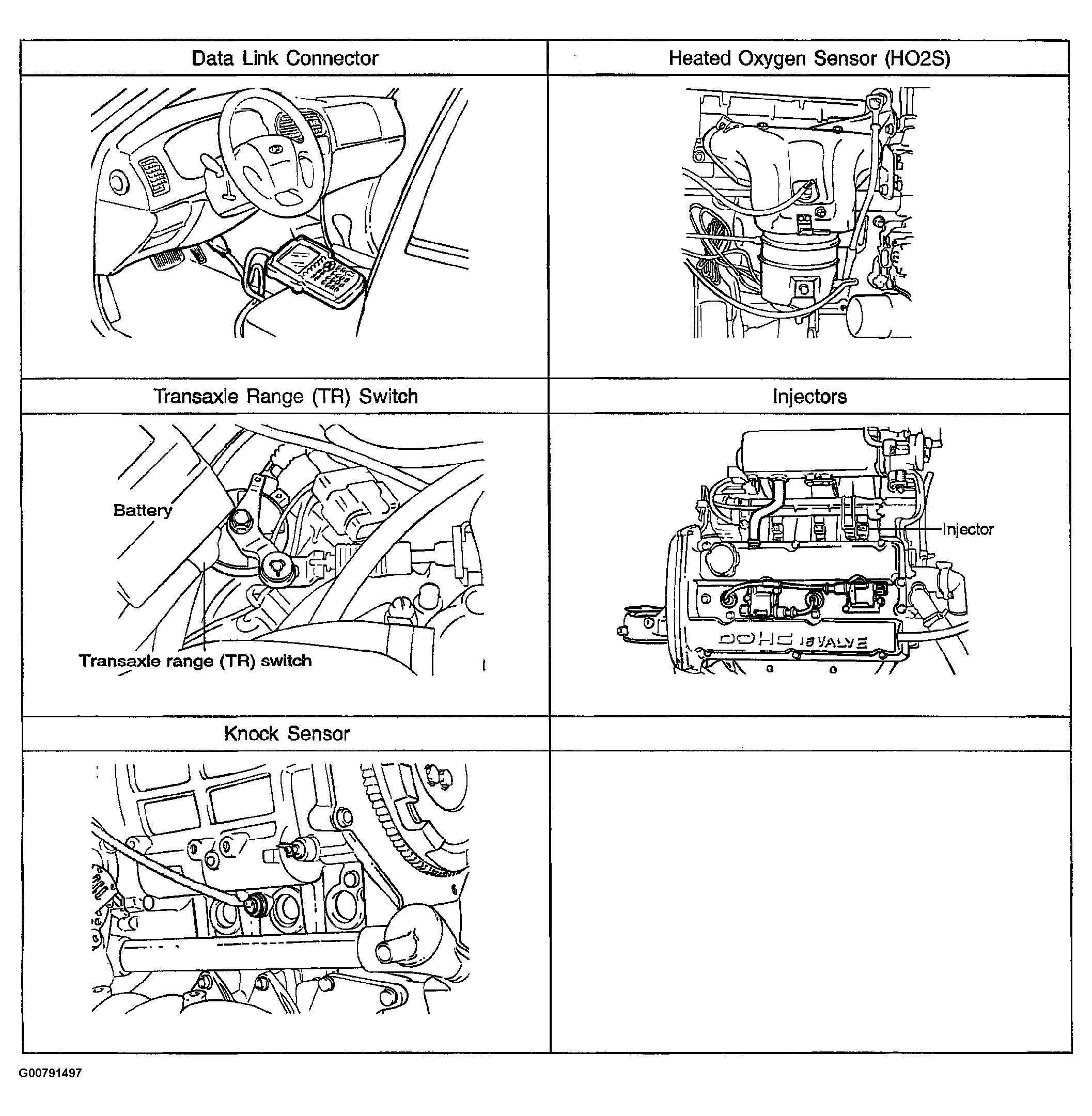

Fig 3: Identifying Components (2 Of 2)
G00791497Courtesy of HYUNDAI MOTOR CO.
