Throttle Position Sensor: Adjustment

  1. Connect a HI-SCAN to the data link connector.
  2. If a HI-SCAN is not used, connect a digital type voltmeter between connector 1 and 3.
  3. Turn the ignition switch to the ON position (do not start engine) and check that the TP Sensor output voltage is as specified. If a HI-SCAN is used, press code No. 14 and read the voltage.

    Standard value: 300~900 mV

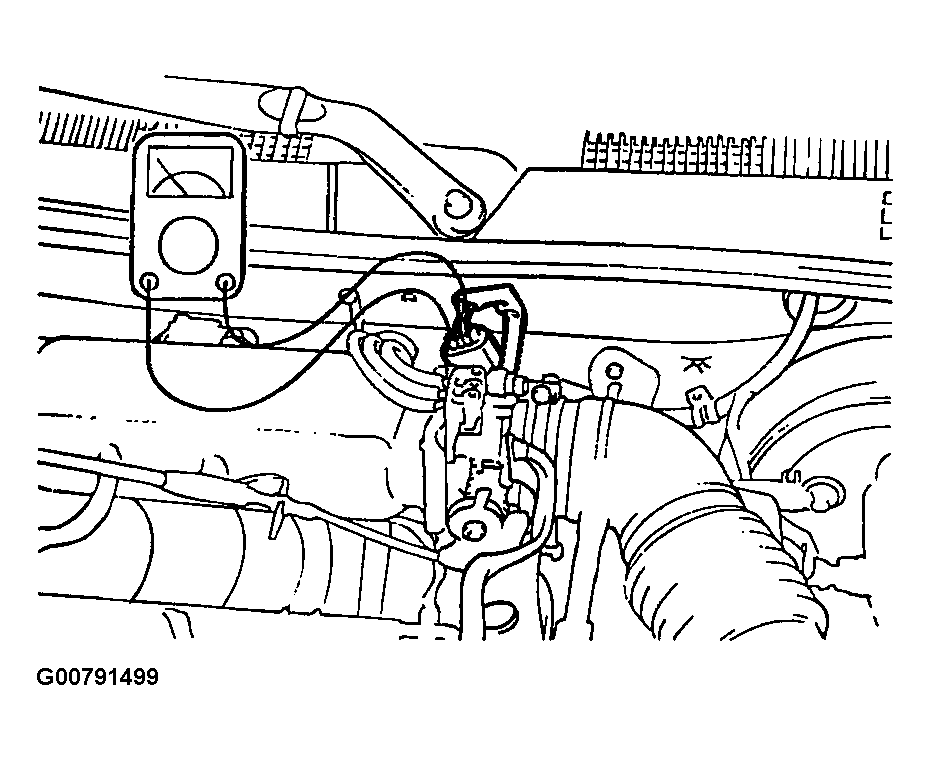

    Fig 1: Checking TP Sensor Voltage
    G00791499Courtesy of HYUNDAI MOTOR CO.
  4. If the voltage is not within the specification, loosen the TPS mounting screws and adjust it by turnings the TPS.
    NOTE:
    • Turning the TP Sensor clockwise increases the output voltage.
    • Tighten the screws securely after adjustment.
  5. Turn the ignition switch to the OFF position.
