Automatic Transaxle Hydraulic Circuit: Third

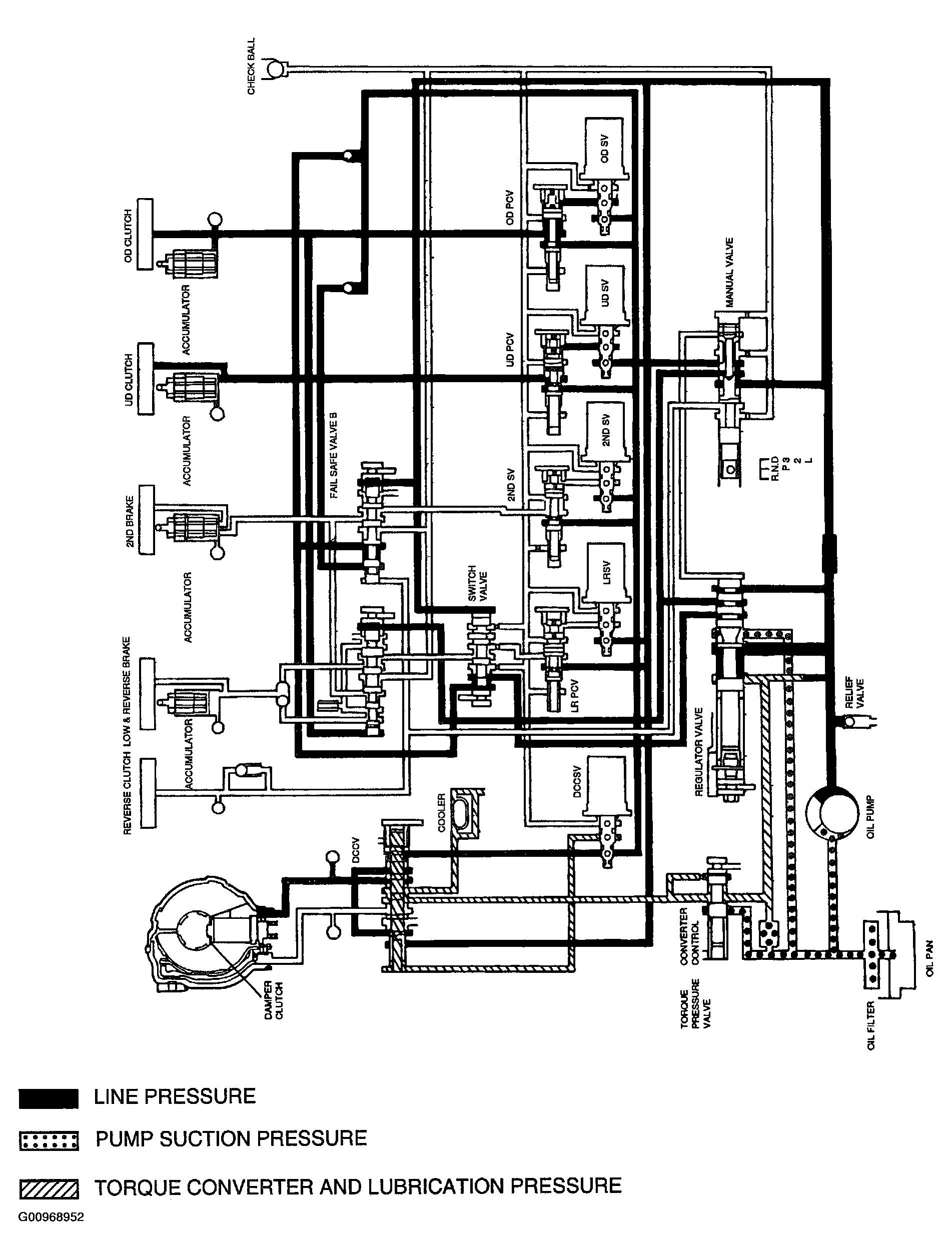

Fig 1: Identifying Hydraulic Circuit In Third Gear

G00968952

Courtesy of HYUNDAI MOTOR CO.
