Procedure To Install The Lock Cam

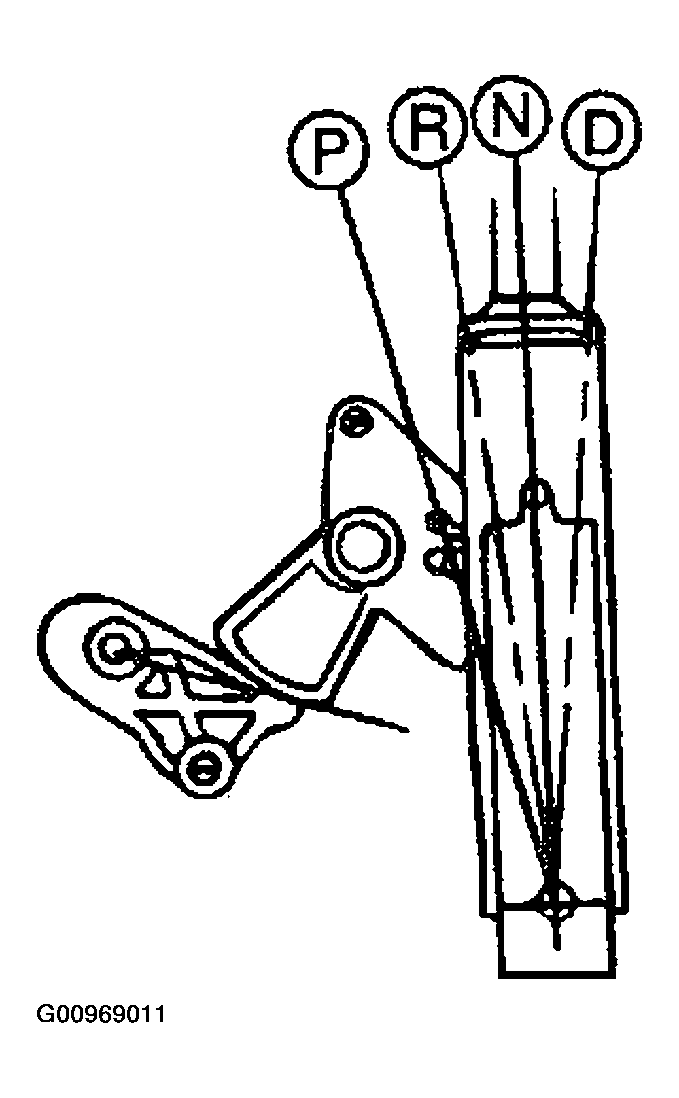

Fig 1: View Of Shift Lever

Courtesy of HYUNDAI MOTOR CO.

Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in the figure.
1. Check that the key lock cam is located at "B" by the detent pin.
2. Check that the shift lock cam is located at "A".

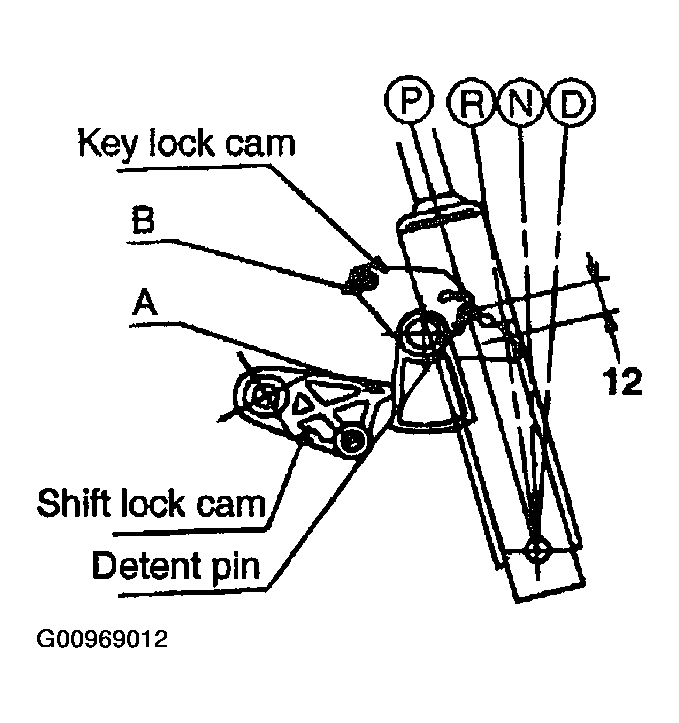

Fig 2: View Of Shift Lever In Park Position
Courtesy of HYUNDAI MOTOR CO.
Check that the key cylinder is at "LOCK".
